Information nozzle-holder
BOSCH
9 430 615 903
9430615903
ZEXEL
105031-3600
1050313600
ISUZU
1153300160
1153300160
Rating:

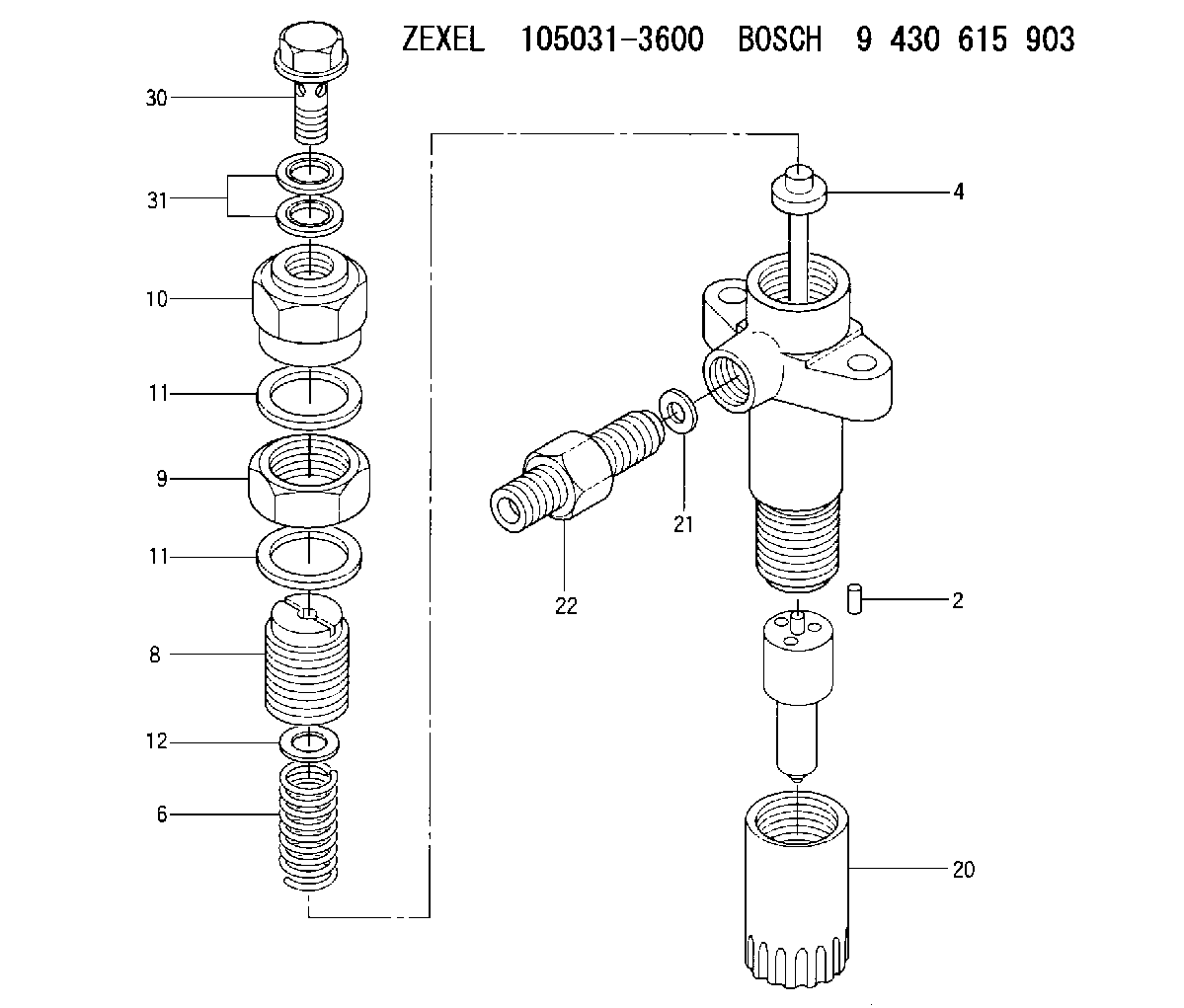

Scheme ###:
| 2. | [2] | 150508-3300 | BEARING PIN |
| 4. | [1] | 150510-9720 | STOP PIN |
| 6. | [1] | 150516-3100 | COMPRESSION SPRING |
| 8. | [1] | 150518-5600 | THREADED PIN |
| 9. | [1] | 150519-3800 | UNION NUT |
| 10. | [1] | 150567-6300 | CAP NUT |
| 11. | [2] | 029332-2030 | GASKET D25.5&22T1 |
| 11. | [2] | 029332-2030 | GASKET D25.5&22T1 |
| 12. | [1] | 029300-8270 | PLAIN WASHER |
| 20. | [1] | 150637-1800 | NOZZLE-RETAINING NUT |
| 21. | [1] | 150602-1700 | GASKET |
| 22. | [1] | 150645-3800 | INLET UNION |
| 30. | [1] | 139808-0000 | EYE BOLT |
| 31. | [2] | 139508-0000 | GASKET D13.2&8.2T1 |
Cross reference number
Zexel num
Bosch num
Firm num
Name
105031-3600
9 430 615 903
1153300160 ISUZU
NOZZLE-HOLDER
* K
* K
Information:
1. Unscrew and remove filter (right hand thread). 2. Clean the filter housing base. Be sure all of old filter gasket is removed. 3. Lubricate the filter gasket with clean diesel fuel and fill the filter with clean diesel fuel. 4. Install the filter. Tighten filter by hand until gasket contacts base; then tighten 1/2 turn more.5. Prime the system. Priming Fuel System:1. Loosen the cap on the tee on top of fuel filter base. 2. Operate starter until the flow of fuel from the filter is continuous and free of bubbles.3. Tighten cap. If engine fails to start, misfires or smokes, further priming is necessary.4. Loosen each fuel line nut one at a time at
