105031-3530 ZEXEL 9 430 615 476 BOSCH NOZZLE-HOLDER ASSEMBLY 9430615476 1050313530




Information nozzle-holder assembly

BOSCH 9 430 615 476 9430615476
ZEXEL 105031-3530 1050313530
105031-3530 NOZZLE-HOLDER ASSEMBLY
Rating:
60
Buy NOZZLE-HOLDER ASSEMBLY 105031-3530 zexel genuine, new aftermarket engine parts with delivery

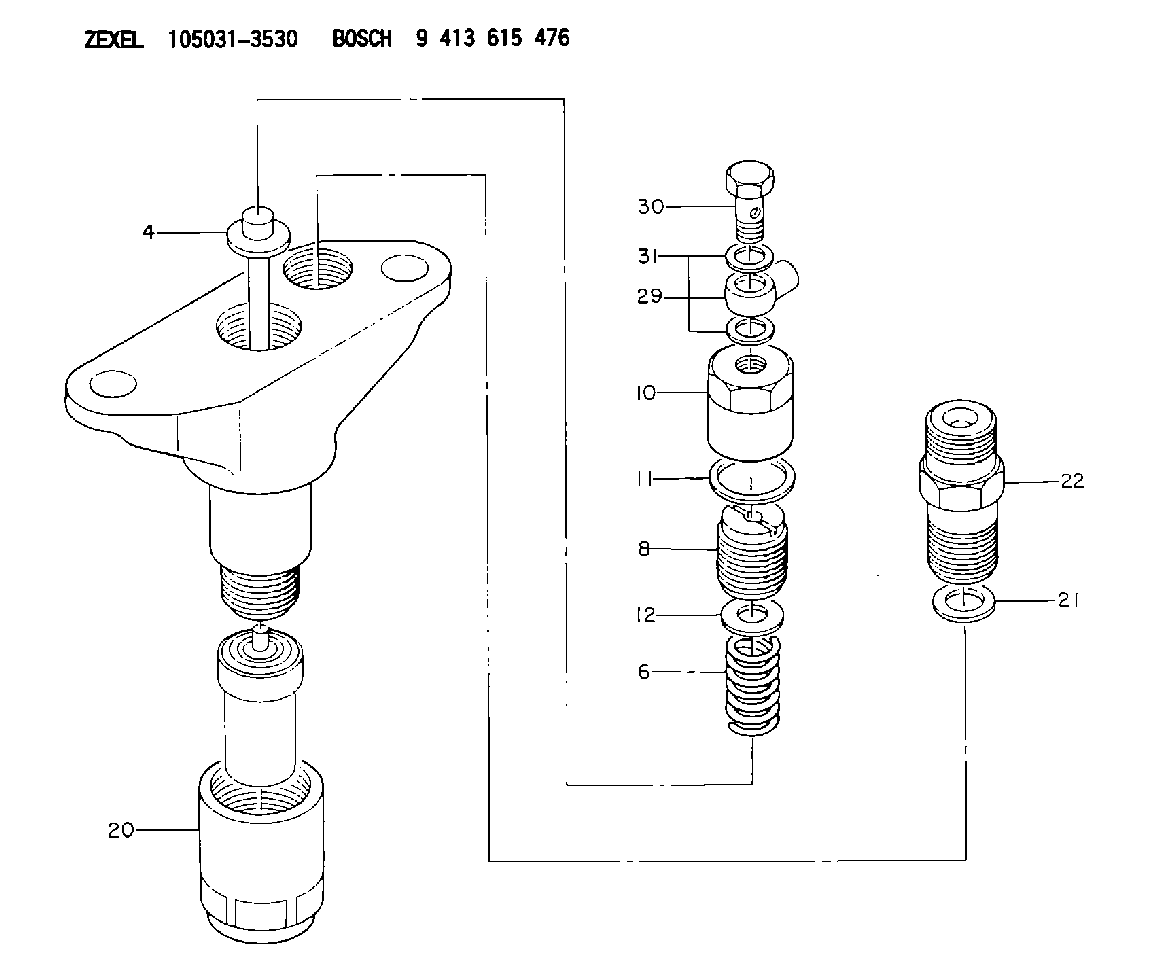

Scheme ###:

4. [1] 150550-3520 STOP PIN
6. [1] 150516-3100 COMPRESSION SPRING
8. [1] 150565-1900 THREADED PIN
10. [1] 150567-2900 CAP NUT
11. [1] 029332-2030 GASKET D25.5&22T1
12. [1] 029300-8270 PLAIN WASHER
20. [1] 150639-8700 NOZZLE-RETAINING NUT
21. [1] 029301-0090 GASKET
22. [1] 150643-5000 INLET UNION
29. [1] 029700-8020 INLET UNION
30. [1] 027608-1720 EYE BOLT
31. [2] 026508-1240 GASKET D11.9&8.2T1

Include in #2:

104140-0080 as NOZZLE-HOLDER

Cross reference number

Zexel num
Bosch num
Firm num
Name
105031-3530
9 430 615 476

NOZZLE-HOLDER ASSEMBLY
K




Information:

This engine has a pressurized cooling system. Coolant is circulated by a belt driven, centrifugal type water pump. A water temperature regulator, located at the left front of the cylinder head, restricts coolant flow through the radiator until the coolant reaches operating temperature.The water pump has two outlets. One outlet directs coolant through a passage in the water temperature regulator housing to the aftercooler, to lower the temperature of inlet air in the inlet manifold. The other water outlet directs coolant through a water manifold in the side of the cylinder block, to cool engine lubricating oil. Coolant flows from the water manifold around the cylinder liners, into the cylinder head and around the precombustion chambers. Both streams of water join at the water temperature regulator. The water cooled air compressor receives coolant through a tube that is connected to the water manifold in the side of the cylinder block. Coolant returns through a tube from the air compressor head to the diesel engine cylinder head.Until the coolant reaches the temperature required to open the temperature regulator, coolant bypasses the radiator and flows directly back to the water pump.When the coolant reaches the temperature required to open the temperature regulator, coolant is then directed through the radiator.A pressure relief cap assembly is used to control the pressure in the cooling system, and prevents loss of coolant through the radiator overflow tube.Pressurizing the cooling system serves two purposes. First, it permits safe operation at coolant temperatures higher than the normal boiling point, providing a margin of cooling for intermittent peak loads. Secondly, it prevents cavitation in the water pump, and reduces the possibility of air or steam pockets forming in the coolant passages. Proper operation of the pressure relief cap assembly is essential. A pressure relief cap allows pressure (and some water, if the cooling system is too full) to escape when the pressure in the cooling system exceeds the capacity of the pressure cap. Loss of pressure will cause steam to form when coolant temperature is above the normal boiling point.Water Pump
The centrifugal-type water pump has two seals, one prevents leakage of water and the other prevents leakage of lubricant.An opening in the bottom of the pump housing, allows any leakage at the water seal or the rear bearing oil seal to escape.Fan
The fan is driven by three V-belts, from a pulley on the crankshaft. Belt tension is adjusted by moving the bracket assembly which includes the fan mounting and pulley.Water Temperature Regulator
The water temperature regulator restricts the flow of coolant through the radiator, until the coolant reaches operating temperature; approximately 165°F (74°C.) The regulator is fully open at approximately 180°F (82°C.)The shunt cooling system is used in many truck installations. The shunt cooling system provides continuous circulation which helps prevent aeration and pump cavitation by maintaining a positive head of water at the pump inlet at all times. It differs from the conventional cooling system in that the radiator top tank is divided into two compartments (upper

Have questions with 105031-3530?





Group cross 105031-3530 ZEXEL

Komatsu

9 430 615 080
6130123110
NOZZLE-HOLDER
9 430 615 266

NOZZLE-HOLDER

Mitsubishi

9 430 615 094
ME036561
NOZZLE-HOLDER
105031-3530
9 430 615 476

NOZZLE-HOLDER ASSEMBLY
9 430 616 211

NOZZLE-HOLDER ASSEMBLY
9 430 615 395

NOZZLE-HOLDER

Isuzu

9 430 615 180
5153300190
NOZZLE-HOLDER
9 430 615 439

NOZZLE-HOLDER ASSEMBLY

Isuzu


5153300210

9 430 616 212


9 430 616 122

NOZZLE-HOLDER ASSEMBLY
9 430 616 213

NOZZLE-HOLDER ASSEMBLY
9 430 616 214

NOZZLE-HOLDER ASSEMBLY
