Information nozzle-holder assembly
BOSCH
9 430 615 455
9430615455
ZEXEL
105031-2570
1050312570
Rating:

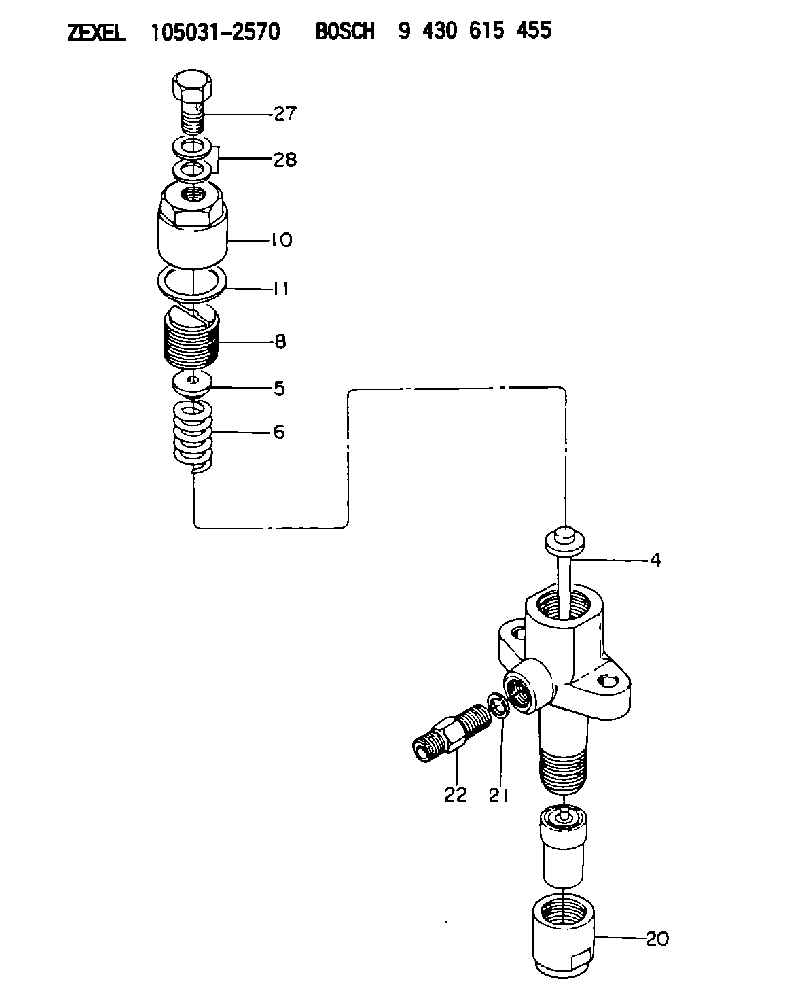

Scheme ###:
| 4. | [1] | 150550-2400 | STOP PIN |
| 5. | [1] | 150515-9000 | SLOTTED WASHER |
| 6. | [1] | 150562-0000 | COMPRESSION SPRING |
| 8. | [1] | 150518-0000 | THREADED PIN |
| 10. | [1] | 150567-0500 | CAP NUT |
| 11. | [1] | 026520-2440 | GASKET D23.9&20.2T1 |
| 20. | [1] | 150639-5200 | NOZZLE-RETAINING NUT |
| 21. | [1] | 150602-1700 | GASKET |
| 22. | [1] | 150643-3000 | INLET UNION |
| 27. | [1] | 150613-1700 | EYE BOLT |
| 28. | [2] | 026508-1240 | GASKET D11.9&8.2T1 |
Cross reference number
Zexel num
Bosch num
Firm num
Name
105031-2570
9 430 615 455
NOZZLE-HOLDER ASSEMBLY
* K 53LZ NOZZLE HOLDER NH NH
* K 53LZ NOZZLE HOLDER NH NH
Information:
Introduction
This technical bulletin pertains to balancing the lubrication to the pin joints on the 994F Wheel Loader.Problem
There is a lack of lubrication to the A-pin.Solution
Increase the amount of grease to the A-pin by decreasing the interval of the lube cycle from 15 minutes (factory setting) to 8 minutes. Decrease the cycle time to 8 minutes by using the VIMS keypad.Adjust the injectors at all other pin joints in order to reduce the grease flow. This will prevent having excess grease at the other pin joints.See the table for each injector setting.
Table 1
Pin Joint Location # Injectors Number of Turns Out Lubricant Volume (in3) Lubricant Volume (mL) mL/Hour
0 0.014 0.2294 0.0000
Hitches (2)
Trunnions (4)
Fan Drive/Belt (2) 8 1 0.022 0.3605 21.6309
F (2)
G (2) 4 2 0.030 0.4916 14.7484
E (2)
Steering Cylinders (4) 6 3 0.038 0.6227 28.0219
B (4)
C (2)
D (2)
K (2)
Y (2) 12 4 0.046 0.7538 67.8424
5 0.054 0.8849 0.0000
6 0.062 1.0160 0.0000
7 0.070 1.1471 0.0000
A (4) 4 8 0.078 1.2782 38.3457
Total mL/Hour 170.5893
This technical bulletin pertains to balancing the lubrication to the pin joints on the 994F Wheel Loader.Problem
There is a lack of lubrication to the A-pin.Solution
Increase the amount of grease to the A-pin by decreasing the interval of the lube cycle from 15 minutes (factory setting) to 8 minutes. Decrease the cycle time to 8 minutes by using the VIMS keypad.Adjust the injectors at all other pin joints in order to reduce the grease flow. This will prevent having excess grease at the other pin joints.See the table for each injector setting.
Table 1
Pin Joint Location # Injectors Number of Turns Out Lubricant Volume (in3) Lubricant Volume (mL) mL/Hour
0 0.014 0.2294 0.0000
Hitches (2)
Trunnions (4)
Fan Drive/Belt (2) 8 1 0.022 0.3605 21.6309
F (2)
G (2) 4 2 0.030 0.4916 14.7484
E (2)
Steering Cylinders (4) 6 3 0.038 0.6227 28.0219
B (4)
C (2)
D (2)
K (2)
Y (2) 12 4 0.046 0.7538 67.8424
5 0.054 0.8849 0.0000
6 0.062 1.0160 0.0000
7 0.070 1.1471 0.0000
A (4) 4 8 0.078 1.2782 38.3457
Total mL/Hour 170.5893
