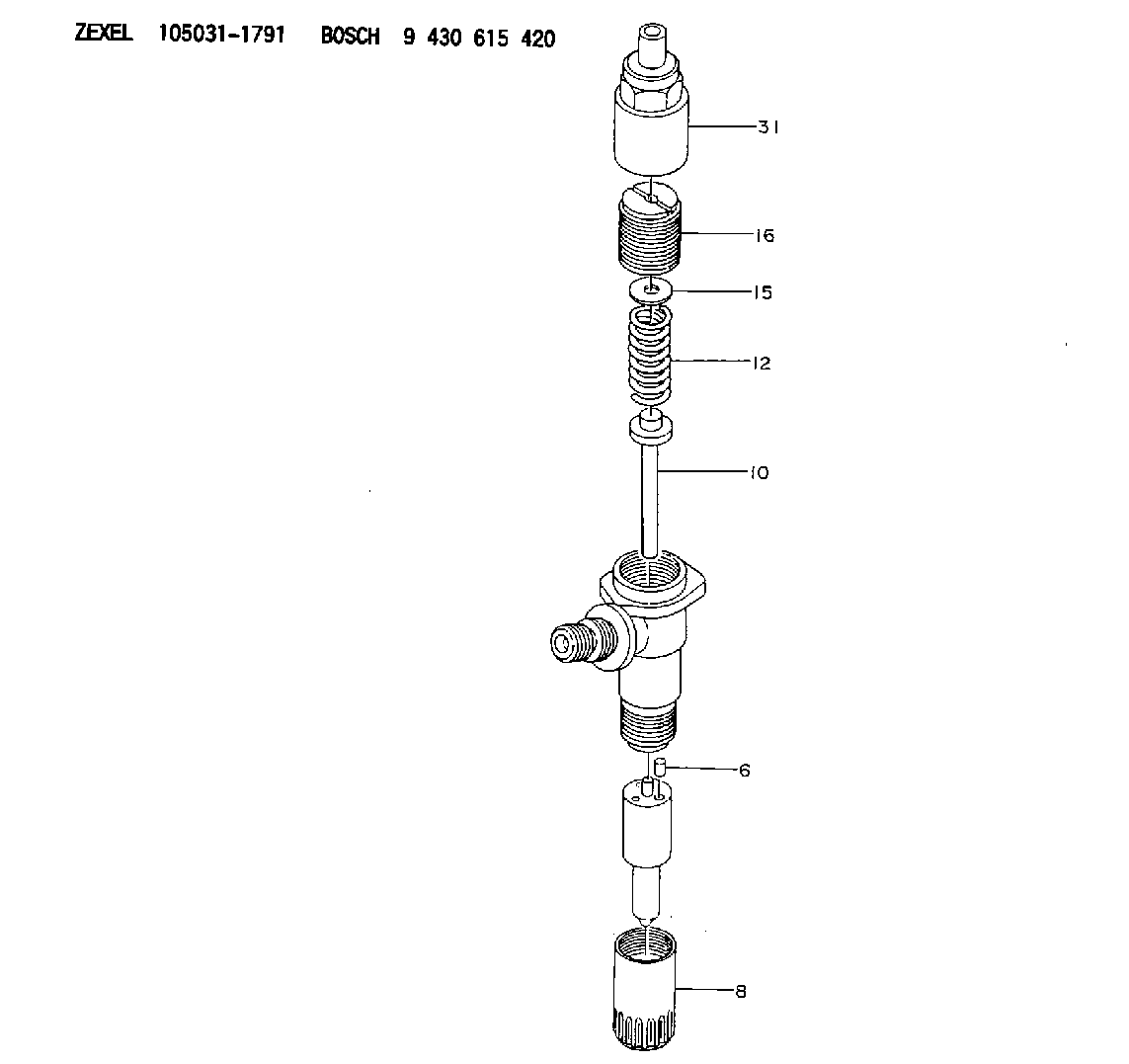

105031-1791 ZEXEL 9 430 615 420 BOSCH NOZZLE-HOLDER 9430615420 1050311791 1153300222

Illustration 1 g01068766
Inlet fuel line (fuel transfer pump to cylinder head) (1) Connector (2) Hose assembly (3) Fuel transfer pump
Remove connector (1) and hose assembly (2) from the fuel transfer pump (3). Refer to Illustration 1. Retain these parts for the reinstallation.
Illustration 2 g01068729
Outlet fuel line (fuel transfer pump to secondary fuel filter) (4) Adapter (5) Tee (6) Elbow (7) Hose assembly
Remove adapter (4), tee (5), elbow (6), and hose assembly (7) from the fuel transfer pump (3). Refer to Illustration 2. Retain these parts for the reinstallation.Note: Modifications to the tools may need to be made in order to reduce interference with engine components. Refer to Illustration 3.
Illustration 3 g01007381
Modified 2P-5494 crowfoot wrench
Illustration 4 g01068745
(3) Fuel transfer pump (8) Bolt (9) Bolt (10) Washer (11) Adapter (15) HEUI pump (21) Clip
Remove the bolt (8) and the clip (21) from the top of the fuel transfer pump. Refer to Illustration 4.
Remove the bolt (9) and the washer (10) from the bottom of the fuel transfer pump (3). Refer to Illustration 4.
Remove fuel transfer pump (3). Refer to Illustration 4.
Illustration 5 g01068776
(12) 45 ° adapter (13) Hose assembly (14) Straight connector (15) HEUI pump
Remove hose assembly (13) from 45 degree adapter (12) and straight connector (14) by using removal tool (A). Refer to Illustration 5.
Remove 45 degree adapter (12) from the HEUI pump (15). Remove straight adapter (14) from the cylinder head. Discard the parts. Refer to Illustration 5.Installation of the Engine Oil Lines Group
Illustration 6 g01068779
(16) 247-3755 Tube As (17) 6V-8636 Connector (18) 221-3494 O-Ring Seal (19) 214-7568 O-Ring Seal (20) 6V-8724 Elbow
Apply a light coat of oil to the O-rings (18) and (19) during installation. Install the O-ring (18) on
