105031-1690 ZEXEL 9 430 615 801 BOSCH NOZZLE-HOLDER ASSEMBLY 9430615801 1050311690

Information nozzle-holder assembly

BOSCH 9 430 615 801 9430615801

ZEXEL 105031-1690 1050311690

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy NOZZLE-HOLDER ASSEMBLY 105031-1690 zexel genuine, new aftermarket engine parts with delivery

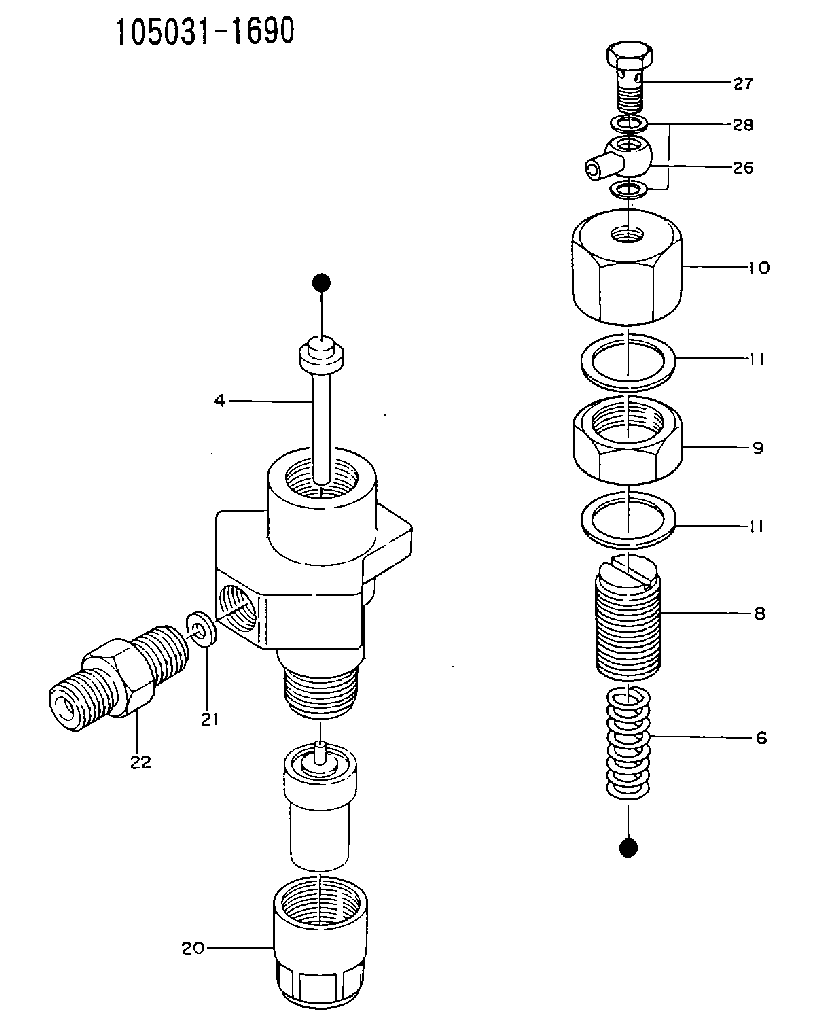

Scheme ###:

4.	[1]	150550-1220	STOP PIN
6.	[1]	150516-9300	COMPRESSION SPRING
8.	[1]	150518-1900	THREADED PIN
9.	[1]	150519-0600	UNION NUT
10.	[1]	150567-4800	CAP NUT
11.	[2]	029332-2010	GASKET
11.	[2]	029332-2010	GASKET
20.	[1]	150639-8700	NOZZLE-RETAINING NUT
21.	[1]	029300-5070	GASKET D12&5T1
22.	[1]	150603-5200	INLET UNION
26.	[1]	029700-8020	INLET UNION
27.	[1]	029730-8170	EYE BOLT
28.	[2]	026508-1240	GASKET D11.9&8.2T1

Include in #1:

103672-0040 as NOZZLE-HOLDER

103672-0070

106652-4050

106652-4060

Cross reference number

Zexel num

Bosch num

Firm num

Name

105031-1690

9 430 615 801

NOZZLE-HOLDER ASSEMBLY
K 53LZ NOZZLE HOLDER NH NH
