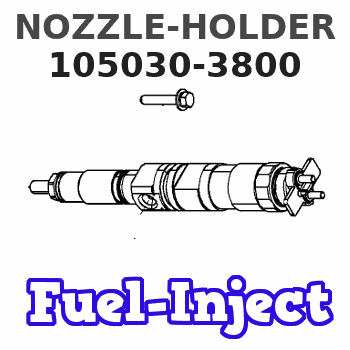

105030-3800 ZEXEL 9 430 616 322 BOSCH NOZZLE-HOLDER 9430616322 1050303800 236202970a

Information nozzle-holder

BOSCH 9 430 616 322 9430616322

ZEXEL 105030-3800 1050303800

HINO 236202970A 236202970a

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy NOZZLE-HOLDER 105030-3800 zexel genuine, new aftermarket engine parts with delivery

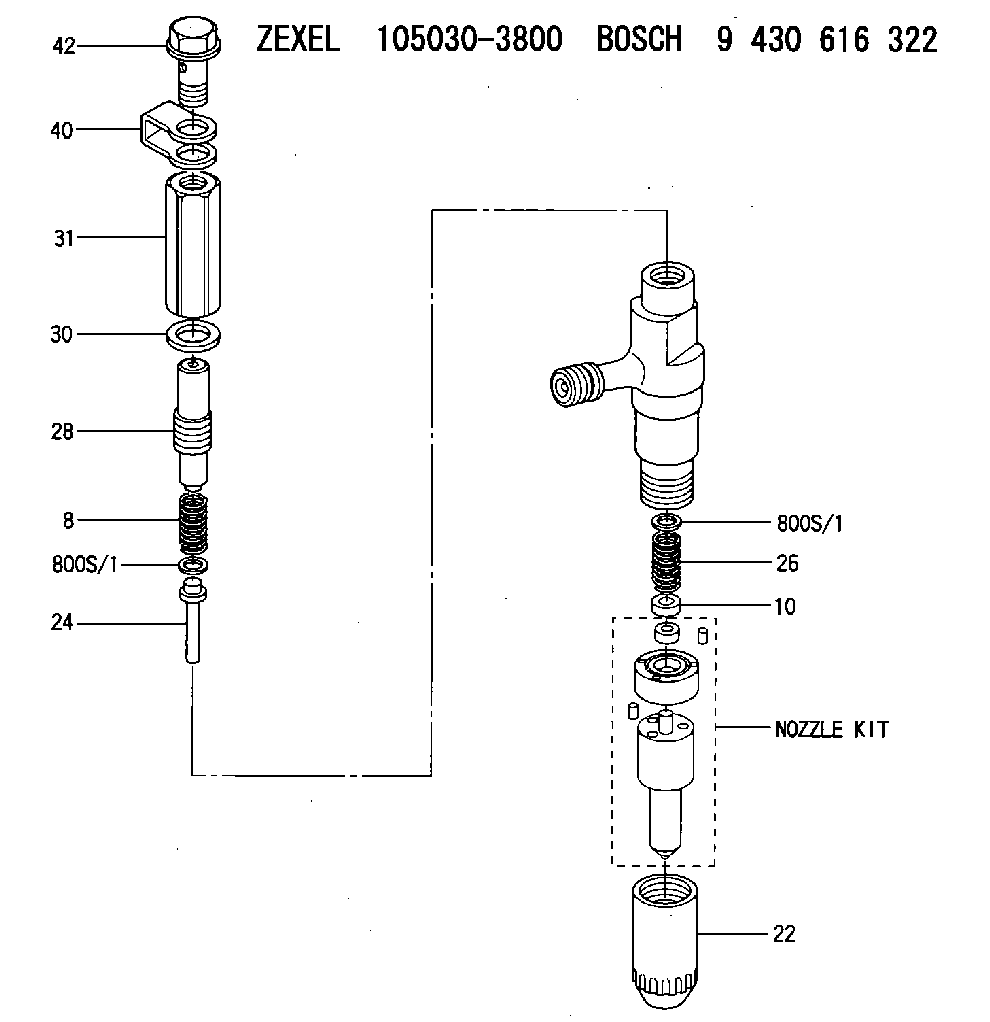

Scheme ###:

8.	[1]	150562-4400	COMPRESSION SPRING
10.	[1]	150560-1601	SLOTTED WASHER
16.	[2]	150525-1701	BEARING PIN
19.	[2]	150508-3300	BEARING PIN
22.	[1]	150652-0900	NOZZLE-RETAINING NUT
24.	[1]	150550-5700	STOP PIN
26.	[1]	150562-4400	COMPRESSION SPRING
28.	[1]	150565-7000	THREADED PIN
30.	[1]	029331-4130	GASKET
31.	[1]	150567-9601	CAP NUT
40.	[1]	150623-6100	GASKET
42.	[1]	150613-1501	EYE BOLT
800S/1.	[1]	150538-4900	SHIM D9.5&4.5T0.40
800S/1.	[1]	150538-5000	SHIM D9.5&4.5T0.50
800S/1.	[1]	150538-5100	SHIM D9.5&4.5T0.52
800S/1.	[1]	150538-5200	SHIM D9.5&4.5T0.54
800S/1.	[1]	150538-5300	SHIM D9.5&4.5T0.56
800S/1.	[1]	150538-5300	SHIM D9.5&4.5T0.56
800S/1.	[1]	150538-5400	SHIM D9.5&4.5T0.58
800S/1.	[1]	150538-5500	SHIM D9.5&4.5T0.60
800S/1.	[1]	150538-5600	SHIM D9.5&4.5T0.70
801S/1.	[1]	150575-0000	LIFT PIECE T2.860
801S/1.	[1]	150575-0200	LIFT PIECE T2.870
801S/1.	[1]	150575-0400	LIFT PIECE T2.880
801S/1.	[1]	150575-0600	LIFT PIECE T2.890
801S/1.	[1]	150575-0800	LIFT PIECE T2.900
801S/1.	[1]	150575-1000	LIFT PIECE T2.910
801S/1.	[1]	150575-1200	LIFT PIECE T2.920
801S/1.	[1]	150575-1400	LIFT PIECE T2.930
801S/1.	[1]	150575-1600	LIFT PIECE T2.940
801S/1.	[1]	150575-1800	LIFT PIECE T2.950
801S/1.	[1]	150575-2000	LIFT PIECE T2.960
801S/1.	[1]	150575-2200	LIFT PIECE T2.970
801S/1.	[1]	150575-2400	LIFT PIECE T2.980
801S/1.	[1]	150575-2600	LIFT PIECE T2.990
801S/1.	[1]	150575-2800	LIFT PIECE T3.000
801S/1.	[1]	150575-3000	LIFT PIECE T3.010
801S/1.	[1]	150575-3200	LIFT PIECE T3.020
801S/1.	[1]	150575-3400	LIFT PIECE T3.030
801S/1.	[1]	150575-3600	LIFT PIECE T3.040
801S/1.	[1]	150575-3800	LIFT PIECE T3.050
801S/1.	[1]	150575-4000	LIFT PIECE T3.060
801S/1.	[1]	150576-3000	LIFT PIECE
801S/1.	[1]	150576-3200	LIFT PIECE
801S/1.	[1]	150576-3400	LIFT PIECE
801S/1.	[1]	150576-3600	LIFT PIECE
801S/1.	[1]	150576-3800	LIFT PIECE
801S/1.	[1]	150576-4000	LIFT PIECE

Cross reference number

Zexel num

Bosch num

Firm num

Name

105030-3800

9 430 616 322

236202970A HINO

NOZZLE-HOLDER
K 53LZ NOZZLE HOLDER NH NH

Information:

PROBLEM
The existing diesel exhaust fluid manifold can fail on certain 2570D, 2670D, 563D, and 573D Wheel Feller Bunchers, and 525D, 535D, 545D, and 555D Wheel Skidders. If the existing DEF manifold fails it can lead to inducements and eventual engine shutdown.
AFFECTED PRODUCT
Model Identification Number
2570D D2500112-00114
2670D D2600208-00211
525D GKP00477-00524, 527
535D MTP00386-00448, 450-453
545D KGP00254-00284, 287
555D PGY00153-00159
563D D6300115-00146
573D D7300209-00226
PARTS NEEDED
Qty
Part Number Description
1 3915262 GASKET
1 5280527 MANIFOLD GP
1 DCUSOFTWARE DCU SOFTWARE
1 ENGSOFTWARE ENGINE SOFTWARE
In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 29% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
ACTION REQUIRED
Update the Engine and DCU software files to the latest available in SIS Web. Replace the existing diesel exhaust fluid manifold with the 528-0527 diesel exhaust fluid manifold. Use a new 391-5262 gasket when installing a new manifold.
SERVICE CLAIM ALLOWANCES
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
0-6000 hrs,
0-36 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
6001-8000 hrs,
37-48 mo 33.0% 50.0% 0.0% 0.0% 50.0% 50.0%
This is a 2.0-hour job
PARTS DISPOSITION
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.

Have questions with 105030-3800?

Group cross 105030-3800 ZEXEL

Hino

105030-3800

9 430 616 322

236202970A

NOZZLE-HOLDER
