Information nozzle
BOSCH
9 432 611 550
9432611550
ZEXEL
105025-0430
1050250430
HINO
236402291A
236402291a
Rating:
Compare Prices: .
As an associate, we earn commssions on qualifying purchases through the links below

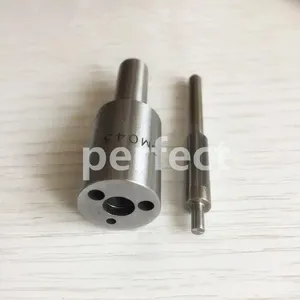

iDEESEEL Injector Nozzles DLLA152SM043 / 105025-0430 / NP-DLLA152SM043 / 9 432 611 062
Generic
Generic
DLLA153SM029 DLLA157SM036 DLLA160SM037 DLLA152SM043 DLLA155SM049 DLLA155SM050 Diesel fuel injection nozzle DLLA156SM058 - (Color: DLLA157SM036)
Generic Color: DLLA157SM036 || Is customized: yes || Material type: steel || Item length: standard || Origin: Mainland China
Generic Color: DLLA157SM036 || Is customized: yes || Material type: steel || Item length: standard || Origin: Mainland China
12PCS Fuel Injector Nozzle DLLA152SM043 1050250430 Replacement Parts
ULHFTYR 1. 12PCS Fuel Injector Nozzle DLLA152SM043 1050250430 Replacement Parts || 2. Flexible and easy to use || 3. Manufacturing according to strict quality control standards || 4. Not easily damaged and has a long service life || 5. Stable performance, high reliability, and can replace old equipment
ULHFTYR 1. 12PCS Fuel Injector Nozzle DLLA152SM043 1050250430 Replacement Parts || 2. Flexible and easy to use || 3. Manufacturing according to strict quality control standards || 4. Not easily damaged and has a long service life || 5. Stable performance, high reliability, and can replace old equipment
Cross reference number
Zexel num
Bosch num
Firm num
Name
Information:
This Program must be administered as soon as possible. When reporting the repair, use "PI3330" as the Part Number, "7751" as the Group Number, "56" as the Warranty Claim Description Code and "T" as the SIMS Description Code. Exception: If the repair is done after failure, use "PI3330" as the Part Number, "7751" as the Group Number, "96" as the Warranty Claim Description Code, and "Z" as the SIMS Description Code.
Completion Date
March 31, 2000Termination Date
September 30, 2000Problem
The torque of the injector electronic solenoid valves need to be checked. The valve has four Torx bolts that hold the stator to the housing. If these bolts are not properly tightened, fuel can leak into the oil.
Affected Product
Model & Identification Number
D11R (9TR441-442)
776D (5ER126, 5ER127)
785C (1HW122)
793C (4GZ165-167)
777D (3PR1058, 3PR1057, 3PR1061, 3PR1059, 3PR1060, 3PR1063)
3508B (3DM157-159 4GM426-439 6PN532-533 , 6PN535-536, 6PN539-540, 6PN542-543 5PS225-234 2HW125-126 1FZ366-370 )
3512 (6PM38-39 3MS186 3RS329 )
3512B (8EM317-318 8RM395-397 4TM215-217 3ZW131-134 6WN349-356 )
3516 (7KM50-51 3SS306-307 )
3516B (6HN384, 6HN390, 6HN392, 6HN394, 6HN398 7RN818-819 , 7RN821, 7RN824, 7RN826-827, 7RN833, 7RN836-840, 7RN850, 7RN852 8KN368-369 , 8KN372, 8KN373 7TR818 4BW333-334 )
Parts Needed
Dealers will not need to order parts for this Program.
Action Required
See the attached procedure.
Owner Notification
U.S. and Canadian owners will receive the attached Owner Notification.
Service Claim Allowances
This is a 3-hour job.
U.S. and Canadian Dealers Only - Eligible dealers may enter a Type 2 SIMS Report.
Parts Disposition
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
MAKE EVERY EFFORT TO COMPLETE THIS PROGRAM AS SOON AS POSSIBLE.
Attach.(1-Owner Notification)(Torque Procedure)Copy Of Owner Notification For U.S. And Canadian Owners
Torque Procedure For Electronic 3500B Injector Bolts
THIS REWORK IS RESTRICTED TO ENGINES LISTED IN THE AFFECTED PRODUCT ONLY.
THIS PIP DOES NOT ALLOW FOR THE REMOVAL OF THE INJECTOR. DO NOT REMOVE ANY OF THE STATOR BOLTS. THIS WILL VOID INJECTOR WARRANTY.
PROCEDURE:
1. Remove the valve covers to reveal the injector assembly/ electronic valve.2. Remove electronic valve terminal connector (two retaining nuts) with a " universal socket. Take the terminal connectors off of the posts.3. The four stator retaining bolts you need to check are now accessible. To properly complete the torque check, the following tools are required.a) Click torque wrench, " drive (capable of accurately measuring 2.0 N m)b) 6" extension " drive.c) universal joint, "drived) T10 Torx bit, " drive4. Set the torque wrench value to (2.1 N m). Check all four bolts and tighten (if needed) until they reach the 2.1 specification.:
DO NOT OVER TORQUE THE STATOR RETAINING BOLTS (2.1 N m). THIS COULD CAUSE FURTHER DAMAGE.
5. Reassemble the engine in the reverse order.a) Torque value of the terminal connector nuts - 3.0 N m b) Torque value for the valve cover bolts - 47 9 N m.
Completion Date
March 31, 2000Termination Date
September 30, 2000Problem
The torque of the injector electronic solenoid valves need to be checked. The valve has four Torx bolts that hold the stator to the housing. If these bolts are not properly tightened, fuel can leak into the oil.
Affected Product
Model & Identification Number
D11R (9TR441-442)
776D (5ER126, 5ER127)
785C (1HW122)
793C (4GZ165-167)
777D (3PR1058, 3PR1057, 3PR1061, 3PR1059, 3PR1060, 3PR1063)
3508B (3DM157-159 4GM426-439 6PN532-533 , 6PN535-536, 6PN539-540, 6PN542-543 5PS225-234 2HW125-126 1FZ366-370 )
3512 (6PM38-39 3MS186 3RS329 )
3512B (8EM317-318 8RM395-397 4TM215-217 3ZW131-134 6WN349-356 )
3516 (7KM50-51 3SS306-307 )
3516B (6HN384, 6HN390, 6HN392, 6HN394, 6HN398 7RN818-819 , 7RN821, 7RN824, 7RN826-827, 7RN833, 7RN836-840, 7RN850, 7RN852 8KN368-369 , 8KN372, 8KN373 7TR818 4BW333-334 )
Parts Needed
Dealers will not need to order parts for this Program.
Action Required
See the attached procedure.
Owner Notification
U.S. and Canadian owners will receive the attached Owner Notification.
Service Claim Allowances
This is a 3-hour job.
U.S. and Canadian Dealers Only - Eligible dealers may enter a Type 2 SIMS Report.
Parts Disposition
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
MAKE EVERY EFFORT TO COMPLETE THIS PROGRAM AS SOON AS POSSIBLE.
Attach.(1-Owner Notification)(Torque Procedure)Copy Of Owner Notification For U.S. And Canadian Owners
Torque Procedure For Electronic 3500B Injector Bolts
THIS REWORK IS RESTRICTED TO ENGINES LISTED IN THE AFFECTED PRODUCT ONLY.
THIS PIP DOES NOT ALLOW FOR THE REMOVAL OF THE INJECTOR. DO NOT REMOVE ANY OF THE STATOR BOLTS. THIS WILL VOID INJECTOR WARRANTY.
PROCEDURE:
1. Remove the valve covers to reveal the injector assembly/ electronic valve.2. Remove electronic valve terminal connector (two retaining nuts) with a " universal socket. Take the terminal connectors off of the posts.3. The four stator retaining bolts you need to check are now accessible. To properly complete the torque check, the following tools are required.a) Click torque wrench, " drive (capable of accurately measuring 2.0 N m)b) 6" extension " drive.c) universal joint, "drived) T10 Torx bit, " drive4. Set the torque wrench value to (2.1 N m). Check all four bolts and tighten (if needed) until they reach the 2.1 specification.:
DO NOT OVER TORQUE THE STATOR RETAINING BOLTS (2.1 N m). THIS COULD CAUSE FURTHER DAMAGE.
5. Reassemble the engine in the reverse order.a) Torque value of the terminal connector nuts - 3.0 N m b) Torque value for the valve cover bolts - 47 9 N m.
