Information nozzle
BOSCH
9 432 610 201
9432610201
ZEXEL
105017-0670
1050170670
ISUZU
8943342010
8943342010
Rating:
Compare Prices: .
As an associate, we earn commssions on qualifying purchases through the links below
Injector nozzle 12 Pieces DLLA157PN278 DLLA160P79 DLLA154PN067 DLLA157P715 DLLA150P644 DLLA160P9 diesel nozzle - (Color: DLLA157P715)
Generic Color: DLLA157P715
Generic Color: DLLA157P715
DIESEL FUEL INJECTOR DLLA154PN161 DLLA157PN201 DLLA147PN288 DLLA141PN136 DLLA160PN129 DLLA160PN100 DLLA154PN067 - (Color: DLLA141PN136)
Generic Color: DLLA141PN136
Generic Color: DLLA141PN136
You can express buy:
USD 6
15-07-2022
15-07-2022

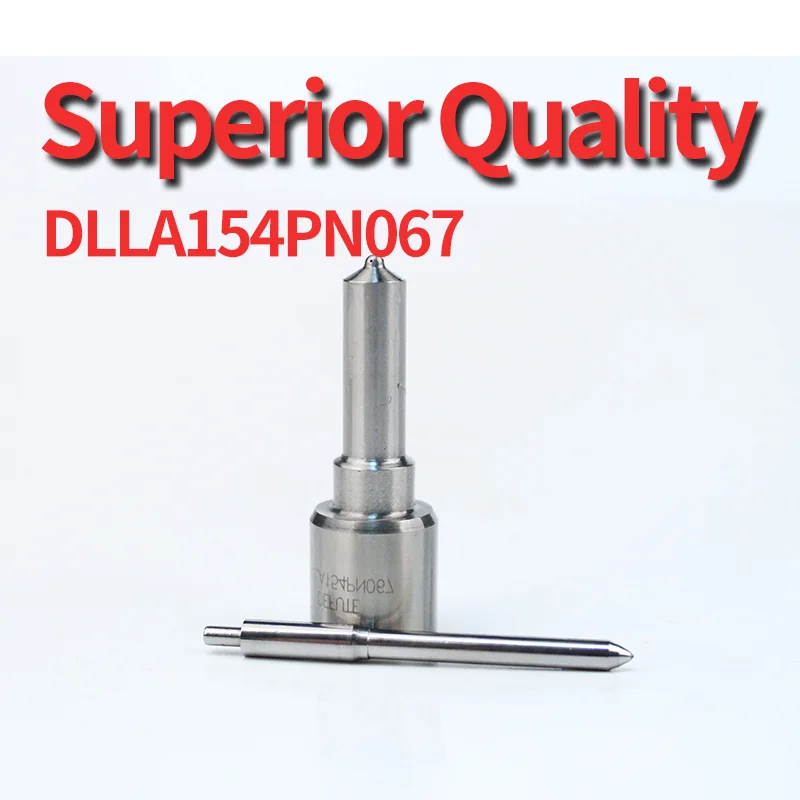

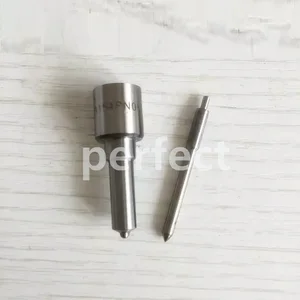

Diesel Injector Nozzle DLLA154PN067 105017-0670
USD 25
24-06-2019
24-06-2019

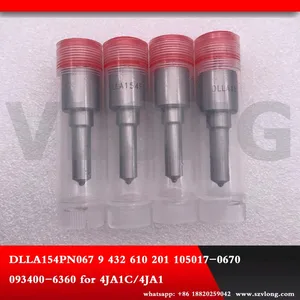

PN type DLLA154PN067 9 432 610 201 105017-0670 093400-6360 nozzlediesel nozzlefuel injector nozzle for 4JA 1C 4JA1
Include in #2:
104741-1514
as NOZZLE
Cross reference number
Zexel num
Bosch num
Firm num
Name
Information:
Introduction
Do not perform any procedure in this Special Instruction until you read this information and you understand this information.This Special Instruction is intended to provide instructions on installing O-Ring seals on the injector sleeves.Required Parts
Table 1
Required Parts
Part Number Part Name Quantity
227-1200 Injector Sleeve 6
310-7255 O-Ring Seal 6
310-7257 O-Ring Seal 6 Required Tools
Table 2
Required Tools
Part Number Part Name Quantity
221-9777 Sleeve Installer 1
4C-5552 Large Bore Brush 1
4C-9507 Retaining Compound 1 Cleaning the Injector Sleeves and Installing O-Ring Seal
Note: Thoroughly clean the injector sleeves with the 4C-5552 Large Bore Brush .Note: Thoroughly clean the bore in the cylinder head for the injector sleeves with the 4C-5552 Large Bore Brush .Note: Do not apply any lubricant to the O-ring seals.
Illustration 1 g01379557
(1) 310-7255 O-Ring Seal (2) 310-7257 O-Ring Seal (3) 227-1200 Injector Sleeve
Install the upper O-Ring (1) on the injector sleeve (3) .Note: The upper O-Ring is dark blue.
Install the lower O-Ring (2) on the injector sleeve (3) .Note: The lower O-Ring (2) is turquoise.
Position the injector sleeve on the 221-9777 Sleeve Installer .
Apply a thin coat of 4C-9507 Retaining Compound around the outer circumference of area (A). Ensure that the retaining compound does not make contact with the O-Ring seal at any time.
Position the injector sleeve (3) in the cylinder head by using the 221-9777 Sleeve Installer .
Slowly push the injector sleeve into the cylinder head by gently tapping with a hammer.Note: Allow the 4C-9507 Retaining Compound to cure for two hours at 21 °C (70 °F) before filling the engine with coolant. Longer curing time is required for lower temperatures.
Install the unit injectors. Refer to Disassembly and Assembly, "Unit Injector-Install" to install the unit injectors.
Do not perform any procedure in this Special Instruction until you read this information and you understand this information.This Special Instruction is intended to provide instructions on installing O-Ring seals on the injector sleeves.Required Parts
Table 1
Required Parts
Part Number Part Name Quantity
227-1200 Injector Sleeve 6
310-7255 O-Ring Seal 6
310-7257 O-Ring Seal 6 Required Tools
Table 2
Required Tools
Part Number Part Name Quantity
221-9777 Sleeve Installer 1
4C-5552 Large Bore Brush 1
4C-9507 Retaining Compound 1 Cleaning the Injector Sleeves and Installing O-Ring Seal
Note: Thoroughly clean the injector sleeves with the 4C-5552 Large Bore Brush .Note: Thoroughly clean the bore in the cylinder head for the injector sleeves with the 4C-5552 Large Bore Brush .Note: Do not apply any lubricant to the O-ring seals.
Illustration 1 g01379557
(1) 310-7255 O-Ring Seal (2) 310-7257 O-Ring Seal (3) 227-1200 Injector Sleeve
Install the upper O-Ring (1) on the injector sleeve (3) .Note: The upper O-Ring is dark blue.
Install the lower O-Ring (2) on the injector sleeve (3) .Note: The lower O-Ring (2) is turquoise.
Position the injector sleeve on the 221-9777 Sleeve Installer .
Apply a thin coat of 4C-9507 Retaining Compound around the outer circumference of area (A). Ensure that the retaining compound does not make contact with the O-Ring seal at any time.
Position the injector sleeve (3) in the cylinder head by using the 221-9777 Sleeve Installer .
Slowly push the injector sleeve into the cylinder head by gently tapping with a hammer.Note: Allow the 4C-9507 Retaining Compound to cure for two hours at 21 °C (70 °F) before filling the engine with coolant. Longer curing time is required for lower temperatures.
Install the unit injectors. Refer to Disassembly and Assembly, "Unit Injector-Install" to install the unit injectors.
