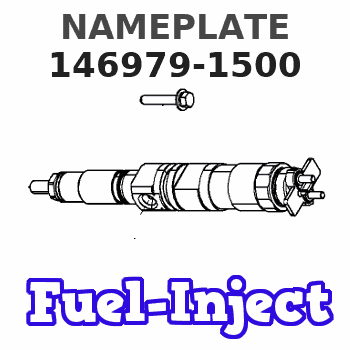

146979-1500 ZEXEL 9 461 628 161 BOSCH NAMEPLATE 9461628161 1469791500

ACTION REQUIRED
Refer to the Service Manual if/as necessary.
Inspect the engine for 20R-1282 Fuel Injectors with serial numbers LESS THAN 1240557.
If the engine has 20R-1282 Fuel Injectors with serial numbers LESS THAN 1240557, replace only the 20R-1282 Fuel Injectors with serial numbers LESS THAN 1240557 with 392-0222 Fuel Injectors.
Refer to Image 1 for the part number and serial number locations.
Record the serial number(s) and part number for the injector(s) removed.
SERVICE CLAIM ALLOWANCES
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
*******Group 1*******
0-4380 hrs,
0-6 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
This is a 1.0-hour job for Group 1
If there has been a previous repair, part age/hours will apply. Retain a copy of the previous repair invoice in the dealer's records for audit purposes, and specify repair date and machine hours in the "Additional Comments" section of the warranty claim.
The serial number(s) and part number for the injector(s) removed must be included in the claim story.
1.0 hour will be allowed for inspecting for suspect injectors.
1.0 hour will be allowed for replacing each 20R-1282 Fuel Injector in the engine with a 392-0222 Fuel Injector.
Reasonable travel time and mileage will be allowed.
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
*******Group 2*******
0-4380 hrs,
0-6 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
This is a 2.0-hour job for Group 2
If there has been a previous repair, part age/hours will apply. Retain a copy of the previous repair invoice in the dealer's records for audit purposes, and specify repair date and machine hours in the "Additional Comments" section of the warranty claim.
The serial number(s) and part number for the injector(s) removed must be included in the claim story.
2.0 hours will be allowed for inspecting for suspect injectors.
1.0 hour will be allowed for replacing each 20R-1282 Fuel Injector in the engine with a 392-0222 Fuel Injector.
Reasonable travel time and mileage will be allowed.
PARTS DISPOSITION
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
