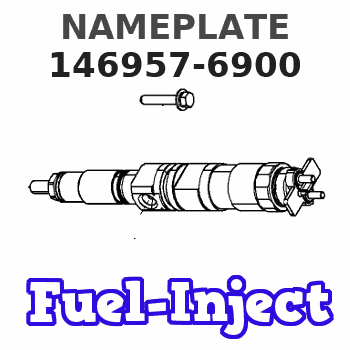

146957-6900 ZEXEL 9 461 617 838 BOSCH NAMEPLATE 9461617838 1469576900

Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
Table 1
Required Parts
Qty Part Number Part Name
1 420-0939 Sleeve(1)
1 420-0940 Sleeve(2)
1 420-0941 Sleeve(3)
1 420-0942 Sleeve(4)
(1) Red
(2) Silver
(3) Gold
(4) GreenSleeve Rework procedure
Illustration 1 g06360367
Typical example of an injector - without sleeve
(A) Adjustment screw
(B) Locknut
Remove and retain adjustment screw (A). Remove and discard locknut (B).
Illustration 2 g06360368
Typical example of an injector - with sleeve
(1) Sleeve
(A) Adjustment screw
Insert appropriate sleeve (1) onto adjustment screw (A).
