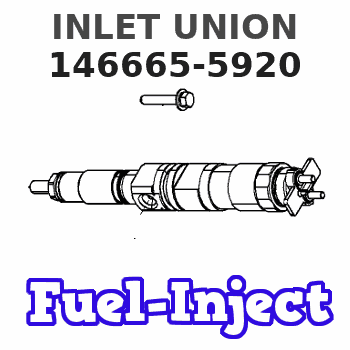

146665-5920 ZEXEL 9 461 621 214 BOSCH INLET UNION 9461621214 1466655920 8970461170

4. Minimum permissible depth to machine counterbore to adjust cylinder liner projection ... .030 in.(0.76 mm) Maximum permissible depth to machine counterbore to adjust cylinder liner projection ... .045 in.(1.14 mm)Install a .030 in. (0.76 mm) shim plus any added shims necessary to get the correct cylinder liner projection. Be sure that the .030 in. (0.76 mm) shim is directly under the cylinder liner flange.Put 7M7260 Liquid Gasket on the top of the top shim and on the bottom of the bottom shim before installing.(1) Crossbar (from 8B7548 Puller).(2) Spacer plate.(3) S1589 Bolt with two 1S379 Washers.(4) 1D4595 Bolt.(5) 3H465 Plate.(6) 1P2403 Dial Indicator.(7) 1P2394 Adapter Plate.(8) 1P2402 Gauge Body.
