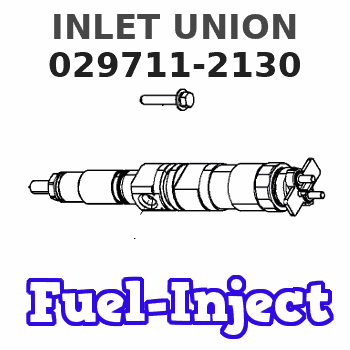

029711-2130 ZEXEL 9 442 610 431 BOSCH INLET UNION 9442610431 0297112130 1434937701

(1) Inside diameter of rocker arm ... 19.063 to 19.101 mm (.7505 to 7520 in) Lever clearance on rocker shaft ... 0.03 to 0.089 mm (.001 to .0035 in)Maximum permissible clearance (worn) ... 0.13 mm (.005 in)(2) Diameter of rocker shaft ... 19.012 to 19.037 mm (.7485 to .7495 in)(3) Install seal (3) in cylinder head before rocker shaft is installed.(4) Length of push rods ... 270.46 to 271.98 mm (10.648 to 10.708 in) Diameter of push rods ... 7.87 to 7.92 mm (.310 to .312 in)(5) End play of camshaft (new) ... 0.10 to 0.41 mm (.004 to .016 in) Maximum permissible end play (worn) ... 0.51 mm (.020 in)(6) Torque for bolt that holds camshaft gear on camshaft ... 70 N m (50 lb ft)(7) Camshaft thrust washer. A new cylinder block, camshaft and thrust washer have been introduced on the 4.236 engine for the Backhoe Loaders. The thrust washer recess in the new block is deeper. The thrust washer thickness remains the same. The change became effective with engine serial number LD70178U106654N. The engine serial number is located above the fuel injection pump on the block.Outside diameter of thrust washer ... 72.95 to 73.00 mm (2.872 to 2.874 in)Cylinder block recess diameter for thrust washer ... 73.03 to 73.28 mm (2.875 to 2.885 in)Clearance of thrust washer in recess ... 0.03 to 0.33 mm (.001 to .013 in)Inside diameter of thrust washer ... 44.45 mm (1.750 in)Thickness of thrust washer ... 5.49 to 5.54 mm (.216 to .218 in) The recess in the cylinder block is deeper for current models.Earlier Models:Cylinder block recess depth for thrust washer ... 4.75 to 4.83 mm (.187 to .190 in)Projection of thrust washer above cylinder block front face ... 0.66 to 0.79 mm (.026 to .031 in)Current Models:Cylinder block recess depth for thrust washer ... 5.38 to 5.49 mm (.212 to .216 in)Projection of thrust washer above cylinder block front face ... 0.0 to 0.13 mm (0.0 to .005 in)(8) Diameter of camshaft journals: No. 1 journal ... 50.71 to 50.737 mm (1.9965 to 1.9975 in)Minimum permissible diameter ... 50.660 mm (1.9945 in)No. 2 journal ... 50.457 to 50.483 mm (1.9865 to 1.9875 in)Minimum permissible diameter ... 50.406 mm (1.9845 in)No. 3 journal ... 49.949 to 49.975 mm (1.9665 to 1.9675 in)Minimum permissible diameter ... 49.898 mm (19.9645 in)See Cylinder Block for camshaft bore specifications.(9) Tappet (valve lifter): Length of tappet ... 75.4063 mm (2.96875 in)Shank diameter ... 18.987 to 19.012 mm (.7475 to .7485 in)Diameter of bore in block for tappet ... 19.05 to 19.083 mm (.750 to .7513 in)Running clearance between tappet and block ... 0.038 to 0.097 mm (.0015 to .0038 in)Foot diameter of tappet ... 30.163 mm (1.1875 in) Camshaft lobe height: 1. Measure base circle (C).2. Add lobe lift (A) to base circle measurement. Camshaft lobe lift (A) is ... 7.62 to 7.70 mm (.300 to .303 in)3. Total is camshaft lobe height (B). Minimum
