Information injection-pump assembly
BOSCH
0 470 504 043
0470504043
ZEXEL
109342-4070
1093424070
NISSAN
16700VX400
16700vx400

Rating:
Compare Prices: .
As an associate, we earn commssions on qualifying purchases through the links below

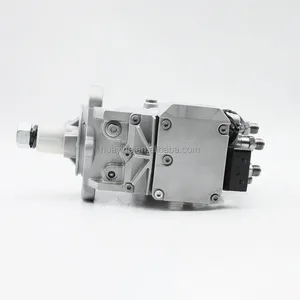

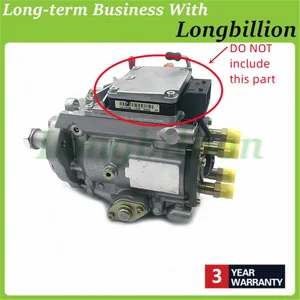

VP44 Diesel Fuel Injector Pump 0470504043 16700VX400 16700VX40A 109342-4070,Compatible for Nissan 2.5, 3.0 Di ZD30
KCUHQWA Efficient fuel supply: It can accurately deliver diesel to the engine combustion chamber at high pressure, improving fuel utilization efficiency. || Precise injection: Ensure more precise timing and quantity of fuel injection, optimizing the combustion process. || Enhance power: Provide sufficient fuel pressure to the engine, allowing it to output stronger power. || Stability performance: The work is stable and reliable, ensuring that the engine can operate normally under various working conditions. || VP44 Diesel Fuel Injector Pump 0470504043 16700VX400 16700VX40A 109342-4070,Compatible for Nissan 2.5, 3.0 Di ZD30
KCUHQWA Efficient fuel supply: It can accurately deliver diesel to the engine combustion chamber at high pressure, improving fuel utilization efficiency. || Precise injection: Ensure more precise timing and quantity of fuel injection, optimizing the combustion process. || Enhance power: Provide sufficient fuel pressure to the engine, allowing it to output stronger power. || Stability performance: The work is stable and reliable, ensuring that the engine can operate normally under various working conditions. || VP44 Diesel Fuel Injector Pump 0470504043 16700VX400 16700VX40A 109342-4070,Compatible for Nissan 2.5, 3.0 Di ZD30
Components :
0. | INJECTION-PUMP ASSEMBLY | 109342-4070 |
1. | _ | |
2. | FUEL INJECTION PUMP | 109242-4051 |
3. | NUMBER PLATE | |
4. | _ | |
5. | CAPSULE | |
6. | ADJUSTING DEVICE | |
7. | NOZZLE AND HOLDER ASSY | 105118-8420 |
8. | Nozzle and Holder | 16600VX400 |
9. | Open Pre:MPa(Kqf/cm2) | 19.0{194}/37.5{382} |
10. | NOZZLE-HOLDER | 105048-4120 |
11. | NOZZLE | 105017-3600 |
Scheme ###:
3. | [1] | 149351-0201 | PACKING RING |
7. | [1] | 149050-0220 | SUPPLY PUMP |
9. | [1] | 149055-0000 | SUPPORT RING |
10. | [4] | 149330-2000 | TORX SCREW |
12. | [1] | 149100-0520 | DRIVE SHAFT |
17/1. | [1] | 149110-0000 | SHIM D42.5627.1T2.2 |
17/1B. | [1] | 149110-0100 | SHIM D42.5&27.1T2.3 |
17/1C. | [1] | 149110-0200 | SHIM D42.5&27.1T2.4 |
17/1D. | [1] | 149110-0300 | SHIM D42.5&27.1T2.5 |
17/1E. | [1] | 149110-0400 | SHIM D42.5&27.1T2.6 |
17/1F. | [1] | 149110-0500 | SHIM D42.5&27.1T2.7 |
17/1G. | [1] | 149110-0600 | SHIM D42.5&27.1T2.8 |
17/1H. | [1] | 149110-0700 | SHIM D42.5&27.1T2.9 |
17/1I. | [1] | 149110-0800 | SHIM D42.5&27.1T3.0 |
17/1J. | [1] | 149110-0900 | SHIM D42.5&27.1T3.1 |
17/1K. | [1] | 149110-1000 | SHIM D42.5&27.1T3.2 |
17B/1. | [1] | 149110-1200 | SHIM D42.5&27.1T2.2 |
17B/1B. | [1] | 149110-1300 | SHIM D42.5&27.1T2.3 |
17B/1C. | [1] | 149110-1400 | SHIM D42.5&27.1T2.4 |
17B/1D. | [1] | 149110-1500 | SHIM D42.5&27.1T2.5 |
17B/1E. | [1] | 149110-1600 | SHIM D42.5&27.1T2.6 |
17B/1F. | [1] | 149110-1700 | SHIM D42.5&27.1T2.7 |
17B/1G. | [1] | 149110-1800 | SHIM D42.5&27.1T2.8 |
17B/1H. | [1] | 149110-1900 | SHIM D42.5&27.1T2.9 |
17B/1I. | [1] | 149110-2000 | SHIM D42.5&27.1T3.0 |
17B/1J. | [1] | 149110-2100 | SHIM D42.5&27.1T3.1 |
17B/1K. | [1] | 149110-2200 | SHIM D42.5&27.1T3.2 |
19. | [1] | 149111-0000 | DRIVER DISC |
20. | [1] | 149120-0120 | CAM RING |
21. | [2] | 149112-0200 | ROLLER SHOE |
22. | [2] | 149113-0300 | ROLLER |
23. | [1] | 149111-0100 | PLATE |
25. | [1] | 149114-0000 | BEARING PLATE |
30. | [1] | 149350-3300 | O-RING |
35. | [1] | 149170-0022 | HYDRAULIC STOPPER |
36. | [1] | 149350-3400 | O-RING |
37. | [1] | 149180-0300 | CLOSING COVER |
38. | [2] | 149330-2900 | TORX BOLT |
39. | [1] | 149350-1700 | SEAL RING |
42. | [1] | 149164-0000 | COILED SPRING |
49. | [4] | 149330-3900 | TORX BOLT |
50. | [1] | 149200-0921 | HYDRAULIC HEAD |
51. | [3] | 149350-2000 | O-RING |
54. | [4] | 149313-2700 | GASKET |
58. | [4] | 149305-0020 | RESTRICTION |
61. | [3] | 149330-3400 | TORX BOLT |
62. | [1] | 149436-0100 | PLATE |
63. | [1] | 149350-1900 | O-RING |
104. | [2] | 149330-3500 | HEX-SOCKET-HEAD CAP SCREW |
104. | [2] | 149330-3500 | HEX-SOCKET-HEAD CAP SCREW |
105. | [2] | 149443-0200 | GASKET |
105. | [2] | 149443-0200 | GASKET |
107. | [1] | 149403-0320 | SENSOR |
107B. | [1] | 149403-0520 | SENSOR |
109. | [3] | 149330-1600 | TORX BOLT |
111. | [2] | 149330-0501 | TORX SCREW |
123. | [5] | 149330-3900 | TORX BOLT |
127. | [1] | 149350-2800 | SEAL RING |
133. | [1] | 149350-3500 | O-RING |
134. | [1] | 149350-3600 | O-RING |
135. | [1] | 149060-0520 | CONTROL VALVE |
206. | [1] | 149330-2500 | UNION NUT |
207. | [1] | 149412-0100 | PLAIN WASHER |
243. | [1] | 149330-3500 | HEX-SOCKET-HEAD CAP SCREW |
244. | [1] | 149443-0200 | GASKET |
270. | [1] | 149411-2600 | COUPLING PLATE |
271/1. | [1] | 149411-1300 | SHIM T0.5 |
271/1B. | [1] | 149411-1400 | SHIM T0.6 |
271/1C. | [1] | 149411-1500 | SHIM T0.7 |
271/1D. | [1] | 149411-1600 | SHIM T0.8 |
271/1E. | [1] | 149411-1700 | SHIM T0.9 |
271/1F. | [1] | 149411-1800 | SHIM T1.0 |
271/1G. | [1] | 149411-1900 | SHIM T1.1 |
271/1H. | [1] | 149411-2000 | SHIM T1.2 |
271/1I. | [1] | 149411-2100 | SHIM T1.3 |
271/1J. | [1] | 149411-2200 | SHIM T1.4 |
271/1K. | [1] | 149411-2300 | SHIM T1.5 |
271B/1. | [1] | 149411-4000 | SHIM T0.5 |
271B/1B. | [1] | 149411-4100 | SHIM T0.6 |
271B/1C. | [1] | 149411-4200 | SHIM T0.7 |
271B/1D. | [1] | 149411-4300 | SHIM T0.8 |
271B/1E. | [1] | 149411-4400 | SHIM T0.9 |
271B/1F. | [1] | 149411-4500 | SHIM T1.0 |
271B/1G. | [1] | 149411-4600 | SHIM T1.1 |
271B/1H. | [1] | 149411-4700 | SHIM T1.2 |
271B/1I. | [1] | 149411-4800 | SHIM T1.3 |
271B/1J. | [1] | 149411-4900 | SHIM T1.4 |
271B/1K. | [1] | 149411-5000 | SHIM T1.5 |
392. | [1] | 149350-3700 | O-RING |
393. | [1] | 149419-0600 | BLEEDER SCREW |
394. | [1] | 149420-0001 | INTERMEDIATE PLATE |
400. | [1] | 149460-1300 | CABLE CRAMP |
425. | [2] | 149330-3300 | TORX BOLT |
471. | [1] | 149410-0000 | COVER |
480. | [1] | 149350-3800 | SEAL RING |
800S. | [1] | 149480-0220 | SERVICE PARTS GROUP |
801S. | [1] | 149481-0420 | PARTS SET |
804S. | [1] | 149483-0020 | PARTS SET |
804S/14. | [1] | 149350-1800 | O-RING |
804S/15. | [1] | 149350-1900 | O-RING |
805S. | [1] | 149482-0220 | PARTS SET |
805S. | [1] | 149482-0220 | PARTS SET |
805S. | [1] | 149482-0220 | PARTS SET |
805S. | [1] | 149482-0220 | PARTS SET |
805S. | [1] | 149482-0220 | PARTS SET |
805S. | [1] | 149482-0220 | PARTS SET |
805S. | [1] | 149482-0220 | PARTS SET |
805S. | [1] | 149482-0220 | PARTS SET |
902. | [1] | 149433-0220 | OUTLET PIPE ASSY |
902/1. | [1] | 149070-0120 | OVER FLOW VALVE |
902/2. | [1] | 146669-4420 | INLET UNION |
902/3. | [2] | 149350-2700 | FLAT SEAL RING |
903. | [1] | 149428-0520 | INLET PIPE |
903/1. | [1] | 149330-0000 | EYE BOLT |
903/2. | [1] | 149425-0020 | INLET UNION |
903/3. | [2] | 149350-2600 | FLAT SEAL RING |
Include in #2:
109342-4070
as INJECTION-PUMP ASSEMBLY
Cross reference number
Zexel num
Bosch num
Firm num
Name
0 470 504 043
16700VX400 NISSAN
INJECTION-PUMP ASSEMBLY
ZD30ETI A * K 13CJ INJECTION PUMP ASSY VP44 VP44
ZD30ETI A * K 13CJ INJECTION PUMP ASSY VP44 VP44
0 470 504 043
GR167VX400 NISSAN
INJECTION-PUMP ASSEMBLY
ZD30ETI B * K 13CJ INJECTION PUMP ASSY VP44 VP44
ZD30ETI B * K 13CJ INJECTION PUMP ASSY VP44 VP44
0 470 504 043
16700VX400 NISSAN-DIESEL
INJECTION-PUMP ASSEMBLY
ZD30ETI * K 13CJ INJECTION PUMP ASSY VP44 VP44
ZD30ETI * K 13CJ INJECTION PUMP ASSY VP44 VP44
Information:
1. Remove bolts (1) and the locks that hold oil pump (2) in position.2. Remove oil pump (2).Install Oil Pump
1. Put oil pump (1) in position on the engine. Install the bolts and locks that hold it to the engine.end by: a) install oil panDisassemble Oil Pump
start by: a) remove oil pump
TYPICAL EXAMPLE1. Remove pressure relief valve exhaust tube (6).2. Remove suction tube and screen assembly (3).3. Remove the pressure relief valve housing (5). Remove plunger (1), spring (4) and spacer (2) from valve housing (5). 4. Remove the cotter pin from the gear retaining nut. Loosen the nut that holds the gear until it is even with the end of the shaft. Install tooling (A) and make a separation of gear (7) from the shaft.5. Remove tooling (A), retaining nut, gear and woodruff key. 6. Remove the bolts that hold the pump housing. Remove pump housing (8), gear (10) and shaft assembly (9). 7. Use tooling (B) to remove the bearing from the pump housing and gear.Assemble Engine Oil Pump
1. Use tooling (A) to install the bearings in the pump housings and gear.2. Put clean SAE 30 engine oil on the shafts and gear.3. Install the gear and shaft assembly in the pump housing, and connect the pump housings. After bolts that hold the pump housing have been tightened the pump gears must turn freely. 4. Install the woodruff key, drive gear and retaining nut (1). Tighten the nut that holds the gear to 100 lb.ft. (135.6 N m) plus enough to make alignment of cotter pin hole. Install cotter pin.
TYPICAL EXAMPLE5. Put lubrication on and install the spacer, spring and plunger in the pressure relief valve housing. Install the housing assembly (3).6. Install the pressure relief valve exhaust tube (4).7. Install the suction tube and screen assembly (2).end by: a) install oil pump
1. Put oil pump (1) in position on the engine. Install the bolts and locks that hold it to the engine.end by: a) install oil panDisassemble Oil Pump
start by: a) remove oil pump
TYPICAL EXAMPLE1. Remove pressure relief valve exhaust tube (6).2. Remove suction tube and screen assembly (3).3. Remove the pressure relief valve housing (5). Remove plunger (1), spring (4) and spacer (2) from valve housing (5). 4. Remove the cotter pin from the gear retaining nut. Loosen the nut that holds the gear until it is even with the end of the shaft. Install tooling (A) and make a separation of gear (7) from the shaft.5. Remove tooling (A), retaining nut, gear and woodruff key. 6. Remove the bolts that hold the pump housing. Remove pump housing (8), gear (10) and shaft assembly (9). 7. Use tooling (B) to remove the bearing from the pump housing and gear.Assemble Engine Oil Pump
1. Use tooling (A) to install the bearings in the pump housings and gear.2. Put clean SAE 30 engine oil on the shafts and gear.3. Install the gear and shaft assembly in the pump housing, and connect the pump housings. After bolts that hold the pump housing have been tightened the pump gears must turn freely. 4. Install the woodruff key, drive gear and retaining nut (1). Tighten the nut that holds the gear to 100 lb.ft. (135.6 N m) plus enough to make alignment of cotter pin hole. Install cotter pin.
TYPICAL EXAMPLE5. Put lubrication on and install the spacer, spring and plunger in the pressure relief valve housing. Install the housing assembly (3).6. Install the pressure relief valve exhaust tube (4).7. Install the suction tube and screen assembly (2).end by: a) install oil pump
