Buy 109341-1023 ZEXEL 9 461 629 116 BOSCH INJECTION-PUMP ASSEMBLY 9461629116 1093411023 8973267392

Information injection-pump assembly

BOSCH 9 461 629 116 9461629116

ZEXEL 109341-1023 1093411023

ISUZU 8973267392 8973267392

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 109341-1023 zexel genuine, new aftermarket engine parts with delivery

Compare Prices: .

As an associate, we earn commssions on qualifying purchases through the links below

8973267392 4JH1 4JH1-TC Vp44 Injector Pump Compatible With Isuzu Dmax 3.0 D 4WD TFR85 Truck 0470504037 4jh1

$6,916.84

07 May 2025
0.1102[0.05] pounds
CN: DingJuHeZhiMin SHOP

8973267392 4JH1 4JH1-TC Vp44 Injector Pump Compatible With Isuzu Dmax 3.0 D 4WD TFR85 Truck 0470504037 4jh1
HZMehi Quick start: Shorten engine start time and improve driving experience. || Low noise: Optimized design to reduce operating noise and improve comfort. || Easy installation: reasonable design, easy to install and replace. || Automatic regulation: Automatically adjusts fuel pressure according to engine requirements. || Cold start performance: It can still work normally under low temperature conditions.

8973267392 4JH1 4JH1-TC Vp44 Injector Pump Compatible With Isuzu Dmax 3.0 D 4WD TFR85 Truck 0470504037 4jh1 Pump

$6,159.72

07 May 2025
0.1102[0.05] pounds
CN: AnRongW

8973267392 4JH1 4JH1-TC Vp44 Injector Pump Compatible With Isuzu Dmax 3.0 D 4WD TFR85 Truck 0470504037 4jh1 Pump
WHXIDKAUS 1. Powerful drive: The use of high-performance motor can provide maximum output power to ensure that your can operate efficiently || 2. High efficiency and energy saving: Built-in intelligent control system can quickly respond to energy-saving operations, reduce fuel consumption, and save money Compatible With you || 3. Stable and reliable: The precision process of the fuel pump made of materials ensures stable and reliable use Compatible With a long time and avoids failure || 4. Silent operation: Our fuel pumps use silent technology, which makes very low noise during operation and will not cause too much disturbance to your daily life || 5. Easy installation: An easy-to-use installation program that takes just a few small steps to install our fuel pumps into your

Engine Parts 4JH1 Engine Oil Pump 8-97326739-2 8973267393 8973267392 Compatible For Isuzu 4JH1 Fuel Pump

$1,702.54

07 May 2025
0.1102[0.05] pounds
CN: qing qing shop q

Engine Parts 4JH1 Engine Oil Pump 8-97326739-2 8973267393 8973267392 Compatible For Isuzu 4JH1 Fuel Pump
CONERY 🚘 Engine parts 4JH1 engine oil pump 8-97326739-2 8973267393 8973267392 Compatible for Isuzu 4JH1 fuel pump || 🚘 The fuel pump has been carefully designed and optimized for low noise, reducing noise interference during vehicle operation and improving driving experience and comfort. || 🚘 The fuel pump can deliver fuel to the engine in an extremely short amount of time, ensuring smooth operation and efficient combustion, thereby improving fuel utilization and vehicle performance. || 🚘 The fuel pump can provide sufficient fuel pressure to ensure the smooth delivery of fuel to various components of the engine, maintain its normal working state, and improve the efficiency and power output of the engine. || 🚘 Using high-quality materials and strict manufacturing processes, it has a long service life, can withstand harsh environments and working conditions, reduce failure and maintenance frequency, improve vehicle reliability, and reduce maintenance costs.

You can express buy:

USD 1375.22
13-05-2025

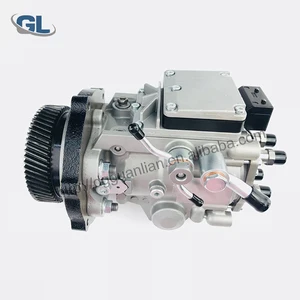

4JH1 High Pressure vp44 injector pump 8-97326739-2 8973267393 8973267392 for isuzu dmax d max

US $1420.00
05-01-2017

B/OSCH VP44 Fuel pump 0470504037, 109341-1024 for ISUZU 4JH1 D-Max 8973267391, 8973267392, 8973267393, 8973267394, 8-97326739-4

US $1420.00
10-12-2016

VP44 Fuel pump 0470504037, 0470504048 for ISUZU 4JH1 D-Max 8973267391, 8973267392, 8973267393, 8973267394

Images:

US $1420.00

[09-Dec-2016]

US $1420.00

[06-Dec-2016]

US $1420.00

[01-May-2017]

US $1420.00

[30-Apr-2017]

Components :

0.	INJECTION-PUMP ASSEMBLY	109341-1023
1.	_
2.	FUEL INJECTION PUMP	109241-1005
3.	NUMBER PLATE
4.	_
5.	CAPSULE
6.	ADJUSTING DEVICE
7.	NOZZLE AND HOLDER ASSY	105118-8212
8.	Nozzle and Holder
9.	Open Pre:MPa(Kqf/cm2)	19.5{199}/33.8{345}
10.	NOZZLE-HOLDER	105048-2270
11.	NOZZLE	105017-3090

Scheme ###:

3.	[1]	149351-0201	PACKING RING
7.	[1]	149050-0220	SUPPLY PUMP
9.	[1]	149055-0000	SUPPORT RING
10.	[4]	149330-2000	TORX SCREW
12.	[1]	149100-1120	DRIVE SHAFT
17/1.	[1]	149110-0000	SHIM D42.5627.1T2.2
17/1B.	[1]	149110-0100	SHIM D42.5&27.1T2.3
17/1C.	[1]	149110-0200	SHIM D42.5&27.1T2.4
17/1D.	[1]	149110-0300	SHIM D42.5&27.1T2.5
17/1E.	[1]	149110-0400	SHIM D42.5&27.1T2.6
17/1F.	[1]	149110-0500	SHIM D42.5&27.1T2.7
17/1G.	[1]	149110-0600	SHIM D42.5&27.1T2.8
17/1H.	[1]	149110-0700	SHIM D42.5&27.1T2.9
17/1I.	[1]	149110-0800	SHIM D42.5&27.1T3.0
17/1J.	[1]	149110-0900	SHIM D42.5&27.1T3.1
17/1K.	[1]	149110-1000	SHIM D42.5&27.1T3.2
17B/1.	[1]	149110-1200	SHIM D42.5&27.1T2.2
17B/1B.	[1]	149110-1300	SHIM D42.5&27.1T2.3
17B/1C.	[1]	149110-1400	SHIM D42.5&27.1T2.4
17B/1D.	[1]	149110-1500	SHIM D42.5&27.1T2.5
17B/1E.	[1]	149110-1600	SHIM D42.5&27.1T2.6
17B/1F.	[1]	149110-1700	SHIM D42.5&27.1T2.7
17B/1G.	[1]	149110-1800	SHIM D42.5&27.1T2.8
17B/1H.	[1]	149110-1900	SHIM D42.5&27.1T2.9
17B/1I.	[1]	149110-2000	SHIM D42.5&27.1T3.0
17B/1J.	[1]	149110-2100	SHIM D42.5&27.1T3.1
17B/1K.	[1]	149110-2200	SHIM D42.5&27.1T3.2
19.	[1]	149111-0000	DRIVER DISC
20.	[1]	149120-0820	CAM RING
21.	[2]	149112-0200	ROLLER SHOE
22.	[2]	149113-0300	ROLLER
23.	[1]	149111-0100	PLATE
25.	[1]	149114-0000	BEARING PLATE
30.	[1]	149350-3300	O-RING
35.	[1]	149170-0022	HYDRAULIC STOPPER
36.	[1]	149350-3400	O-RING
37.	[1]	149180-0101	CLOSING COVER
38.	[2]	149330-1800	TORX BOLT
39.	[1]	149350-1700	SEAL RING
42.	[1]	149164-0000	COILED SPRING
49.	[4]	149330-1900	TORX BOLT
50.	[1]	149201-0521	HYDRAULIC HEAD
51.	[3]	149350-2000	O-RING
54.	[4]	149313-2700	GASKET
58.	[4]	149300-0023	PRESSURE-CONTROL VALVE
61.	[3]	149330-2300	TORX BOLT
62.	[1]	149436-0000	PLATE
63.	[1]	149350-1900	O-RING
104.	[2]	149330-2400	HEX-SOCKET-HEAD CAP SCREW
105.	[2]	149443-0200	GASKET
107.	[1]	149403-0420	SENSOR
109.	[3]	149330-1600	TORX BOLT
111.	[2]	149330-0501	TORX SCREW
123.	[5]	149330-1700	TORX BOLT
127.	[1]	149350-2800	SEAL RING
133.	[1]	149350-3500	O-RING
134.	[1]	149350-3600	O-RING
135.	[1]	149060-0020	CONTROL VALVE
206.	[1]	149330-2500	UNION NUT
207.	[1]	149412-0000	PLAIN WASHER
243.	[1]	149330-2400	HEX-SOCKET-HEAD CAP SCREW
244.	[1]	149443-0200	GASKET
270.	[1]	149411-2500	COUPLING PLATE
271/1.	[1]	149411-0200	SHIM T0.5
271/1B.	[1]	149411-0300	SHIM T0.6
271/1C.	[1]	149411-0400	SHIM T0.7
271/1D.	[1]	149411-0500	SHIM T0.8
271/1E.	[1]	149411-0600	SHIM T0.9
271/1F.	[1]	149411-0700	SHIM T1.0
271/1G.	[1]	149411-0800	SHIM T1.1
271/1H.	[1]	149411-0900	SHIM T1.2
271/1I.	[1]	149411-1000	SHIM T1.3
271/1J.	[1]	149411-1100	SHIM T1.4
271/1K.	[1]	149411-1200	SHIM T1.5
271B/1.	[1]	149411-2800	SHIM T0.5
271B/1B.	[1]	149411-2900	SHIM T0.6
271B/1C.	[1]	149411-3000	SHIM T0.7
271B/1D.	[1]	149411-3100	SHIM T0.8
271B/1E.	[1]	149411-3200	SHIM T0.9
271B/1F.	[1]	149411-3300	SHIM T1.0
271B/1G.	[1]	149411-3400	SHIM T1.1
271B/1H.	[1]	149411-3500	SHIM T1.2
271B/1I.	[1]	149411-3600	SHIM T1.3
271B/1J.	[1]	149411-3700	SHIM T1.4
271B/1K.	[1]	149411-3800	SHIM T1.5
392.	[1]	149350-3700	O-RING
393.	[1]	149419-0100	BLEEDER SCREW
394.	[1]	149420-0000	INTERMEDIATE PLATE
394B.	[1]	149420-0100	INTERMEDIATE PLATE
400.	[1]	149460-1300	CABLE CRAMP
425.	[2]	149330-2200	TORX BOLT
471.	[1]	149410-0000	COVER
480.	[1]	149350-3800	SEAL RING
800S.	[1]	149480-0020	SERVICE PARTS GROUP
801S.	[1]	149481-0220	PARTS SET
804S.	[1]	149483-0020	PARTS SET
804S/14.	[1]	149350-1800	O-RING
804S/15.	[1]	149350-1900	O-RING
805S.	[1]	149482-0220	PARTS SET
805S.	[1]	149482-0220	PARTS SET
805S.	[1]	149482-0220	PARTS SET
805S.	[1]	149482-0220	PARTS SET
805S.	[1]	149482-0220	PARTS SET
805S.	[1]	149482-0220	PARTS SET
805S.	[1]	149482-0220	PARTS SET
805S.	[1]	149482-0220	PARTS SET
902.	[1]	149433-0021	OUTLET PIPE ASSY
902/1.	[1]	149070-0120	OVER FLOW VALVE
902/2.	[1]	149430-0120	INLET UNION
902/3.	[2]	149350-2700	FLAT SEAL RING
903.	[1]	149428-0021	INLET PIPE
903/1.	[1]	149071-0120	EYE BOLT
903/2.	[1]	149425-0920	INLET UNION
903/3.	[2]	149350-2600	FLAT SEAL RING
921.	[1]	149465-0222	BRACKET
922.	[1]	149470-0200	TOOTHED GEAR
923.	[1]	149350-1400	O-RING
926.	[4]	149442-0100	BLEEDER SCREW
927.	[4]	149413-0100	UNION NUT

Include in #2:

109341-1023 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num

Bosch num

Firm num

Name

109341-1023
109341-1024

9 461 629 116

8973267392 ISUZU

INJECTION-PUMP ASSEMBLY
4JH1TC K 13CJ INJECTION PUMP ASSY VP44 VP44

Information:

start by:a) remove automatic timing advanceb) remove vibration damper and pulleyc) remove water pumpd) remove belt tightener idler pulleye) remove water temperature regulator (left cylinder head)1. Remove the tube assembly from the oil cooler elbow to the oil pan.2. Loosen the bolts that hold the oil pan to the cylinder block approximately 1/4" (6.4 mm). Remove the bolts that hold the oil pan to the timing gear cover.3. Fasten a hoist to the engine and lift it off tool (A). Weight of the engine is 3200 lb. (1452 kg). Make a separation of the oil pan from the cylinder block and timing gear cover. Do not damage the pan gasket.4. Put 1/4" (6.4 mm) pieces of bar stock between the pan and cylinder block at the positions the oil pan makes contact with tool (A). Lower the engine on tool (A).5. Remove the bolts from the belt tightener bracket. Remove the block and gasket. 6. Remove fumes disposal tube (1).7. Remove the bolts (4) that hold the timing gear cover to the cylinder block.8. Remove water bonnet (2).9. Remove timing gear cover (3).
Do not cause damage to the crankshaft front seal when the cover is removed.
10. Check the condition of the O-ring seal on the fuel injection pump housing.Install Timing Gear Cover
1. Put clean engine oil on the O-ring seal for the fuel injection pump housing, the crankshaft front seal and wear sleeve.2. Install tool (B) in the crankshaft front seal.3. Install a new gasket on the timing gear cover. Put timing gear cover (1) in position on the dowels in the cylinder block. Make sure it is against the cylinder block all around.4. Install the bolts that hold the cover in position. Remove tool (B) from the crankshaft front seal.5. Install the water bonnet, the fumes disposal tube and the block for the belt tightener bracket.6. Fasten a hoist to the engine and lift it off tool (A). Remove the bar stock from between the cylinder block and oil pan. Tighten the bolts that hold the oil pan to the cylinder block.7. Install the bolts that hold the oil pan to the timing gear cover. Put the engine back on tool (A).8. Install the tube assembly between the oil pan and oil cooler.end by:a) install water temperature regulator (left cylinder head)b) install belt tightener idler pulleyc) install water pumpd) install vibration damper and pulleye) install automatic timing advance
