Buy 109341-1006 ZEXEL 0 470 504 030 BOSCH INJECTION-PUMP ASSEMBLY 0470504030 1093411006 8972492384




Information injection-pump assembly

BOSCH 0 470 504 030 0470504030
ZEXEL 109341-1006 1093411006
ISUZU 8972492384 8972492384
109341-1006 INJECTION-PUMP ASSEMBLY
Rating:
13
Buy INJECTION-PUMP ASSEMBLY 109341-1006 zexel genuine, new aftermarket engine parts with delivery

Compare Prices: .

As an associate, we earn commssions on qualifying purchases through the links below

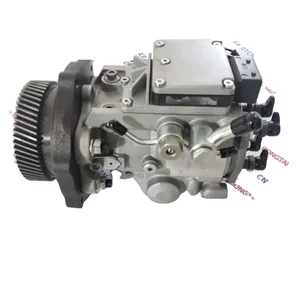

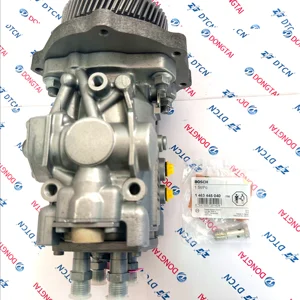

VP44 Fuel Injection Pump 0470504026 0470504030 0470504045 Compatible For ISUZU 4JH1 Dmax
$1,593.62

08 Mar 2025
0.1102[0.05] pounds
CN: dlouasw
VP44 Fuel Injection Pump 0470504026 0470504030 0470504045 Compatible For ISUZU 4JH1 Dmax
DENGUSYO VP44 Fuel Injection Pump 0470504026 0470504030 0470504045 Compatible For ISUZU 4JH1 Dmax || Stable pressure Can provide stable fuel pressure, ensuring precise injection of fuel into the engine cylinder. For example, under different working conditions of the car (such as idle, acceleration, climbing, etc.), the fuel pump can supply fuel at an appropriate pressure, allowing the engine to burn more fully and the power output to be more stable. || Efficient fuel delivery The fuel pump operates efficiently and can quickly deliver fuel from the tank to the engine. Like a powerful 'small water pump', it can timely meet the engine's fuel demand and ensure the continuous and stable operation of the engine. || Good durability Usually made of good materials and advanced manufacturing processes, it can withstand the corrosion of fuel and wear during long-term operation. This means that it can work stably throughout the entire life cycle of the car, reducing the frequency of maintenance and replacement. || Energy saving: Some advanced fuel pumps can intelligently adjust the fuel delivery amount according to the actual needs of the engine, avoiding fuel waste and helping to improve the fuel economy of cars.
VP44 Fuel Injection Pump 0470504026 0470504030 0470504045 Compatible For ISUZU 4JH1 Dmax
$1,758.24

08 Mar 2025
0.1102[0.05] pounds
CN: rongjj5 shop
VP44 Fuel Injection Pump 0470504026 0470504030 0470504045 Compatible For ISUZU 4JH1 Dmax
ZVVSBGYU Low noise operation: The optimized design of the pump body structure effectively reduces the noise generated during operation, creating a quiet and comfortable driving environment for you. || Efficient power output: Adopting advanced technology to provide stable and strong fuel delivery pressure, optimizing engine performance, and enhancing vehicle power. || Durable material construction: The shell is made of high-strength and corrosion-resistant materials, and the internal components are specially treated to extend their service life and reduce maintenance frequency. || Precise adaptation: Accurate matching ensures seamless installation without the need for modification. || Improving driving stability: A stable fuel supply ensures smooth engine operation, reduces vehicle shaking and jolting, and enhances driving comfort and stability.
VP44 Fuel Injection Pump 0470504026 0470504030 0470504045 Compatible for ISUZU 4JH1 Dmax
$2,030.29

04 Jan 2025
0.1102[0.05] pounds
CN: xuelianmaoyi
VP44 Fuel Injection Pump 0470504026 0470504030 0470504045 Compatible for ISUZU 4JH1 Dmax
Gvgsgtyu 0470504026 0470504030 0470504045 4JH1 || Easy installation: No complex debugging process required, users can use it directly, greatly saving installation time and labor costs. || Easy to maintain: The product design emphasizes practicality, easy disassembly and cleaning, effectively reducing maintenance costs and time. || Reduce vibration: During the operation of the fuel pump, it can effectively reduce vibration transmission, ensure smooth operation of the equipment, and reduce noise and wear. || Long lifespan: Through advanced manufacturing processes and high-quality materials, the service life of fuel pumps has been effectively extended, improving the overall integrity of the equipment.

Components :

0. INJECTION-PUMP ASSEMBLY 109341-1006
1. _
2. FUEL INJECTION PUMP 109241-1006
3. NUMBER PLATE
4. _
5. CAPSULE
6. ADJUSTING DEVICE
7. NOZZLE AND HOLDER ASSY 105118-8133
8. Nozzle and Holder
9. Open Pre:MPa(Kqf/cm2) 19.0{194}/33.5{342}
10. NOZZLE-HOLDER 105048-2270
11. NOZZLE 105017-3000

Scheme ###:

PACKING RING
3. [1] 149351-0201 PACKING RING
7. [1] 149050-0220 SUPPLY PUMP
9. [1] 149055-0000 SUPPORT RING
10. [4] 149330-2000 TORX SCREW
12. [1] 149100-1120 DRIVE SHAFT
17/1. [1] 149110-0000 SHIM D42.5627.1T2.2
17/1B. [1] 149110-0100 SHIM D42.5&27.1T2.3
17/1C. [1] 149110-0200 SHIM D42.5&27.1T2.4
17/1D. [1] 149110-0300 SHIM D42.5&27.1T2.5
17/1E. [1] 149110-0400 SHIM D42.5&27.1T2.6
17/1F. [1] 149110-0500 SHIM D42.5&27.1T2.7
17/1G. [1] 149110-0600 SHIM D42.5&27.1T2.8
17/1H. [1] 149110-0700 SHIM D42.5&27.1T2.9
17/1I. [1] 149110-0800 SHIM D42.5&27.1T3.0
17/1J. [1] 149110-0900 SHIM D42.5&27.1T3.1
17/1K. [1] 149110-1000 SHIM D42.5&27.1T3.2
17B/1. [1] 149110-1200 SHIM D42.5&27.1T2.2
17B/1B. [1] 149110-1300 SHIM D42.5&27.1T2.3
17B/1C. [1] 149110-1400 SHIM D42.5&27.1T2.4
17B/1D. [1] 149110-1500 SHIM D42.5&27.1T2.5
17B/1E. [1] 149110-1600 SHIM D42.5&27.1T2.6
17B/1F. [1] 149110-1700 SHIM D42.5&27.1T2.7
17B/1G. [1] 149110-1800 SHIM D42.5&27.1T2.8
17B/1H. [1] 149110-1900 SHIM D42.5&27.1T2.9
17B/1I. [1] 149110-2000 SHIM D42.5&27.1T3.0
17B/1J. [1] 149110-2100 SHIM D42.5&27.1T3.1
17B/1K. [1] 149110-2200 SHIM D42.5&27.1T3.2
19. [1] 149111-0000 DRIVER DISC
20. [1] 149120-0820 CAM RING
21. [2] 149112-0200 ROLLER SHOE
22. [2] 149113-0300 ROLLER
23. [1] 149111-0100 PLATE
25. [1] 149114-0000 BEARING PLATE
30. [1] 149350-3300 O-RING
35. [1] 149170-0022 HYDRAULIC STOPPER
36. [1] 149350-3400 O-RING
37. [1] 149180-0300 CLOSING COVER
38. [2] 149330-2900 TORX BOLT
39. [1] 149350-1700 SEAL RING
42. [1] 149164-0000 COILED SPRING
49. [4] 149330-3900 TORX BOLT
50. [1] 149201-0522 HYDRAULIC HEAD
51. [3] 149350-2000 O-RING
54. [4] 149313-2700 GASKET
58. [4] 149300-1120 PRESSURE-CONTROL VALVE
61. [3] 149330-3400 TORX BOLT
62. [1] 149436-0100 PLATE
63. [1] 149350-1900 O-RING
104. [2] 149330-3500 HEX-SOCKET-HEAD CAP SCREW
105. [2] 149443-0200 GASKET
107. [1] 149403-0420 SENSOR
109. [3] 149330-1600 TORX BOLT
111. [2] 149330-0501 TORX SCREW
123. [5] 149330-3900 TORX BOLT
127. [1] 149350-2800 SEAL RING
133. [1] 149350-3500 O-RING
134. [1] 149350-3600 O-RING
135. [1] 149060-0520 CONTROL VALVE
206. [1] 149330-2500 UNION NUT
207. [1] 149412-0100 PLAIN WASHER
243. [1] 149330-3500 HEX-SOCKET-HEAD CAP SCREW
244. [1] 149443-0200 GASKET
270. [1] 149411-2500 COUPLING PLATE
271/1. [1] 149411-0200 SHIM T0.5
271/1B. [1] 149411-0300 SHIM T0.6
271/1C. [1] 149411-0400 SHIM T0.7
271/1D. [1] 149411-0500 SHIM T0.8
271/1E. [1] 149411-0600 SHIM T0.9
271/1F. [1] 149411-0700 SHIM T1.0
271/1G. [1] 149411-0800 SHIM T1.1
271/1H. [1] 149411-0900 SHIM T1.2
271/1I. [1] 149411-1000 SHIM T1.3
271/1J. [1] 149411-1100 SHIM T1.4
271/1K. [1] 149411-1200 SHIM T1.5
271B/1. [1] 149411-2800 SHIM T0.5
271B/1B. [1] 149411-2900 SHIM T0.6
271B/1C. [1] 149411-3000 SHIM T0.7
271B/1D. [1] 149411-3100 SHIM T0.8
271B/1E. [1] 149411-3200 SHIM T0.9
271B/1F. [1] 149411-3300 SHIM T1.0
271B/1G. [1] 149411-3400 SHIM T1.1
271B/1H. [1] 149411-3500 SHIM T1.2
271B/1I. [1] 149411-3600 SHIM T1.3
271B/1J. [1] 149411-3700 SHIM T1.4
271B/1K. [1] 149411-3800 SHIM T1.5
392. [1] 149350-3700 O-RING
393. [1] 149419-0600 BLEEDER SCREW
394. [1] 149420-0001 INTERMEDIATE PLATE
400. [1] 149460-1300 CABLE CRAMP
425. [2] 149330-3300 TORX BOLT
471. [1] 149410-0000 COVER
480. [1] 149350-3800 SEAL RING
800S. [1] 149480-0020 SERVICE PARTS GROUP
801S. [1] 149481-0220 PARTS SET
804S. [1] 149483-0020 PARTS SET
804S/14. [1] 149350-1800 O-RING
804S/14. [1] 149350-1800 O-RING
804S/15. [1] 149350-1900 O-RING
804S/15. [1] 149350-1900 O-RING
805S. [1] 149482-0220 PARTS SET
805S. [1] 149482-0220 PARTS SET
805S. [1] 149482-0220 PARTS SET
805S. [1] 149482-0220 PARTS SET
805S. [1] 149482-0220 PARTS SET
805S. [1] 149482-0220 PARTS SET
805S. [1] 149482-0220 PARTS SET
805S. [1] 149482-0220 PARTS SET
902. [1] 149433-0021 OUTLET PIPE ASSY
902/1. [1] 149070-0120 OVER FLOW VALVE
902/2. [1] 149430-0120 INLET UNION
902/3. [2] 149350-2700 FLAT SEAL RING
903. [1] 149428-0021 INLET PIPE
903/1. [1] 149071-0120 EYE BOLT
903/2. [1] 149425-0920 INLET UNION
903/3. [2] 149350-2600 FLAT SEAL RING
921. [1] 149465-0322 BRACKET
922. [1] 149470-0300 TOOTHED GEAR
923. [1] 149350-1400 O-RING
926. [4] 149442-0101 BLEEDER SCREW
927. [4] 149413-0101 UNION NUT

Include in #2:

109341-1006 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num
Bosch num
Firm num
Name
109341-1006
0 470 504 030
8972492384  ISUZU
INJECTION-PUMP ASSEMBLY
4JA1 585 K 13CJ VP44 VP44




Information:

start by:a) remove governor 1. Bend the lock down. Remove two bolts (4) and torque spring (2).2. Remove high idle screw (3).3. Remove the two bolts and bracket (1). The bolt that holds the governor housing to the governor plate can be removed at this time. 4. Bend lock (7) down and remove the bolt from control lever (8). Remove shaft (5) and the control lever. Remove the lip type seals from housing (6). 5. Remove two bearings (9) from the housing. 6. Remove seat (10), spring washer (11), flat washer (12), spring washer (13) and spring (14). 7. Remove washer (16). Remove ring (17) from the seat. Remove the dowel from the seat and remove the governor bolt (15) and seat as a unit. 8. Remove the governor bolt, top washer (18), spring (19) and bottom washer (20) from the top of the servo piston.9. Remove the race, bearing and race from the bottom of the sleeve.10. Remove the lock from the flywheel assembly. Remove the flywheel assembly. 11. Bend locks (22) back. Remove bolts (25). Remove bracket (24) and pin (23) as a unit. 12. Remove shaft (26) from the bracket assembly with a hammer and punch.13. Remove levers (28) and spring (27) from the bracket assembly.14. Remove servo piston assembly (21) through the bottom of the governor plate. 15. Remove sleeve (31) from servo piston cylinder (29). Remove piston (32) from the cylinder. Remove the O-ring seals from cylinder (29) and seal (30) from the piston. 16. Remove dowel (36). Remove drive assembly (33) and stop (35). Remove the snap ring with tool (A) from the bottom of gear (34). Remove gear (34).17. Remove the bearing for gear (34) from the governor plate.Assemble Governor (Earlier)
1. If replacement of the dowels in the governor plate is necessary, see illustration for correct installation dimensions. 2. Install the bearing for drive gear (2) in the governor plate with tooling (A) until it is .020 in. (0.51 mm) from the top surface of the governor plate.3. Install drive gear (2). Install ring (1) with tool (B). 4. Put valve (4) in piston (5). Install piston (5) in sleeve (3).5. Install the O-ring seals on cylinder (6).6. Install the servo piston assembly valve (4), piston (5), sleeve (3) and cylinder (6) through the bottom of the governor plate. The valve, piston, sleeve and cylinder are parts of the servo piston assembly. Put the notch in cylinder (6) in alignment with the holes in lever (9). Install shaft (7). 8. Install pin (11) in bracket assembly (10) with the grooves in pin (11) engaged with lever (9). 9. Put the bracket assembly into position on the governor plate with pin (11) engaged with the servo piston assembly as shown. Install the bolts and locks that hold bracket assembly (10) to the governor plate. 10. Install the flyweight and gear assembly on the servo piston assembly. Install lock (22).11. Install race (17), bearing (20) and race (24) on sleeve (21). Install the

Have questions with 109341-1006?





Group cross 109341-1006 ZEXEL

109341-1000


INJECTION-PUMP ASSEMBLY

Isuzu

109341-1001

109341-1002

8972492380
INJECTION-PUMP ASSEMBLY
4JA1 585
109341-1002

109341-1006


INJECTION-PUMP ASSEMBLY
4JA1 585
109341-1003

109341-1004

8972492381
INJECTION-PUMP ASSEMBLY
4JA1 585
109341-1004

109341-1005
F 01G 29X 062
8972492382
INJECTION-PUMP ASSEMBLY
4JA1 585
109341-1005

109341-1006
9 461 629 115
8972492383
INJECTION-PUMP ASSEMBLY
4JA1 585
109341-1006
0 470 504 030
8972492384
INJECTION-PUMP ASSEMBLY
4JA1 585
