Information injection-pump assembly
BOSCH
F 019 Z1D 003
f019z1d003
ZEXEL
109144-3053
1091443053
MITSUBISHI
ME204338
me204338

Rating:
Compare Prices: .
As an associate, we earn commssions on qualifying purchases through the links below

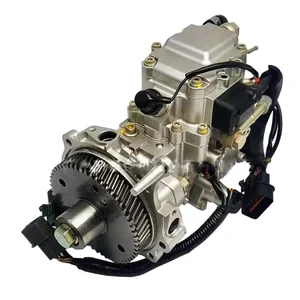

Fuel Injection Pump ME190711 ME204338 Compatible For Mitsubishi Pajero V68 V78 4M41
ZVVSBGYU Low noise operation: The optimized design of the pump body structure effectively reduces the noise generated during operation, creating a quiet and comfortable driving environment for you. || Efficient power output: Adopting advanced technology to provide stable and strong fuel delivery pressure, optimizing engine performance, and enhancing vehicle power. || Durable material construction: The shell is made of high-strength and corrosion-resistant materials, and the internal components are specially treated to extend their service life and reduce maintenance frequency. || Precise adaptation: Accurate matching ensures seamless installation without the need for modification. || Improving driving stability: A stable fuel supply ensures smooth engine operation, reduces vehicle shaking and jolting, and enhances driving comfort and stability.
ZVVSBGYU Low noise operation: The optimized design of the pump body structure effectively reduces the noise generated during operation, creating a quiet and comfortable driving environment for you. || Efficient power output: Adopting advanced technology to provide stable and strong fuel delivery pressure, optimizing engine performance, and enhancing vehicle power. || Durable material construction: The shell is made of high-strength and corrosion-resistant materials, and the internal components are specially treated to extend their service life and reduce maintenance frequency. || Precise adaptation: Accurate matching ensures seamless installation without the need for modification. || Improving driving stability: A stable fuel supply ensures smooth engine operation, reduces vehicle shaking and jolting, and enhances driving comfort and stability.

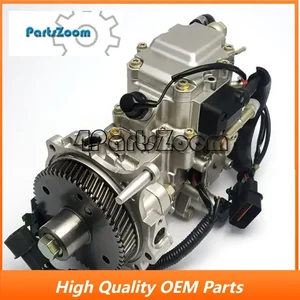

JHDKDFN Fuel Injection Pump ME190711 ME204338, Compatible for Mitsubishi Pajero V68 V78 4M41
JHDKDFN OEM NO. : ME190711,ME204338 || Fuel pump: stable performance, long service life || Low noise: able to provide a comfortable environment || Automotive fuel pump: stable pressure, able to maintain stable fuel output || High pressure fuel pump: capable of quickly and accurately delivering fuel to the engine
JHDKDFN OEM NO. : ME190711,ME204338 || Fuel pump: stable performance, long service life || Low noise: able to provide a comfortable environment || Automotive fuel pump: stable pressure, able to maintain stable fuel output || High pressure fuel pump: capable of quickly and accurately delivering fuel to the engine

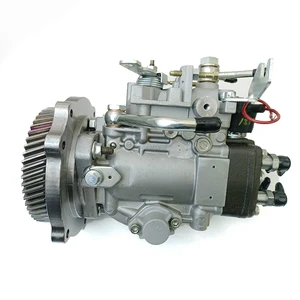

OCTOT Fuel Injection Pump ME190711 ME204338 Fits For Mitsubishis V68 V78 Engine 4M41
OCTOT Part Name: Fuel Injection Pump || Part Number: ME190711 ME204338 Note: Please check the fitment carefully before purchase. Or just tell us the part number you need. || Engine Model: 4M41 || Applicable: Fits For Mitsubishis V68 V78 Engine 4M41 || Package included: 1pcs Fuel Injection Pump ME190711 ME204338
OCTOT Part Name: Fuel Injection Pump || Part Number: ME190711 ME204338 Note: Please check the fitment carefully before purchase. Or just tell us the part number you need. || Engine Model: 4M41 || Applicable: Fits For Mitsubishis V68 V78 Engine 4M41 || Package included: 1pcs Fuel Injection Pump ME190711 ME204338
You can express buy:
USD 3300
16-09-2023
16-09-2023

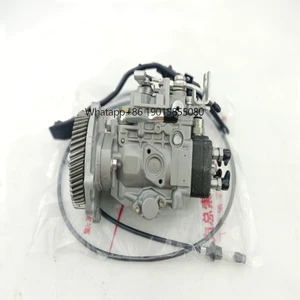

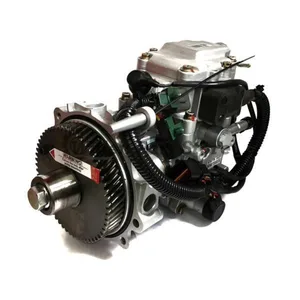

Fuel Injection Pump Car Fuel Injection Pump Assembly For Mitsubishi Pajero V68 V78 4M41 Me190711 Me204338
Components :
0. | INJECTION-PUMP ASSEMBLY | 109144-3053 |
1. | _ | |
2. | FUEL INJECTION PUMP | 109044-3043 |
3. | NUMBER PLATE | |
4. | _ | |
5. | CAPSULE | |
6. | ADJUSTING DEVICE | |
7. | NOZZLE AND HOLDER ASSY | 105118-7833 |
8. | Nozzle and Holder | ME203961 |
9. | Open Pre:MPa(Kqf/cm2) | 17.6{179}/21.6{220} |
10. | NOZZLE-HOLDER | 105048-4410 |
11. | NOZZLE | 105019-1240 |
Scheme ###:
2. | [1] | 149520-0120 | BLEEDER SCREW |
3. | [1] | 149420-0001 | INTERMEDIATE PLATE |
5. | [1] | 149555-0000 | COVER |
6. | [1] | 149550-0020 | SUPPLY PUMP |
7. | [1] | 149911-0000 | O-RING |
8. | [1] | 149556-0000 | COVER |
9. | [1] | 149912-0200 | SEAL RING |
10. | [3] | 149916-0300 | TORX SCREW |
11. | [1] | 149916-0400 | TORX SCREW |
15. | [1] | 149600-0000 | DRIVE SHAFT |
16. | [1] | 149601-0000 | KEY |
17. | [1] | 149602-0000 | PLAIN WASHER |
17B. | [1] | 149602-0100 | PLAIN WASHER |
17C. | [1] | 149602-0200 | PLAIN WASHER |
17D. | [1] | 149602-0300 | PLAIN WASHER |
17E. | [1] | 149602-0400 | PLAIN WASHER |
17F. | [1] | 149602-0500 | PLAIN WASHER |
17G. | [1] | 149602-0600 | PLAIN WASHER |
17H. | [1] | 149602-0700 | PLAIN WASHER |
17I. | [1] | 149602-0800 | PLAIN WASHER |
17J. | [1] | 149602-0900 | PLAIN WASHER |
17K. | [1] | 149602-1000 | PLAIN WASHER |
18. | [1] | 149604-0000 | LOCKING WASHER |
20. | [1] | 149605-0000 | BEARING PLATE |
22. | [1] | 149606-0000 | COILED SPRING |
25. | [1] | 149610-0200 | CAM RING |
26. | [1] | 149615-0001 | PLATE |
26B. | [1] | 149615-0101 | PLATE |
26C. | [1] | 149615-0201 | PLATE |
26D. | [1] | 149615-0301 | PLATE |
26E. | [1] | 149615-0401 | PLATE |
26F. | [1] | 149615-0501 | PLATE |
26G. | [1] | 149615-0601 | PLATE |
26H. | [1] | 149615-0701 | PLATE |
26I. | [1] | 149615-0801 | PLATE |
26J. | [1] | 149615-0901 | PLATE |
26K. | [1] | 149615-1001 | PLATE |
26L. | [1] | 149615-1101 | PLATE |
26M. | [1] | 149615-1201 | PLATE |
27. | [2] | 149915-0000 | TORX BOLT |
31. | [1] | 149651-0000 | SLIDING PIECE |
33. | [1] | 149652-0000 | COILED SPRING |
34. | [1] | 149653-0600 | SHIM |
35. | [2] | 149911-0100 | O-RING |
35. | [2] | 149911-0100 | O-RING |
36. | [1] | 149670-0001 | PLATE |
37. | [1] | 479765-6720 | TIMER PISTON SENSOR |
38. | [2] | 149917-1300 | BLEEDER SCREW |
40. | [1] | 149911-0200 | O-RING |
41. | [1] | 149911-0300 | O-RING |
42. | [1] | 149660-1020 | COVER |
43. | [4] | 149915-0600 | TORX BOLT |
45. | [2] | 149620-0000 | ROLLER |
46. | [2] | 149621-0000 | SHOE |
50. | [1] | 149701-0520 | HYDRAULIC HEAD |
50. | [1] | 149701-0520 | HYDRAULIC HEAD |
50. | [1] | 149701-0520 | HYDRAULIC HEAD |
50. | [1] | 149701-0520 | HYDRAULIC HEAD |
50. | [1] | 149701-0520 | HYDRAULIC HEAD |
51. | [2] | 146600-0000 | O-RING |
53. | [1] | 149720-0000 | SHIM |
53B. | [1] | 149720-0100 | SHIM |
53C. | [1] | 149720-0200 | SHIM |
53D. | [1] | 149720-0300 | SHIM |
54. | [1] | 016020-1410 | LOCKING WASHER |
55. | [4] | 146433-0100 | GASKET D12&6.4T1.00 |
56. | [4] | 149300-0421 | PRESSURE-CONTROL VALVE |
60. | [4] | 149915-0100 | TORX BOLT |
61. | [1] | 149722-0020 | CAPSULE |
61/2. | [1] | 146600-0500 | O-RING |
65. | [1] | 149805-0621 | GOVERNOR;ELECTRIC |
66. | [6] | 149915-0900 | TORX BOLT |
80. | [1] | 106144-1130 | TIMING CONTROL VALVE |
80/7. | [1] | 161440-3800 | O-RING |
80/8. | [1] | 161440-3700 | O-RING |
82. | [1] | 149913-0100 | BACKUP RING |
83. | [2] | 149915-0300 | TORX BOLT |
100. | [1] | 149571-0200 | EYE BOLT |
101. | [2] | 139512-0500 | GASKET |
102. | [1] | 149920-1620 | INLET UNION |
110. | [1] | 149570-0521 | OVER FLOW VALVE |
111. | [2] | 139512-0500 | GASKET |
112. | [1] | 149920-1720 | INLET UNION |
120. | [1] | 149570-0320 | OVER FLOW VALVE |
121. | [2] | 139512-0500 | GASKET |
122. | [1] | 149920-1520 | INLET UNION |
130. | [1] | 149560-0120 | CONTROL VALVE |
150. | [1] | 149900-0220 | PULLING ELECTROMAGNET |
150/9. | [1] | 149912-0500 | SEAL RING |
151. | [1] | 149575-0001 | FILTER |
153. | [1] | 146621-1000 | UNION NUT |
160. | [1] | 479778-6421 | EEPROM ASSY |
161. | [4] | 149915-0500 | TORX BOLT |
205. | [1] | 149935-0000 | WOODRUFF KEY |
255. | [1] | 148650-0000 | BINDER |
256. | [1] | 148650-1500 | TUBE |
258. | [1] | 148650-1700 | PAD |
800S. | [1] | 149500-0420 | PUMP HOUSING |
810S. | [1] | 149960-0020 | REPAIR SET |
856S. | [1] | 148851-4410 | CONNECTOR |
878S. | [1] | 149912-0800 | SEAL RING |
905. | [1] | 149950-4900 | NAMEPLATE |
910. | [1] | 149930-0620 | BRACKET OEM:ME203139 |
911. | [1] | 149911-0600 | O-RING OEM:MF520407 |
912. | [3] | 149919-0000 | PLAIN WASHER OEM:MF450006 |
914. | [3] | 149918-0000 | UNION NUT OEM:MF434105 |
920. | [1] | 149931-1920 | TOOTHED GEAR OEM:ME204368 |
922. | [1] | 149918-0400 | UNION NUT OEM:ME204337 |
923. | [1] | 149931-0600 | PLATE OEM:ME203076 |
925. | [4] | 149917-1400 | BLEEDER SCREW OEM:MH001566 |
930. | [1] | 149925-0520 | BRACKET OEM:ME203989 |
931. | [3] | 149917-1000 | BLEEDER SCREW OEM:MF140227 |
948. | [1] | 149921-0200 | HOSE OEM:MS603003 |
949. | [2] | 149922-0000 | HOSE CLIP OEM:MS660164 |
949. | [2] | 149922-0000 | HOSE CLIP OEM:MS660164 |
950. | [1] | 148650-1600 | TUBE |
955. | [2] | 149945-0220 | PULSE GENERATOR OEM:ME203180 |
956. | [2] | 149917-0700 | BLEEDER SCREW OEM:MF140005 |
Include in #2:
109144-3053
as INJECTION-PUMP ASSEMBLY
Cross reference number
BOSCH
F 019 Z1D 003
f019z1d003
ZEXEL
109144-3053
1091443053
MITSUBISHI
ME204338
me204338
Zexel num
Bosch num
Firm num
Name
109144-3053
F 019 Z1D 003
ME204338 MITSUBISHI
INJECTION-PUMP ASSEMBLY
4M41 TC K 12CA INJECTION PUMP ASSY VR4 VR
4M41 TC K 12CA INJECTION PUMP ASSY VR4 VR
Calibration Data:
Adjustment conditions
Test oil
ISO4113
Nozzle and nozzle holder assembly
1 688 901 035
Opening pressure
bar
207
207
210
Injection pipe
157808-4720
Injection pipe
Inside diameter - outside diameter - length (mm) mm 1.6-6-45 0
Inside diameter - outside diameter - length (mm) mm 1.6-6-45 0
Cooling unit
1 687 010 130
Joint assembly
157641-6820
Transfer pump pressure
kPa
40
40
40
Transfer pump pressure
kgf/cm2
0.4
0.4
0.4
Direction of rotation (viewed from drive side)
Right R
Right R
Manual controller assembly
157966-4020
ECU assembly
157966-3820
Manual controller main harness
157966-4920
Manual controller intermediate harness
157966-5720
ROM harness
157966-5020
ROM intermediate harness
157966-2421
0000000201
Pre-stroke
deg.
2.5
2
3
Injection quantity adjustment
Max. applied voltage
V
8
8
8
Test voltage
V
13
12
14
Test data Ex:
Injection timing adjustment INJECTION PUMP PRE-STROKE

Key groove position at cylinder B's beginning of injection
A = key
B = B cylinder's beginning of static injection
C = when viewed from drive side
----------
----------
a=163.5deg
----------
----------
a=163.5deg
Information:
Parts Needed
6 - 6I2538 Clip Add injectors and related seals if clip is broken in more than three pieces. Add 336044 O-Ring Seal if thrust pad o-ring is damaged.
Action Required
Parts Stock
Remove all of the following injector groups from parts stock. Rework as described in the attached procedure and return to stock.
4P1410 Injector Group4P1420 Injector Group4P2810 Injector Group4P2820 Injector Group4P9510 Injector Group4P9520 Injector Group4P9610 Injector Group4P9620 Injector Group0R3177 Injector Group0R3178 Injector Group0R3400 Injector GroupAffected Product
Rework the injector groups as described in the attached procedure.
Service Claim Allowances
Parts Stock
Submit one claim for all injector groups removed from parts stock and reworked. List the labor to repair each injector on a separate labor line. A maximum of .2 hours labor per fuel injector will be allowed to remove and install the clip.
Affected Product
Parts Disposition
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
Attach.
(1-Rework Procedure)Rework Procedure
Parts Stock or Off Engine
Illustration 1 - 9U5300 Unit Injector Spring Compressor Group
Illustration 2 - Compressor Group In Bench Vice
Illustration 3 - Use caution when handling injectors with missing clips. Loose springs and retainers will allow ball to come loose and fall into the engine.1. Remove injectors from packaging and inspect for a paint stripe across the top face of the spring retainer (either yellow or red). The paint stripe indicates the unit injector has been reworked previously. If a clip has failed and the spring/tappet/plunger are loose, use care during injector removal. The plunger retention ball (see Illustration 3) can drop out and fall into the cylinder/engine.
2. Install service tool in a bench vice as shown in Illustration 2 (position to allow for horizontal installation of injector).3. Use an o-ring pick to remove the o-ring from the injector spring retainer. Remove the rocker arm thrust pad.4. Install the injector in the 9U5300 Unit Injector Spring Compressor Group. Tighten the 5P0541 Nut to compress the spring enough to allow removal of the clip (the clip works like a valve keeper).5. Use a small magnet (pencil size works best) and a suitable clip removal tool to remove the oil clip from the injector. Do not release tension on the spring until a new clip is installed. Releasing tension before a new clip is installed will cause the injector will come apart.
6. Injectors removed from engines only. Inspect the clip that was removed. If the clip is broken in more than three (3) pieces (or if you suspect small pieces have fallen into the injector) the unit injector must be replaced.7. Install a new 6I2538 clip and remove injector from spring compressor group.8. Install thrust pad and thrust pad retaining o-ring. If the thrust pad retaining o-ring is damaged install a new 336044 O-Ring Seal.
9. Mark across the top face of the spring retainer with a yellow paint stripe.10. Repackage new parts and mark "3X" on the box.Affected Product
1. Check for 3X stamped on the block next to the serial number plate. If the block has been stamped do not proceed with the rework unless suspect injectors
6 - 6I2538 Clip Add injectors and related seals if clip is broken in more than three pieces. Add 336044 O-Ring Seal if thrust pad o-ring is damaged.
Action Required
Parts Stock
Remove all of the following injector groups from parts stock. Rework as described in the attached procedure and return to stock.
4P1410 Injector Group4P1420 Injector Group4P2810 Injector Group4P2820 Injector Group4P9510 Injector Group4P9520 Injector Group4P9610 Injector Group4P9620 Injector Group0R3177 Injector Group0R3178 Injector Group0R3400 Injector GroupAffected Product
Rework the injector groups as described in the attached procedure.
Service Claim Allowances
Parts Stock
Submit one claim for all injector groups removed from parts stock and reworked. List the labor to repair each injector on a separate labor line. A maximum of .2 hours labor per fuel injector will be allowed to remove and install the clip.
Affected Product
Parts Disposition
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
Attach.
(1-Rework Procedure)Rework Procedure
Parts Stock or Off Engine
Illustration 1 - 9U5300 Unit Injector Spring Compressor Group
Illustration 2 - Compressor Group In Bench Vice
Illustration 3 - Use caution when handling injectors with missing clips. Loose springs and retainers will allow ball to come loose and fall into the engine.1. Remove injectors from packaging and inspect for a paint stripe across the top face of the spring retainer (either yellow or red). The paint stripe indicates the unit injector has been reworked previously. If a clip has failed and the spring/tappet/plunger are loose, use care during injector removal. The plunger retention ball (see Illustration 3) can drop out and fall into the cylinder/engine.
2. Install service tool in a bench vice as shown in Illustration 2 (position to allow for horizontal installation of injector).3. Use an o-ring pick to remove the o-ring from the injector spring retainer. Remove the rocker arm thrust pad.4. Install the injector in the 9U5300 Unit Injector Spring Compressor Group. Tighten the 5P0541 Nut to compress the spring enough to allow removal of the clip (the clip works like a valve keeper).5. Use a small magnet (pencil size works best) and a suitable clip removal tool to remove the oil clip from the injector. Do not release tension on the spring until a new clip is installed. Releasing tension before a new clip is installed will cause the injector will come apart.
6. Injectors removed from engines only. Inspect the clip that was removed. If the clip is broken in more than three (3) pieces (or if you suspect small pieces have fallen into the injector) the unit injector must be replaced.7. Install a new 6I2538 clip and remove injector from spring compressor group.8. Install thrust pad and thrust pad retaining o-ring. If the thrust pad retaining o-ring is damaged install a new 336044 O-Ring Seal.
9. Mark across the top face of the spring retainer with a yellow paint stripe.10. Repackage new parts and mark "3X" on the box.Affected Product
1. Check for 3X stamped on the block next to the serial number plate. If the block has been stamped do not proceed with the rework unless suspect injectors
Have questions with 109144-3053?
Group cross 109144-3053 ZEXEL
Mitsubishi
Mitsubishi
Mitsubishi
Mitsubishi
Mitsubishi
Mitsubishi
109144-3053
F 019 Z1D 003
ME204338
INJECTION-PUMP ASSEMBLY
4M41 TC
4M41 TC
