108822-2132 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1088222132

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

ZEXEL 108822-2132 1088222132

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 108822-2132 zexel genuine, new aftermarket engine parts with delivery

Service parts 108822-2132 INJECTION-PUMP ASSEMBLY:

1. _

2. FUEL INJECTION PUMP 108082-3170

3. GOVERNOR 105923-1032

4. SUPPLY PUMP

105237-4810

5. AUTOM. ADVANCE MECHANIS

6. COUPLING PLATE 105664-0990

7. COUPLING PLATE

8. _ 159590-9820

9. _ 156640-0420

10. NOZZLE AND HOLDER ASSY 105110-7391

11. Nozzle and Holder ME161933

12. Open Pre:MPa(Kqf/cm2) 15.7{160}/24.5{250}

13. NOZZLE-HOLDER 105041-4101

14. NOZZLE

15. NOZZLE SET 105019-0380

Include in #1:

108822-2132 as INJECTION-PUMP ASSEMBLY

Cross reference number

ZEXEL 108822-2132 1088222132

Zexel num

Bosch num

Firm num

Name

108822-2132

INJECTION-PUMP ASSEMBLY

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8250

Bosch type code 1 688 901 101

Nozzle 105780-0120

Bosch type code 1 688 901 990

Nozzle holder 105780-2190

Opening pressure MPa 20.7

Opening pressure kgf/cm2 211

Injection pipe
Outer diameter - inner diameter - length (mm) mm 8-3-600

Overflow valve 131425-0220

Overflow valve opening pressure kPa 157 123 191

Overflow valve opening pressure kgf/cm2 1.6 1.25 1.95

Tester oil delivery pressure kPa 255 255 255

Tester oil delivery pressure kgf/cm2 2.6 2.6 2.6

PS/ACT control unit part no. 407980-2 24*

Digi switch no. 42

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-2-7-3- 4-5-6-8

Pre-stroke mm 8.5 8.47 8.53

Beginning of injection position
Governor side NO.1

Difference between angles 1
Cyl.1-2 deg. 45 44.75 45.25

Difference between angles 2
Cal 1-7 deg. 90 89.75 90.25

Difference between angles 3
Cal 1-3 deg. 135 134.75 135.25

Difference between angles 4
Cal 1-4 deg. 180 179.75 180.25

Difference between angles 5
Cal 1-5 deg. 225 224.75 225.25

Difference between angles 6
Cal 1-6 deg. 270 269.75 270.25

Difference between angles 7
Cal 1-8 deg. 315 314.75 315.25

Injection quantity adjustment

Adjusting point -

Rack position 13.9

Pump speed r/min 650 650 650

Average injection quantity mm3/st. 150.5 148.9 152.1

Max. variation between cylinders % 0 -3 3

Basic *

Fixing the rack *

PS407980-224* V 2.45+-0. 01

PS407980-224* mm 6.1+-0.0 5

Standard for adjustment of the maximum variation between cylinders *

Injection quantity adjustment_02

Adjusting point Z

Rack position 9+-0.5

Pump speed r/min 320 320 320

Average injection quantity mm3/st. 23 21 25

Max. variation between cylinders % 0 -15 15

Fixing the rack *

PS407980-224* V V1+0.05+ -0.01

PS407980-224* mm 8.4+-0.0 3

Standard for adjustment of the maximum variation between cylinders *

Remarks
Refer to items regarding the pre-stroke actuator

Injection quantity adjustment_03

Adjusting point A

Rack position R1(13.9)

Pump speed r/min 650 650 650

Average injection quantity mm3/st. 150.5 149.5 151.5

Basic *

Fixing the lever *

PS407980-224* V 2.45+-0. 01

PS407980-224* mm 6.1+-0.0 5

Injection quantity adjustment_04

Adjusting point B

Rack position R1+1.7

Pump speed r/min 1100 1100 1100

Average injection quantity mm3/st. 154 150 158

Fixing the lever *

PS407980-224* V 2.45+-0. 01

PS407980-224* mm 6.1+-0.0 5

0000001601

Pre-stroke mm 8.5 8.47 8.53

Remarks
When the timing sleeve is pushed up

_02

Connector angle deg. 8.5 8.47 8.53

Remarks
When the eccentric pin is tightened

_03

Supply voltage V 24 23.5 24.5

Ambient temperature degC 23 18 28

Pre-stroke mm 6.1 6.05 6.15

Output voltage V 2.45 2.44 2.46

Adjustment *

_04

Supply voltage V 24 23.5 24.5

Ambient temperature degC 23 18 28

Pre-stroke mm 8.5 8.47 8.53

Output voltage V 1.2 1 1.4

Confirmation *

Remarks
Output voltage V1

_05

Supply voltage V 24 23.5 24.5

Ambient temperature degC 23 18 28

Pre-stroke mm 5.5

Output voltage V 3 2.98 3

Confirmation *

_06

Supply voltage V 24 23.5 24.5

Ambient temperature degC 23 18 28

Output voltage V 3.05 3.05

Confirmation of operating range *

Test data Ex:

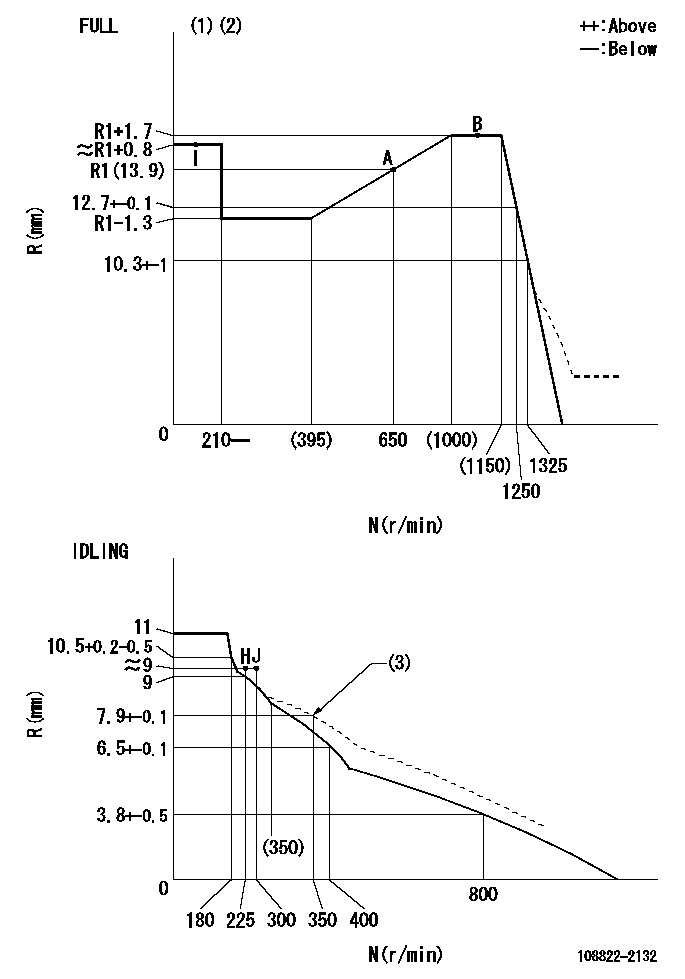

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Torque cam stamping: T1 (2)Tolerance for racks not indicated: +-0.05mm. (3)Damper spring setting
----------
T1=AC23
----------

Speed control lever angle

F:Full speed I:Idle (1)Viewed from feed pump side. (2)Use the hole at R = aa (3)Stopper bolt set position 'H'
----------
aa=37.5mm
----------
a=30deg+-5deg b=(31.5deg)+-3deg

Stop lever angle

N:Pump normal S:Stop the pump. (1)Use the hole at R = aa (2)Set the stopper bolt so that speed = bb and rack position = cc. (Confirm non-injection.) (3)Normal engine position (Rack position corresponding to dd)
----------
aa=54mm bb=1100r/min cc=4+-0.3mm dd=18mm
----------
a=41deg+-5deg b=5.5deg+-5deg c=(31deg)

0000001301

(1)Pump vertical direction (2)Coupling's key groove position at No 1 cylinder's beginning of injection (3)At the No 1 cylinder's beginning of injection position, stamp an aligning mark on the damper to align with the pointer's groove. (4)Damper (5)Pointer (6)B.T.D.C.: aa (7)Pre-stroke: bb
----------
aa=6deg bb=8.5+-0.03mm
----------
a=45deg16min+-3deg b=(44deg)

0000001901

A:Sealing position B:Pre-stroke actuator 1. When installing the pre-stroke actuator on the pump, first tighten the installation bolts loosely, then move the actuator fully counterclockwise (viewed from the drive side). Temporary tightening torque: 1 - 1.5 N.m (0.1 - 0.15 kgf.m) 2. Move the actuator in the clockwise direction when viewed from the drive side, and adjust so that it becomes the adjustment point of the adjustment value. Then tighten it. Tightening torque: 7^9 N.m (0.7^0.9 kgf.m) 3. After prestroke actuator installation adjustment, simultaneously stamp both the actuator side and housing side.
----------

----------

0000002201 RACK SENSOR

(VR) measurement voltage (I) Part number of the control unit (G) Apply red paint. (H): End surface of the pump 1. Rack sensor adjustment (-0620) (1)Fix the speed control lever at the full position (2)Set the speed to N1 r/min. (If the boost compensator is provided, apply boost pressure.) (3)Adjust the bobbin (A) so that the rack sensor's output voltage is VR+-0.01. (4)At that time, rack position must be Ra. (5)Apply G at two places. Connecting part between the joint (B) and the nut (F) Connecting part between the joint (B) and the end surface of the pump (H)
----------
N1=1100r/min Ra=R1(13.9)+1.7mm
----------

0000002301 MICRO SWITCH

Adjustment of the micro-switch Adjust the bolt to obtain the following lever position when the micro-switch is ON. (1)Speed N1 (2)Rack position Ra
----------
N1=325r/min Ra=9+-0.1mm
----------

Information:

Start By:a. remove valve covers
Do not let the tops of the fuel nozzles turn when the fuel lines are loosened. The nozzles will be damaged if the top of the nozzles turns in the body.
1. Loosen the fuel injection line nut at the nozzle end with tool (A) and a 7/8 5P0328 ( in) Crow Foot Wrench.2. Loosen the fuel line nut at the fuel injection line adapter with Tool (B). Remove inner fuel injection lines (1). Install caps and plugs on all fuel line openings to keep dirt out of the fuel system.
Typical Example If necessary, use Tool (D) to turn the engine so the valves do not make contact with the pistons when the valves are opened with Tool (C) to remove the push rods.3. Put compression on the valve springs with Tool (C), and remove push rods (2). Put identification marks on the push rods as to their location in the engine.4. Push the push rod end of the rocker arms down. 5. Remove the intake valve lifter with Tool (E) as follows:a. Install 5P2685 Nut (3) and 5P6601 Collet (4) on 5P2408 Outer Handle Assembly (5).b. Install 5P6599 Inner Handle Assembly (6) in 5P2408 Outer Handle Assembly (5).
Typical Examplec. Install Tool (E) in the intake valve lifter. Hold the 5P2408 Outer Handle Assembly and tighten the 5P6599 Inner Handle Assembly until the 5P6601 Collet is tight against the inside of the intake valve lifter.
Typical Exampled. Remove intake valve lifters (7) from the cylinder block with Tool (E). Put identification marks on the lifters as to their location in the engine.
Typical Example6. Remove the exhaust valve lifters with Tool (E) as follows:a. Install 5P2685 Nut (3) and 5P6601 Collet (4) on 5P2408 Outer Handle Assembly (5). The opening in the cylinder head assembly for the intake valve lifter is larger than the opening in the exhaust valve lifter side. The tooling and each valve lifter must be installed and removed from the intake valve lifter side.b. Install the outer handle assembly in the intake valve lifter side of the cylinder head assembly. Slide the flat area of 5P2408 Outer Handle Assembly (5) through the head casting and install the 5P6601 Collet in the exhaust valve lifters.
Typical Examplec. Install 5P6599 Inner Handle Assembly (6) in 5P2408 Outer Handle Assembly (5). Hold the 5P2408 Handle Assembly and tighten the 5P6599 Handle Assembly until the 5P6601 Collet is tight against the inside of the exhaust valve lifter.d. Pull the exhaust valve lifter up until the spring on the exhaust valve lifter is free from the cylinder block.e. Remove the 5P6599 Inner Handle Assembly. Slide the 5P2408 Outer Handle Assembly through the head casting and remove it from the intake valve lifter side of the cylinder head.
Typical Examplef. Use a magnet and remove exhaust valve lifters (8) from the intake valve lifter side of the cylinder head assembly. Put identification makes on the lifters as to their location in the engine.7. Remove the guide springs from the lifters.Install Valve
