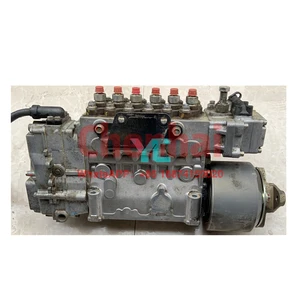

108621-0080 ZEXEL F 019 Z10 802 BOSCH INJECTION-PUMP ASSEMBLY f019z10802 1086210080 16801nb00a

Introduction
The problem that is identified below does not have a known permanent solution. Until a permanent solution is known, use the solution that is identified below.Problem
Fuel Injectors in 797F powered Off-Highway Trucks engines are not reaching expected mid-life target. The typical failure mode is a "-2" or a "-7" code on the fuel injectors.Solution
This will be an interim troubleshooting procedure to follow for trucks running with a special test software. Prior to executing this procedure, utilize Cat ® Electronic Technician (Cat ET) or Advisor to verify if any logged codes have been logged. Certain injector diagnostics do not notify the operator or light the check engine light upon activation."Fuel system verification-Test" procedure applies to trucks running with following software versions only.
Engine - LRC 3655600-31 (Test)
Engine - Tier II 5297866-05 (Test)
Engine - HAA (4x2) 3253178-39 (Test)
Engine - Tier II Custom 4727209-12 (Test)Troubleshooting Procedure
Table 1
Troubleshooting Test Steps Values Results
1. Check for Diagnostic Codes
A. Establish communication between Cat® (Electronic Technician) ET and the engine ECM. Cat ET must be configured for Dual Data Link Communications to perform this procedure. Refer to Troubleshooting, "Electronic Service Tools", if necessary.
B. Determine the diagnostic code that relates to an injector. Codes
Result: A -2 code is present.
Repair: Perform the following procedure:
1. Do not clear the diagnostic code.
Access the Fuel System Verification Test by accessing the following display screens:
- Diagnostics
- Diagnostic Tests
- Fuel System Verification Test
3. Perform the Fuel System Verification Test.
If the injector passes the test, the injector is "OK". Cat ET will clear the code.
Result: If the injector fails the test, perform the following procedure:
a. Replace the injector.
b. Flash program the trim file for the new injector into the ECM. Refer to Troubleshooting, "Injector Trim File - Install", if necessary.
c. Perform the Fuel System Verification Test again. This test will clear the active diagnostic code for the new injector. Verify that the original condition has been resolved.
Result: If the test
