Information injection-pump assembly
BOSCH
9 400 618 703
9400618703
ZEXEL
106971-5060
1069715060
NISSAN-DIESEL
1679097063
1679097063
Rating:
Service parts 106971-5060 INJECTION-PUMP ASSEMBLY:
1.
_
6.
COUPLING PLATE
7.
COUPLING PLATE
8.
_
9.
_
11.
Nozzle and Holder
16600-97013
12.
Open Pre:MPa(Kqf/cm2)
22.6{230}
15.
NOZZLE SET
Include in #1:
106971-5060
as INJECTION-PUMP ASSEMBLY
Cross reference number
BOSCH
9 400 618 703
9400618703
ZEXEL
106971-5060
1069715060
NISSAN-DIESEL
1679097063
1679097063
Zexel num
Bosch num
Firm num
Name
106971-5060
9 400 618 703
1679097063 NISSAN-DIESEL
INJECTION-PUMP ASSEMBLY
RE10TA04 * K 14CE INJECTION PUMP ASSY PE10P PE
RE10TA04 * K 14CE INJECTION PUMP ASSY PE10P PE
Calibration Data:
Adjustment conditions
Test oil
1404 Test oil ISO4113 or {SAEJ967d}
1404 Test oil ISO4113 or {SAEJ967d}
Test oil temperature
degC
40
40
45
Nozzle and nozzle holder
105780-8140
Bosch type code
EF8511/9A
Nozzle
105780-0000
Bosch type code
DN12SD12T
Nozzle holder
105780-2080
Bosch type code
EF8511/9
Opening pressure
MPa
17.2
Opening pressure
kgf/cm2
175
Injection pipe
Outer diameter - inner diameter - length (mm) mm 8-3-600
Outer diameter - inner diameter - length (mm) mm 8-3-600
Overflow valve
132424-0620
Overflow valve opening pressure
kPa
157
123
191
Overflow valve opening pressure
kgf/cm2
1.6
1.25
1.95
Tester oil delivery pressure
kPa
157
157
157
Tester oil delivery pressure
kgf/cm2
1.6
1.6
1.6
Direction of rotation (viewed from drive side)
Right R
Right R
Injection timing adjustment
Direction of rotation (viewed from drive side)
Right R
Right R
Injection order
10-9-4-3
-6-5-8-7
-2-1
Pre-stroke
mm
3
2.95
3.05
Beginning of injection position
Governor side NO.1
Governor side NO.1
Difference between angles 1
Cal 10-9 deg. 45 44.5 45.5
Cal 10-9 deg. 45 44.5 45.5
Difference between angles 2
Cal 10-4 deg. 72 71.5 72.5
Cal 10-4 deg. 72 71.5 72.5
Difference between angles 3
Cal 10-3 deg. 117 116.5 117.5
Cal 10-3 deg. 117 116.5 117.5
Difference between angles 4
Cal 10-6 deg. 144 143.5 144.5
Cal 10-6 deg. 144 143.5 144.5
Difference between angles 5
Cal 10-5 deg. 189 188.5 189.5
Cal 10-5 deg. 189 188.5 189.5
Difference between angles 6
Cal 10-8 deg. 216 215.5 216.5
Cal 10-8 deg. 216 215.5 216.5
Difference between angles 7
Cal 10-7 deg. 261 260.5 261.5
Cal 10-7 deg. 261 260.5 261.5
Difference between angles 8
Cal 10-2 deg. 288 287.5 288.5
Cal 10-2 deg. 288 287.5 288.5
Difference between angles 9
Cal 10-1 deg. 333 332.5 333.5
Cal 10-1 deg. 333 332.5 333.5
Injection quantity adjustment
Adjusting point
A
Rack position
12.8
Pump speed
r/min
775
775
775
Average injection quantity
mm3/st.
164.4
163.4
165.4
Max. variation between cylinders
%
0
-4
4
Basic
*
Fixing the lever
*
Boost pressure
kPa
103
103
Boost pressure
mmHg
770
770
Injection quantity adjustment_02
Adjusting point
D
Rack position
6.8+-0.5
Pump speed
r/min
325
325
325
Average injection quantity
mm3/st.
15.8
13.8
17.8
Max. variation between cylinders
%
0
-10
10
Fixing the rack
*
Boost pressure
kPa
0
0
0
Boost pressure
mmHg
0
0
0
Injection quantity adjustment_03
Adjusting point
F
Rack position
-
Pump speed
r/min
100
100
100
Average injection quantity
mm3/st.
190
185
195
Fixing the lever
*
Boost pressure
kPa
0
0
0
Boost pressure
mmHg
0
0
0
Rack limit
*
Boost compensator adjustment
Pump speed
r/min
600
600
600
Rack position
R1-1.15
Boost pressure
kPa
48
42.7
53.3
Boost pressure
mmHg
360
320
400
Boost compensator adjustment_02
Pump speed
r/min
600
600
600
Rack position
R1(12.8)
Boost pressure
kPa
93.3
90.6
96
Boost pressure
mmHg
700
680
720
Timer adjustment
Pump speed
r/min
750--
Advance angle
deg.
0
0
0
Remarks
Start
Start
Timer adjustment_02
Pump speed
r/min
700
Advance angle
deg.
0.5
Timer adjustment_03
Pump speed
r/min
1000
Advance angle
deg.
1.5
1
2
Timer adjustment_04
Pump speed
r/min
-
Advance angle
deg.
3.5
3.5
3.5
Remarks
Measure the actual speed, stop
Measure the actual speed, stop
Test data Ex:

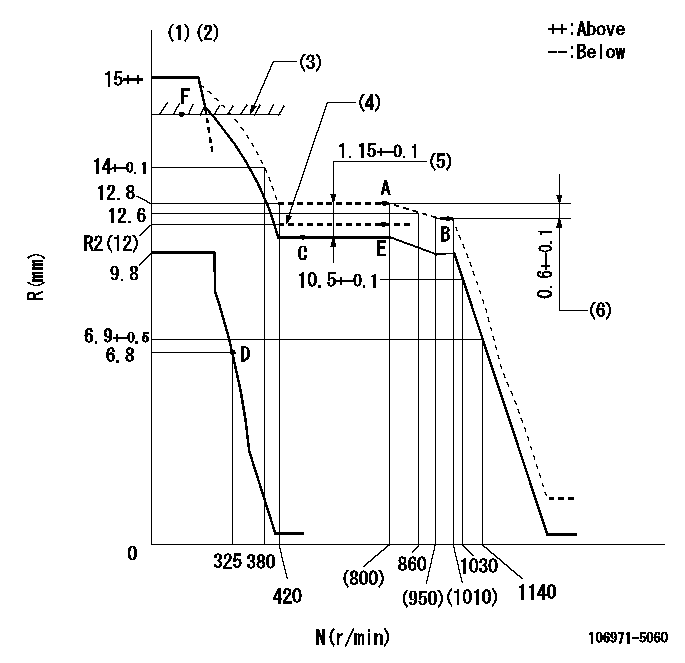

Governor adjustment
N:Pump speed
R:Rack position (mm)
(1)Target notch: K
(2)Tolerance for racks not indicated: +-0.05mm.
(3)RACK LIMIT
(4)At fuel cut lever operation
(5)Boost compensator stroke (at N = N1)
(6)Rack difference between N = N2 and N = N3
----------
K=17 N1=600r/min N2=1000r/min N3=775r/min
----------
----------
K=17 N1=600r/min N2=1000r/min N3=775r/min
----------
Speed control lever angle
F:Full speed
I:Idle
(1)Stopper bolt setting
----------
----------
a=11deg+-5deg b=19deg+-5deg
----------
----------
a=11deg+-5deg b=19deg+-5deg
Stop lever angle
N:Pump normal
S:Stop the pump.
(1)Normal
----------
----------
a=16.5deg+-5deg b=50deg+-5deg
----------
----------
a=16.5deg+-5deg b=50deg+-5deg

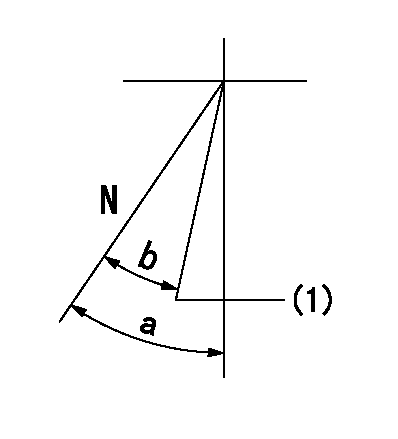

0000002501
N:Pump normal
(1)Rack position = aa (point E)
----------
aa=(12)mm
----------
a=36deg+-5deg b=(35deg)+-5deg
----------
aa=(12)mm
----------
a=36deg+-5deg b=(35deg)+-5deg
Timing setting
(1)Pump vertical direction
(2)Position of the gear's standard threaded installation hole at the start of injection for the No. 10 cylinder.
(3)-
(4)-
----------
----------
a=(50deg)
----------
----------
a=(50deg)
Information:
The information supplied in this service letter may not be valid after the termination date of this program. Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
Termination Date
July 31, 1996Problem
0R3002, 0R3003, 0R3190, 0R3389, 0R3580, 0R3742, 0R4368, 0R4369, 0R4370, 0R4374, and 0R4376 Remanufactured Unit Injectors with date codes prior to January 01, 1996 need to be removed from Parts Stock.Action Required
Remove all 0R3002, 0R3003, 0R3190, 0R3389, 0R3580, 0R3742, 0R4368, 0R4369, 0R4370, 0R4374, and 0R4376 Remanufactured Unit Injectors with date codes prior to January 01, 1996 from Parts Stock.
The date code can be located below the part name and above the part number on part number tag attached to the box. The date code is formatted as DDMMYYXXX (example; a box marked with a date code of 150195068 would indicate a part manufactured on January 01, 1995 at plant number 068).
Action Required Cont.
If the injector is no longer in the original box, use the date code engraved on the top of the unit injector tappet. It is in the "NUMERAL KOD" format. The code consists of the month and the year.
TEPS/MEPS dealers are reimbursed for recalled Parts Stock by returning the affected Parts Stock to their administering Caterpillar dealer for replacement.
Service Claim Allowances
Submit one claim for all 0R3002, 0R3003, 0R3190, 0R3389, 0R3580, 0R3742, 0R4368, 0R4369, 0R4370, 0R4374, and 0R4376 Remanufactured Unit Injectors with date codes prior to January 01, 1996 removed from Parts Stock.
Parts Disposition
All injectors removed from Parts Stock are to be returned as cores for remanufacturing.
U.S. and Canadian Dealers
Return all 0R3002, 0R3003, 0R3190, 0R3389, 0R3580, 0R3742, 0R4368, 0R4369, 0R4370, 0R4374, and 0R4376 Remanufactured Unit Injectors with date codes prior to January 01, 1996 that are removed from Parts Stock and a copy of the claim to:
Caterpillar Inc.
Attn: Bill Harland - Warranty Review
501 Cardinal Drive
Corinth, MS 38834
All Other Dealers
Handle the parts in accordance with your Warranty Bulletin on Remanufactured Engines and Components, refer to the topic "Disposition of the Core Under Warranty".
Termination Date
July 31, 1996Problem
0R3002, 0R3003, 0R3190, 0R3389, 0R3580, 0R3742, 0R4368, 0R4369, 0R4370, 0R4374, and 0R4376 Remanufactured Unit Injectors with date codes prior to January 01, 1996 need to be removed from Parts Stock.Action Required
Remove all 0R3002, 0R3003, 0R3190, 0R3389, 0R3580, 0R3742, 0R4368, 0R4369, 0R4370, 0R4374, and 0R4376 Remanufactured Unit Injectors with date codes prior to January 01, 1996 from Parts Stock.
The date code can be located below the part name and above the part number on part number tag attached to the box. The date code is formatted as DDMMYYXXX (example; a box marked with a date code of 150195068 would indicate a part manufactured on January 01, 1995 at plant number 068).
Action Required Cont.
If the injector is no longer in the original box, use the date code engraved on the top of the unit injector tappet. It is in the "NUMERAL KOD" format. The code consists of the month and the year.
TEPS/MEPS dealers are reimbursed for recalled Parts Stock by returning the affected Parts Stock to their administering Caterpillar dealer for replacement.
Service Claim Allowances
Submit one claim for all 0R3002, 0R3003, 0R3190, 0R3389, 0R3580, 0R3742, 0R4368, 0R4369, 0R4370, 0R4374, and 0R4376 Remanufactured Unit Injectors with date codes prior to January 01, 1996 removed from Parts Stock.
Parts Disposition
All injectors removed from Parts Stock are to be returned as cores for remanufacturing.
U.S. and Canadian Dealers
Return all 0R3002, 0R3003, 0R3190, 0R3389, 0R3580, 0R3742, 0R4368, 0R4369, 0R4370, 0R4374, and 0R4376 Remanufactured Unit Injectors with date codes prior to January 01, 1996 that are removed from Parts Stock and a copy of the claim to:
Caterpillar Inc.
Attn: Bill Harland - Warranty Review
501 Cardinal Drive
Corinth, MS 38834
All Other Dealers
Handle the parts in accordance with your Warranty Bulletin on Remanufactured Engines and Components, refer to the topic "Disposition of the Core Under Warranty".
