106971-2021 ZEXEL 9 400 618 682 BOSCH INJECTION-PUMP ASSEMBLY 9400618682 1069712021 me090925

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH 9 400 618 682 9400618682

ZEXEL 106971-2021 1069712021

MITSUBISHI ME090925 me090925

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 106971-2021 zexel genuine, new aftermarket engine parts with delivery

Service parts 106971-2021 INJECTION-PUMP ASSEMBLY:

1. _

2. FUEL INJECTION PUMP 106097-5410

3. GOVERNOR 105487-4082

4. SUPPLY PUMP 105237-1321

5. AUTOM. ADVANCE MECHANIS 105639-1170

6. COUPLING PLATE 105663-0550

7. COUPLING PLATE

8. _

9. _

10. NOZZLE AND HOLDER ASSY 105100-7150

11. Nozzle and Holder ME060110

12. Open Pre:MPa(Kqf/cm2) 17.7{180}/21.6{220}

13. NOZZLE-HOLDER 105031-4500

14. NOZZLE 105015-6580

15. NOZZLE SET

Include in #1:

106971-2021 as INJECTION-PUMP ASSEMBLY

Cross reference number

BOSCH 9 400 618 682 9400618682

ZEXEL 106971-2021 1069712021

MITSUBISHI ME090925 me090925

Zexel num

Bosch num

Firm num

Name

106971-2021
106971-2050

9 400 618 682

ME090925 MITSUBISHI

INJECTION-PUMP ASSEMBLY
10DC11 K 14CE INJECTION PUMP ASSY PE10P PE

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 8-3-600

Overflow valve 131424-4620

Overflow valve opening pressure kPa 255 221 289

Overflow valve opening pressure kgf/cm2 2.6 2.25 2.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-2-7-8- 5-6-3-4- 9-10

Pre-stroke mm 4.8 4.75 4.85

Beginning of injection position
Governor side NO.1

Difference between angles 1
Cyl.1-2 deg. 45 44.5 45.5

Difference between angles 2
Cal 1-7 deg. 72 71.5 72.5

Difference between angles 3
Cal 1-8 deg. 117 116.5 117.5

Difference between angles 4
Cal 1-5 deg. 144 143.5 144.5

Difference between angles 5
Cal 1-6 deg. 189 188.5 189.5

Difference between angles 6
Cal 1-3 deg. 216 215.5 216.5

Difference between angles 7
Cal 1-4 deg. 261 260.5 261.5

Difference between angles 8
Cal 1-9 deg. 288 287.5 288.5

Difference between angles 9
Cal 1-10 deg. 333 332.5 333.5

Injection quantity adjustment

Adjusting point -

Rack position 10.7

Pump speed r/min 700 700 700

Each cylinder's injection qty mm3/st. 129 125.1 132.9

Basic *

Fixing the rack *

Standard for adjustment of the maximum variation between cylinders *

Injection quantity adjustment_02

Adjusting point C

Rack position 6.6+-0.5

Pump speed r/min 225 225 225

Each cylinder's injection qty mm3/st. 20 17 23

Fixing the rack *

Standard for adjustment of the maximum variation between cylinders *

Injection quantity adjustment_03

Adjusting point A

Rack position R1(10.7)

Pump speed r/min 700 700 700

Average injection quantity mm3/st. 129 128 130

Basic *

Fixing the lever *

Injection quantity adjustment_04

Adjusting point B

Rack position R1(10.7)

Pump speed r/min 1100 1100 1100

Average injection quantity mm3/st. 133 129 137

Fixing the lever *

Injection quantity adjustment_05

Adjusting point E

Rack position -

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 145 105 185

Fixing the lever *

Remarks
After startup boost setting

Timer adjustment

Pump speed r/min 950--

Advance angle deg. 0 0 0

Remarks
Start

Timer adjustment_02

Pump speed r/min 900

Advance angle deg. 0.5

Timer adjustment_03

Pump speed r/min 1100

Advance angle deg. 5.5 5 6

Remarks
Finish

Test data Ex:

Governor adjustment

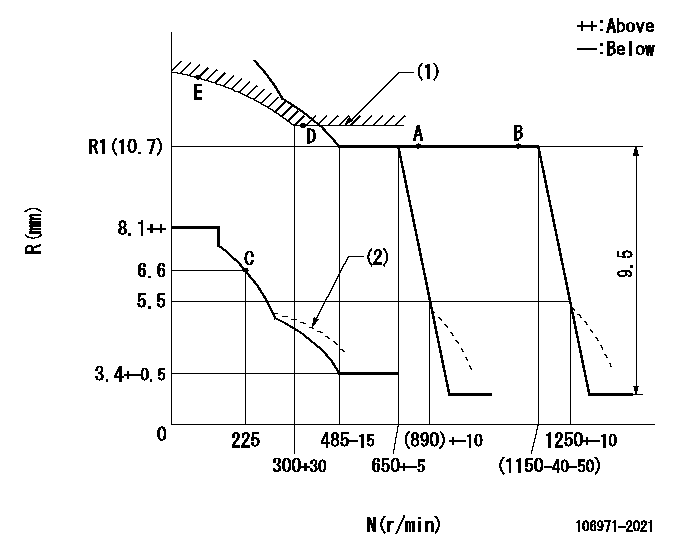

N:Pump speed R:Rack position (mm) (1)Excess fuel setting for starting: SXL (2)Damper spring setting: DL
----------
SXL=11.4+-0.1mm DL=4.8-0.2mm
----------

Speed control lever angle

F:Full speed (1)Set the pump speed at aa (2)Set the pump speed at bb.
----------
aa=(1150)r/min bb=650r/min
----------
a=19deg+-5deg b=6deg+-5deg

0000000901

F:Full load I:Idle (1)Stopper bolt setting
----------

----------
a=10deg+-5deg b=27deg+-3deg

Stop lever angle

S:Stop the pump. (1)Rack position = aa (2)Stopper bolt setting (3)Free (at shipping)
----------
aa=3.7-0.5mm
----------
a=10.5deg+-5deg b=57deg+7deg-5deg

0000001501 MICRO SWITCH

Adjustment of the micro-switch Adjust the bolt to obtain the following lever position when the micro-switch is ON. (1)Speed N1 (2)Rack position Ra
----------
N1=325+-5r/min Ra=5.7mm
----------

Timing setting

(1)Pump vertical direction (2)Coupling's key groove position at No 1 cylinder's beginning of injection (3)- (4)-
----------

----------
a=(40deg)
