Service parts 106971-0680 INJECTION-PUMP ASSEMBLY:

1. _

2. FUEL INJECTION PUMP 106097-5370

3. GOVERNOR 105487-2762

4. SUPPLY PUMP 105237-1550

5. AUTOM. ADVANCE MECHANIS 105681-0200

6. COUPLING PLATE 105662-0602

7. COUPLING PLATE

8. _

9. _

10. NOZZLE AND HOLDER ASSY 105100-7700

11. Nozzle and Holder 16600-97070

12. Open Pre:MPa(Kqf/cm2) 17.7{180}/21.6{220}

13. NOZZLE-HOLDER 105031-4790

14. NOZZLE

105015-6810

15. NOZZLE SET

Include in #1:

106971-0680 as INJECTION-PUMP ASSEMBLY

Cross reference number

ZEXEL 106971-0680 1069710680

Zexel num

Bosch num

Firm num

Name

106971-0680

INJECTION-PUMP ASSEMBLY

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 8-3-600

Overflow valve opening pressure kPa 157 123 191

Overflow valve opening pressure kgf/cm2 1.6 1.25 1.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 10-9-4-3 -6-5-8-7 -2-1

Pre-stroke mm 3.65 3.6 3.7

Beginning of injection position
Governor side NO.1

Difference between angles 1
Cal 10-9 deg. 45 44.5 45.5

Difference between angles 2
Cal 10-4 deg. 72 71.5 72.5

Difference between angles 3
Cal 10-3 deg. 117 116.5 117.5

Difference between angles 4
Cal 10-6 deg. 144 143.5 144.5

Difference between angles 5
Cal 10-5 deg. 189 188.5 189.5

Difference between angles 6
Cal 10-8 deg. 216 215.5 216.5

Difference between angles 7
Cal 10-7 deg. 261 260.5 261.5

Difference between angles 8
Cal 10-2 deg. 288 287.5 288.5

Difference between angles 9
Cal 10-1 deg. 333 332.5 333.5

Injection quantity adjustment

Adjusting point A

Rack position 10.3

Pump speed r/min 650 650 650

Average injection quantity mm3/st. 129.4 128.4 130.4

Max. variation between cylinders % 0 -4 4

Basic *

Fixing the lever *

Injection quantity adjustment_02

Adjusting point B

Rack position 7+-0.5

Pump speed r/min 225 225 225

Average injection quantity mm3/st. 11 9 13

Max. variation between cylinders % 0 -10 10

Fixing the rack *

Timer adjustment

Pump speed r/min 950--

Advance angle deg. 0 0 0

Load 3/4

Remarks
Start

Timer adjustment_02

Pump speed r/min 900

Advance angle deg. 0.5

Load 3/4

Timer adjustment_03

Pump speed r/min 1100

Advance angle deg. 4 3.5 4.5

Load 4/4

Remarks
Finish

Test data Ex:

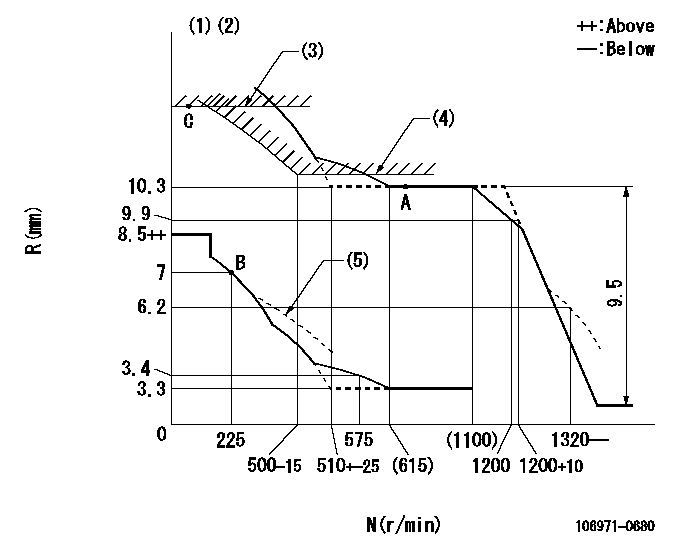

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Lever ratio: RT (2)Target shim dimension: TH (3)Rack limit using the stop lever: R1 (4)Excess fuel setting for starting: SXL (5)Damper spring setting: DL
----------
RT=1 TH=1.5mm R1=12.4+0.2mm SXL=10.3+0.2mm DL=6.5-0.2mm
----------

Speed control lever angle

F:Full speed
----------

----------
a=7deg+-5deg

0000000901

F:Full load I:Idle (1)Stopper bolt setting
----------

----------
a=18.5deg+-5deg b=26deg+-3deg

Stop lever angle

N:Pump normal S:Stop the pump. (1)Rack position = aa
----------
aa=12.4+0.2mm
----------
a=4.5deg+-5deg b=30deg+-5deg

Timing setting

(1)Pump vertical direction (2)Position of the coupling's key groove at the start of injection for the No. 10 cylinder. (3)- (4)-
----------

----------
a=(90deg)

Information:

TERMINATION DATE
30Sep2014
