106971-0320 ZEXEL 9 400 618 622 BOSCH INJECTION-PUMP ASSEMBLY 9400618622 1069710320 1679097016

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH 9 400 618 622 9400618622

ZEXEL 106971-0320 1069710320

NISSAN-DIESEL 1679097016 1679097016

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 106971-0320 zexel genuine, new aftermarket engine parts with delivery

Service parts 106971-0320 INJECTION-PUMP ASSEMBLY:

1. _

2. FUEL INJECTION PUMP 106097-5470

3. GOVERNOR 105407-2590

4. SUPPLY PUMP 105237-6350

5. AUTOM. ADVANCE MECHANIS 105636-5130

6. COUPLING PLATE

7. COUPLING PLATE

8. _

9. _

10. NOZZLE AND HOLDER ASSY 105101-4760

11. Nozzle and Holder 1660097005

12. Open Pre:MPa(Kqf/cm2) 22.6{230}

13. NOZZLE-HOLDER 105031-4210

14. NOZZLE 105015-3440

15. NOZZLE SET

Include in #1:

106971-0320 as INJECTION-PUMP ASSEMBLY

Cross reference number

BOSCH 9 400 618 622 9400618622

ZEXEL 106971-0320 1069710320

NISSAN-DIESEL 1679097016 1679097016

Zexel num

Bosch num

Firm num

Name

106971-0320

9 400 618 622

1679097016 NISSAN-DIESEL

INJECTION-PUMP ASSEMBLY
RE10TA06 K 14CE INJECTION PUMP ASSY PE10P PE

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 8-3-600

Overflow valve 132424-0620

Overflow valve opening pressure kPa 157 123 191

Overflow valve opening pressure kgf/cm2 1.6 1.25 1.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 10-9-4-3 -6-5-8-7 -2-1

Pre-stroke mm 3 2.95 3.05

Beginning of injection position
Governor side NO.1

Difference between angles 1
Cal 10-9 deg. 45 44.5 45.5

Difference between angles 2
Cal 10-4 deg. 72 71.5 72.5

Difference between angles 3
Cal 10-3 deg. 117 116.5 117.5

Difference between angles 4
Cal 10-6 deg. 144 143.5 144.5

Difference between angles 5
Cal 10-5 deg. 189 188.5 189.5

Difference between angles 6
Cal 10-8 deg. 216 215.5 216.5

Difference between angles 7
Cal 10-7 deg. 261 260.5 261.5

Difference between angles 8
Cal 10-2 deg. 288 287.5 288.5

Difference between angles 9
Cal 10-1 deg. 333 332.5 333.5

Injection quantity adjustment

Adjusting point A

Rack position 14.5

Pump speed r/min 1150 1150 1150

Average injection quantity mm3/st. 192.2 190.2 194.2

Max. variation between cylinders % 0 -4 4

Basic *

Fixing the lever *

Injection quantity adjustment_02

Adjusting point B

Rack position 14.5

Pump speed r/min 750 750 750

Average injection quantity mm3/st. 198.4 192.4 204.4

Max. variation between cylinders % 0 -4 4

Fixing the lever *

Injection quantity adjustment_03

Adjusting point C

Rack position 7.3+-0.5

Pump speed r/min 300 300 300

Average injection quantity mm3/st. 17.8 15.8 19.8

Max. variation between cylinders % 0 -10 10

Fixing the rack *

Injection quantity adjustment_04

Adjusting point D

Rack position 15.5

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 215 205 225

Fixing the lever *

Rack limit *

Timer adjustment

Pump speed r/min (700)

Advance angle deg. 0.5

Timer adjustment_02

Pump speed r/min 1150

Advance angle deg. 3 2.5 3.5

Timer adjustment_03

Pump speed r/min 1250

Advance angle deg. 3.5 3.5 3.5

Remarks
Finish

Test data Ex:

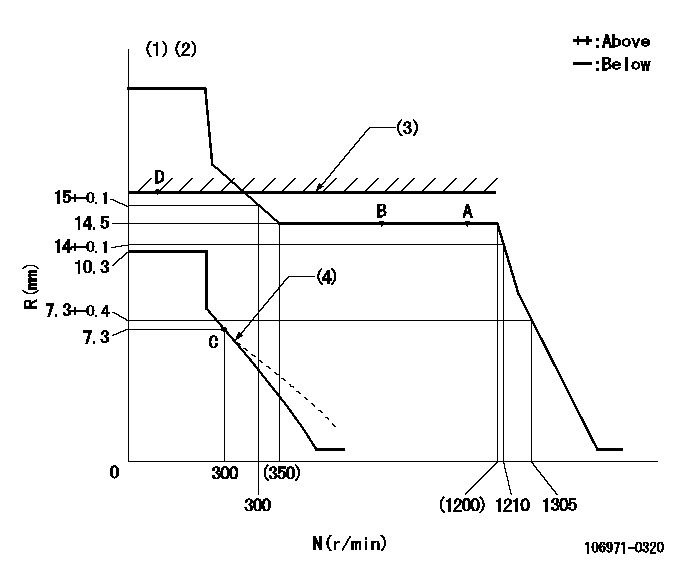

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Target notch: K (2)Tolerance for racks not indicated: +-0.05mm. (3)RACK LIMIT: RAL (4)Damper spring setting: DL
----------
K=12 RAL=15.5+-0.1mm DL=6.8-0.2mm
----------

Speed control lever angle

F:Full speed I:Idle S:Stop
----------

----------
a=13deg+-5deg b=32deg+-3deg c=34deg+-5deg

Stop lever angle

N:Pump normal S:Stop the pump. (1)Use the hole at R = aa
----------
aa=55mm
----------
a=27deg+-5deg b=53deg+-5deg

0000001501 GOV FULL LOAD ADJUSTMENT

Title1:Full load stopper adjustment Title2:Governor set speed LABEL1:Distinguishing LABEL2:Pump speed (r/min) LABEL3:Ave. injection quantity (mm3/st) LABEL4:Max. var. bet. cyl. LABEL5:Remarks LABEL6:Distinguishing LABEL7:Governor set speed (r/min) LABEL8:Remarks (1)Adjustment conditions are the same as those for measuring injection quantity. (2)-
----------

----------
a1=M a2=F r1=1150r/min r2=1150r/min Q1=192.2+-2mm3/st Q2=172.6+-2mm3/st c1=+-4% c2=+-4% a3=M a4=F r3=1185r/min r4=1150r/min
