106971-0166 ZEXEL 9 400 618 615 BOSCH INJECTION-PUMP ASSEMBLY 9400618615 1069710166 1670097072

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH 9 400 618 615 9400618615

ZEXEL 106971-0166 1069710166

NISSAN-DIESEL 1670097072 1670097072

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 106971-0166 zexel genuine, new aftermarket engine parts with delivery

Service parts 106971-0166 INJECTION-PUMP ASSEMBLY:

1. _

2. FUEL INJECTION PUMP 106097-5440

3. GOVERNOR 105306-0932

4. SUPPLY PUMP 105217-1850

5. AUTOM. ADVANCE MECHANIS 105636-2800

6. COUPLING PLATE 105662-1150

7. COUPLING PLATE

8. _

9. _

10. NOZZLE AND HOLDER ASSY 105100-5840

11. Nozzle and Holder 1660097019

12. Open Pre:MPa(Kqf/cm2) 19.6(200)

13. NOZZLE-HOLDER 105031-4210

14. NOZZLE

105015-5450

15. NOZZLE SET

Include in #1:

106971-0166 as INJECTION-PUMP ASSEMBLY

Cross reference number

BOSCH 9 400 618 615 9400618615

ZEXEL 106971-0166 1069710166

NISSAN-DIESEL 1670097072 1670097072

Zexel num

Bosch num

Firm num

Name

106971-0166

9 400 618 615

1670097072 NISSAN-DIESEL

INJECTION-PUMP ASSEMBLY
RE10 * K

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 8-3-600

Overflow valve opening pressure kPa 157 123 191

Overflow valve opening pressure kgf/cm2 1.6 1.25 1.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 10-9-4-3 -6-5-8-7 -2-1

Pre-stroke mm 3.65 3.6 3.7

Beginning of injection position
Governor side NO.1

Difference between angles 1
Cal 10-9 deg. 45 44.5 45.5

Difference between angles 2
Cal 10-4 deg. 72 71.5 72.5

Difference between angles 3
Cal 10-3 deg. 117 116.5 117.5

Difference between angles 4
Cal 10-6 deg. 144 143.5 144.5

Difference between angles 5
Cal 10-5 deg. 189 188.5 189.5

Difference between angles 6
Cal 10-8 deg. 216 215.5 216.5

Difference between angles 7
Cal 10-7 deg. 261 260.5 261.5

Difference between angles 8
Cal 10-2 deg. 288 287.5 288.5

Difference between angles 9
Cal 10-1 deg. 333 332.5 333.5

Injection quantity adjustment

Adjusting point A

Rack position 10.3

Pump speed r/min 700 700 700

Average injection quantity mm3/st. 107.2 106.2 108.2

Max. variation between cylinders % 0 -4 4

Basic *

Fixing the lever *

Injection quantity adjustment_02

Adjusting point B

Rack position 5.7+-0.5

Pump speed r/min 225 225 225

Average injection quantity mm3/st. 11.3 9.3 13.3

Max. variation between cylinders % 0 -10 10

Fixing the rack *

Timer adjustment

Pump speed r/min 750

Advance angle deg. 0.5

Timer adjustment_02

Pump speed r/min 950

Advance angle deg. 2.2 1.7 2.7

Timer adjustment_03

Pump speed r/min 1150

Advance angle deg. 5.5 5 6

Remarks
Finish

Test data Ex:

Governor adjustment

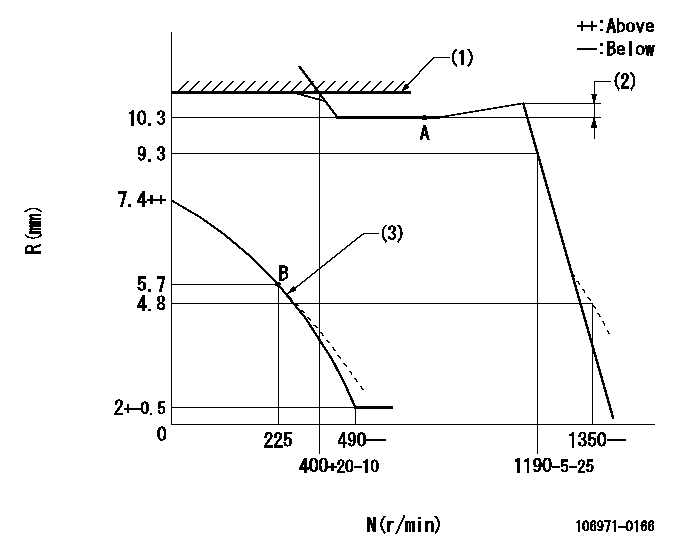

N:Pump speed R:Rack position (mm) (1)Rack limit using the stop lever: R1 (2)Rack difference from N = N1 (3)Beginning of damper spring operation: DL
----------
R1=10.6+0.2mm N1=700r/min DL=5.7-0.2mm
----------

0000000901

F:Full load I:Idle (1)Stopper bolt setting
----------

----------
a=16deg+-5deg b=17deg+-3deg

Stop lever angle

N:Pump normal S:Stop the pump. (1)Rack position = aa
----------
aa=10.6+0.2mm
----------
a=12deg+-5deg b=31deg+-5deg

Timing setting

(1)Pump vertical direction (2)Position of the coupling's key groove at the start of injection for the No. 10 cylinder. (3)- (4)-
----------

----------
a=(90deg)
