106961-6095 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1069616095 1156030151

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

ZEXEL 106961-6095 1069616095

ISUZU 1156030151 1156030151

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 106961-6095 zexel genuine, new aftermarket engine parts with delivery

Cross reference number

ZEXEL 106961-6095 1069616095

ISUZU 1156030151 1156030151

Zexel num

Bosch num

Firm num

Name

106961-6095
106961-6096

1156030151 ISUZU

INJECTION-PUMP ASSEMBLY
12PD1-N * K

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 8-3-600

Overflow valve (drive side) 134424-4320

Overflow valve opening pressure (drive side) kPa 255 221 289

Overflow valve opening pressure (drive side) kgf/cm2 2.6 2.25 2.95

Overflow valve (governor side) 134424-4320

Overflow valve opening pressure (governor side) kPa 255 221 289

Overflow valve opening pressure (governor side) kgf/cm2 2.6 2.25 2.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-4-9-8- 5-2-11-1 0-3-6-7-

Pre-stroke mm 4.4 4.37 4.43

Rack position
Point A R=A

Beginning of injection position
Governor side NO.1

Difference between angles 1
Cal 1-4 deg. 15 14.75 15.25

Difference between angles 2
Cal 1-9 deg. 60 59.75 60.25

Difference between angles 3
Cal 1-8 deg. 75 74.75 75.25

Difference between angles 4
Cal 1-5 deg. 120 119.75 120.25

Difference between angles 5
Cyl.1-2 deg. 135 134.75 135.25

Difference between angles 6
Cal 1-11 deg. 180 179.75 180.25

Difference between angles 7
Cal 1-10 deg. 195 194.75 195.25

Difference between angles 8
Cal 1-3 deg. 240 239.75 240.25

Difference between angles 9
Cal 1-6 deg. 255 254.75 255.25

Difference between angles 10
Cal 1-7 deg. 300 299.75 300.25

Difference between angles 11
Cal 1-12 deg. 315 314.75 315.25

Injection quantity adjustment

Adjusting point A

Rack position 8.3

Pump speed r/min 800 800 800

Average injection quantity mm3/st. 96.1 94.6 97.6

Max. variation between cylinders % 0 -2 2

Basic *

Fixing the lever *

Injection quantity adjustment_02

Adjusting point B

Rack position 8.6

Pump speed r/min 500 500 500

Average injection quantity mm3/st. 96.8 94.8 98.8

Fixing the lever *

Injection quantity adjustment_03

Adjusting point C

Rack position 7.9

Pump speed r/min 1100 1100 1100

Average injection quantity mm3/st. 101.1 99.1 103.1

Fixing the lever *

Injection quantity adjustment_04

Adjusting point D

Rack position 5.2+-0.5

Pump speed r/min 225 225 225

Average injection quantity mm3/st. 8.8 7.5 10.1

Max. variation between cylinders % 0 -13 13

Fixing the rack *

Timer adjustment

Pump speed r/min 600--

Advance angle deg. 0 0 0

Remarks
Start

Timer adjustment_02

Pump speed r/min 550

Advance angle deg. 0.3

Timer adjustment_03

Pump speed r/min 830+-30

Advance angle deg. 2 1.5 2.5

Timer adjustment_04

Pump speed r/min -

Advance angle deg. 2 1.5 2.5

Remarks
Measure the actual speed.

Timer adjustment_05

Pump speed r/min 1100

Advance angle deg. 5.5 5 6

Remarks
Finish

Test data Ex:

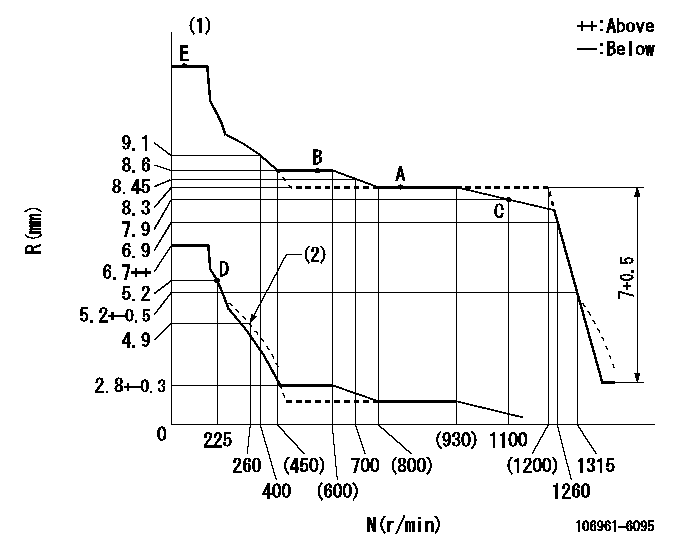

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Tolerance for racks not indicated: +-0.05mm. (2)Damper spring setting
----------

----------

Speed control lever angle

F:Full speed
----------

----------
a=7deg+-5deg

0000000901

F:Full load I:Idle (1)Stopper bolt setting
----------

----------
a=10deg+-5deg b=31deg+-3deg

Stop lever angle

N:Pump normal S:Stop the pump. (1)Use the hole at R = aa
----------
aa=25mm
----------
a=51deg+-5deg b=64deg+-5deg

0000001301

I:Idle F:Full load (1)Stopper bolt setting
----------

----------
a=31deg+-3deg b=14.5deg+-5deg

Timing setting

(1)Pump vertical direction (2)Position of "Z" mark at the No 1 cylinder's beginning of injection (governor side) (3)B.T.D.C.: aa (set timing) (4)-
----------
aa=8deg
----------
a=(180deg)
