106873-7691 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1068737691

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

ZEXEL 106873-7691 1068737691

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 106873-7691 zexel genuine, new aftermarket engine parts with delivery

Cross reference number

ZEXEL 106873-7691 1068737691

Zexel num

Bosch num

Firm num

Name

106873-7691

INJECTION-PUMP ASSEMBLY
14CD PE8P PE

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8250

Bosch type code 1 688 901 101

Nozzle 105780-0120

Bosch type code 1 688 901 990

Nozzle holder 105780-2190

Opening pressure MPa 20.7

Opening pressure kgf/cm2 211

Injection pipe
Outer diameter - inner diameter - length (mm) mm 8-3-600

Overflow valve 131425-0220

Overflow valve opening pressure kPa 157 123 191

Overflow valve opening pressure kgf/cm2 1.6 1.25 1.95

Tester oil delivery pressure kPa 255 255 255

Tester oil delivery pressure kgf/cm2 2.6 2.6 2.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-2-7-3- 4-5-6-8

Pre-stroke mm 3.9 3.85 3.95

Beginning of injection position
Governor side NO.1

Difference between angles 1
Cyl.1-2 deg. 45 44.5 45.5

Difference between angles 2
Cal 1-7 deg. 90 89.5 90.5

Difference between angles 3
Cal 1-3 deg. 135 134.5 135.5

Difference between angles 4
Cal 1-4 deg. 180 179.5 180.5

Difference between angles 5
Cal 1-5 deg. 225 224.5 225.5

Difference between angles 6
Cal 1-6 deg. 270 269.5 270.5

Difference between angles 7
Cal 1-8 deg. 315 314.5 315.5

Injection quantity adjustment

Adjusting point -

Rack position 13.1

Pump speed r/min 700 700 700

Each cylinder's injection qty mm3/st. 135 130.9 139.1

Basic *

Fixing the rack *

Standard for adjustment of the maximum variation between cylinders *

Injection quantity adjustment_02

Adjusting point Z

Rack position 8.6+-0.5

Pump speed r/min 415 415 415

Each cylinder's injection qty mm3/st. 19 16.1 21.9

Fixing the rack *

Standard for adjustment of the maximum variation between cylinders *

Injection quantity adjustment_03

Adjusting point A

Rack position R1(13.1)

Pump speed r/min 700 700 700

Average injection quantity mm3/st. 135 134 136

Basic *

Fixing the lever *

Boost pressure kPa 26 26

Boost pressure mmHg 195 195

Injection quantity adjustment_04

Adjusting point B

Rack position R1+1.65

Pump speed r/min 1100 1100 1100

Average injection quantity mm3/st. 143 139 147

Fixing the lever *

Boost pressure kPa 26 26

Boost pressure mmHg 195 195

Boost compensator adjustment

Pump speed r/min 300 300 300

Rack position R2-1.2

Boost pressure kPa 6.7 5.4 8

Boost pressure mmHg 50 40 60

Boost compensator adjustment_02

Pump speed r/min 300 300 300

Rack position R2(R1-0. 65)

Boost pressure kPa 12.7 12.7 12.7

Boost pressure mmHg 95 95 95

Timer adjustment

Pump speed r/min 900--

Advance angle deg. 0 0 0

Remarks
Start

Timer adjustment_02

Pump speed r/min 850

Advance angle deg. 0.5

Timer adjustment_03

Pump speed r/min 1100

Advance angle deg. 1.5 1 2

Remarks
Finish

Test data Ex:

Governor adjustment

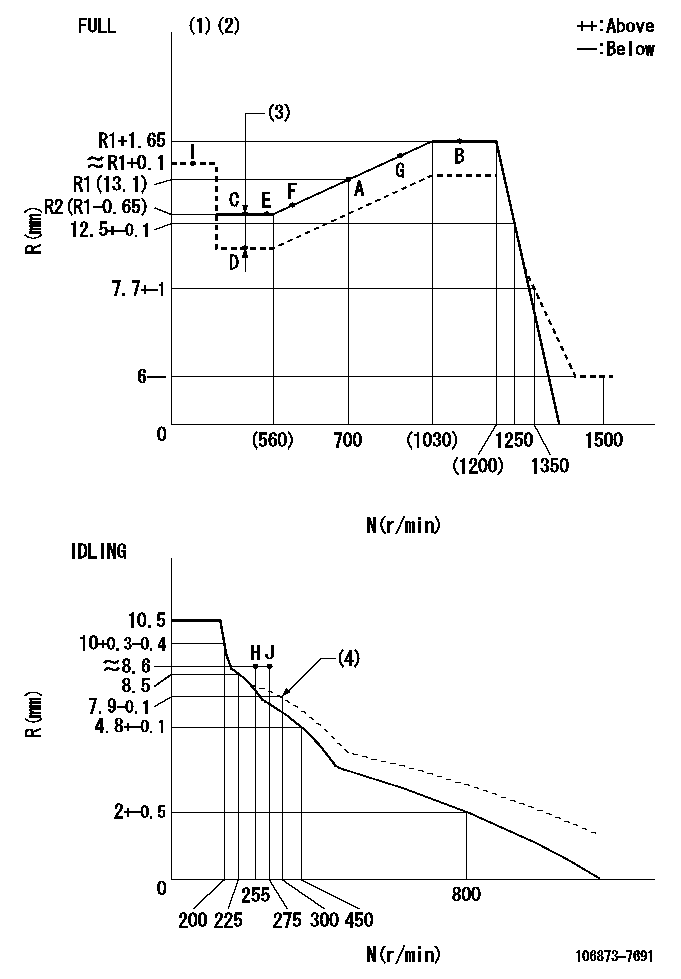

N:Pump speed R:Rack position (mm) (1)Torque cam stamping: T1 (2)Tolerance for racks not indicated: +-0.05mm. (3)Boost compensator stroke: BCL (4)Damper spring setting
----------
T1=AE84 BCL=1.2+-0.1mm
----------

Speed control lever angle

F:Full speed I:Idle (1)Use the hole at R = aa (2)Stopper bolt set position 'H' (3)Viewed from feed pump side.
----------
aa=37.5mm
----------
a=11.5deg+-5deg b=40.5deg+-3deg

Stop lever angle

N:Pump normal S:Stop the pump. (1)Use the hole at R = aa (2)Set the stopper bolt so that speed = bb and rack position = cc. (Confirm non-injection.) (3)Normal engine position (equivalent to R = dd).
----------
aa=54mm bb=1100r/min cc=3.5+-0.3mm dd=18mm
----------
a=41deg+-5deg b=5.5deg+-5deg c=(31deg)

Timing setting

(1)Pump vertical direction (2)Coupling's key groove position at No 1 cylinder's beginning of injection (3)B.T.D.C.: aa (4)-
----------
aa=4deg
----------
a=(50deg)

Information:

Always use a wrench to hold the hex fitting on top of the master nozzle, when assembling or disassembling lines. If a wrench is not used, the master nozzle and manifold it is installed into may be damaged.
Check fuel line for "Close-in" Do NOT use fuel lines with an ID (inside diameter) LESS than 1.191 mm (0.0469 in). The fuel line ID can be checked using a 1.2 mm (.047 in) drill.If the drill bit can NOT be inserted into the fuel line high pressure hole, either drill out the line using a 1.6 mm (.063 in) drill or replace the fuel line with a new line. Use the same length and internal diameter lines each time the reference pump is tested.
If the fuel lines are not completely and thoroughly cleaned out after the drilling procedure, metal particles or foreign debris in the line will damage the master nozzles and contaminate the calibration fluid in the test stand.
After the hole has been drilled to the correct size, clean the line with solvent and remove any metal particles. Blow compressed air through the lines, after cleaning, to remove any solvent.
When using pressure air, wear a protective face shield and protective clothing. The maximum air pressure at the nozzle must be less than 205 kPa (30 psi) for cleaning purposes.
