106873-7500 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1068737500




Information injection-pump assembly

ZEXEL 106873-7500 1068737500
106873-7500 INJECTION-PUMP ASSEMBLY
Rating:
66
Buy INJECTION-PUMP ASSEMBLY 106873-7500 zexel genuine, new aftermarket engine parts with delivery

Cross reference number

ZEXEL 106873-7500 1068737500


Zexel num
Bosch num
Firm num
Name
106873-7500


INJECTION-PUMP ASSEMBLY

Calibration Data:

Adjustment conditions
Test oil
1404 Test oil
  ISO4113 or {SAEJ967d}
Test oil temperature degC   40 40 45
Nozzle and nozzle holder   105780-8140
Bosch type code   EF8511/9A
Nozzle   105780-0000
Bosch type code   DN12SD12T
Nozzle holder   105780-2080
Bosch type code   EF8511/9
Opening pressure MPa   17.2
Opening pressure kgf/cm2   175
Injection pipe
Outer diameter - inner diameter - length (mm)
mm   8-3-600
Overflow valve   131424-4620
Overflow valve opening pressure kPa   255 221 289
Overflow valve opening pressure kgf/cm2   2.6 2.25 2.95
Tester oil delivery pressure kPa   157 157 157
Tester oil delivery pressure kgf/cm2   1.6 1.6 1.6
Direction of rotation (viewed from drive side)
Right
  R
Injection timing adjustment
Direction of rotation (viewed from drive side)
Right
  R
Injection order   1-2-7-3- 4-5-6-8
Pre-stroke mm   3.9 3.85 3.95
Beginning of injection position
Governor side
  NO.1
Difference between angles 1
Cyl.1-2
deg.   45 44.5 45.5
Difference between angles 2
Cal 1-7
deg.   90 89.5 90.5
Difference between angles 3
Cal 1-3
deg.   135 134.5 135.5
Difference between angles 4
Cal 1-4
deg.   180 179.5 180.5
Difference between angles 5
Cal 1-5
deg.   225 224.5 225.5
Difference between angles 6
Cal 1-6
deg.   270 269.5 270.5
Difference between angles 7
Cal 1-8
deg.   315 314.5 315.5
Injection quantity adjustment
Adjusting point   A
Rack position   11
Pump speed r/min   750 750 750
Average injection quantity mm3/st.   159 156 162
Max. variation between cylinders %   0 -3 3
Basic   *
Fixing the lever   *
Injection quantity adjustment_02
Adjusting point   B
Rack position   5.8+-0.5
Pump speed r/min   300 300 300
Average injection quantity mm3/st.   25 22.4 27.6
Max. variation between cylinders %   0 -15 15
Fixing the rack   *
Injection quantity adjustment_03
Adjusting point   D
Rack position   -
Pump speed r/min   100 100 100
Average injection quantity mm3/st.   295 295 305
Fixing the lever   *
Timer adjustment
Pump speed r/min   900++
Advance angle deg.   0 0 0
Remarks
Do not advance until starting N = 900.

Timer adjustment_02
Pump speed r/min   900
Advance angle deg.   0.5
Timer adjustment_03
Pump speed r/min   -
Remarks
Speed, measure actual advance, end of effect


Test data Ex:

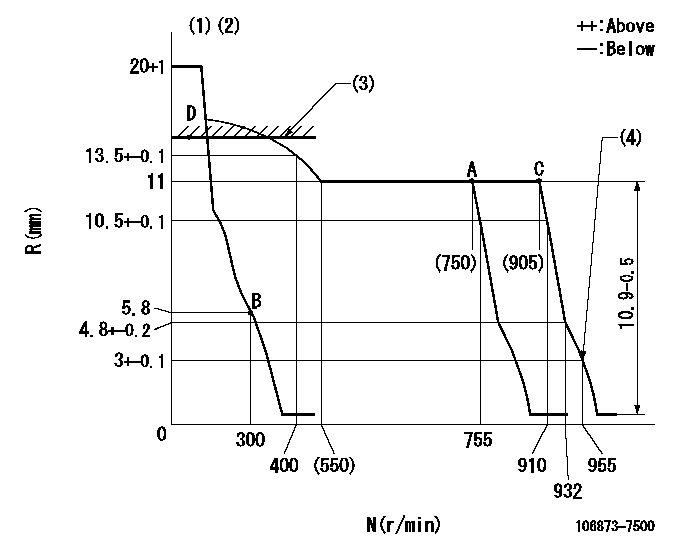

Governor adjustment

Test data 106873-7500
N:Pump speed R:Rack position (mm) (1)Notch: K (2)Tolerance for racks not indicated: +-0.05mm. (3)RACK LIMIT (4)Set idle sub-spring
----------
K=8
----------

Speed control lever angle

Test data 106873-7500
F:Full speed I:Idle (1)Set the pump speed at aa. (At delivery) (2)Pump speed = bb (3)Stopper bolt setting
----------
aa=910r/min bb=755r/min
----------
a=1deg+-5deg b=9deg+-5deg c=30deg+-5deg

Stop lever angle

Test data 106873-7500
N:Pump normal S:Stop the pump. (1)Right front (2)Right rear
----------

----------
a=19deg+-5deg b=46deg+-5deg c=28deg+-5deg d=53deg+-5deg

Timing setting

Test data 106873-7500
(1)Pump vertical direction (2)Coupling's key groove position at No 1 cylinder's beginning of injection (3)- (4)-
----------

----------
a=(40deg)
