106873-2400 ZEXEL 9 400 618 356 BOSCH INJECTION-PUMP ASSEMBLY 9400618356 1068732400 me092078




Information injection-pump assembly

BOSCH 9 400 618 356 9400618356
ZEXEL 106873-2400 1068732400
MITSUBISHI ME092078 me092078
106873-2400 INJECTION-PUMP ASSEMBLY
Rating:
18
Buy INJECTION-PUMP ASSEMBLY 106873-2400 zexel genuine, new aftermarket engine parts with delivery

Service parts 106873-2400 INJECTION-PUMP ASSEMBLY:

1. _
2. FUEL INJECTION PUMP 106087-7800
3. GOVERNOR 105489-2870
4. SUPPLY PUMP 105207-1140
5. AUTOM. ADVANCE MECHANIS 105681-0921
6. COUPLING PLATE 105663-0390
7. COUPLING PLATE
8. _
9. _
10. NOZZLE AND HOLDER ASSY 105100-7971
11. Nozzle and Holder ME091276
12. Open Pre:MPa(Kqf/cm2) 17.7{180}/21.6{220}
13. NOZZLE-HOLDER 105030-4510
14. NOZZLE 105015-9440
15. NOZZLE SET

Include in #1:

106873-2400 as INJECTION-PUMP ASSEMBLY

Cross reference number

BOSCH 9 400 618 356 9400618356
ZEXEL 106873-2400 1068732400
MITSUBISHI ME092078 me092078


Zexel num
Bosch num
Firm num
Name
106873-2400
9 400 618 356
ME092078  MITSUBISHI
INJECTION-PUMP ASSEMBLY
8DC11 * K

Calibration Data:

Adjustment conditions
Test oil
1404 Test oil
  ISO4113 or {SAEJ967d}
Test oil temperature degC   40 40 45
Nozzle and nozzle holder   105780-8140
Bosch type code   EF8511/9A
Nozzle   105780-0000
Bosch type code   DN12SD12T
Nozzle holder   105780-2080
Bosch type code   EF8511/9
Opening pressure MPa   17.2
Opening pressure kgf/cm2   175
Injection pipe
Outer diameter - inner diameter - length (mm)
mm   8-3-600
Overflow valve opening pressure kPa   157 123 191
Overflow valve opening pressure kgf/cm2   1.6 1.25 1.95
Tester oil delivery pressure kPa   157 157 157
Tester oil delivery pressure kgf/cm2   1.6 1.6 1.6
Direction of rotation (viewed from drive side)
Right
  R
Injection timing adjustment
Direction of rotation (viewed from drive side)
Right
  R
Injection order   1-2-7-3- 4-5-6-8
Pre-stroke mm   4.8 4.75 4.85
Beginning of injection position
Governor side
  NO.1
Difference between angles 1
Cyl.1-2
deg.   45 44.5 45.5
Difference between angles 2
Cal 1-7
deg.   90 89.5 90.5
Difference between angles 3
Cal 1-3
deg.   135 134.5 135.5
Difference between angles 4
Cal 1-4
deg.   180 179.5 180.5
Difference between angles 5
Cal 1-5
deg.   225 224.5 225.5
Difference between angles 6
Cal 1-6
deg.   270 269.5 270.5
Difference between angles 7
Cal 1-8
deg.   315 314.5 315.5
Injection quantity adjustment
Adjusting point   -
Rack position   10.7
Pump speed r/min   650 650 650
Each cylinder's injection qty mm3/st.   133.5 129.5 137.5
Basic   *
Fixing the rack   *
Standard for adjustment of the maximum variation between cylinders   *
Injection quantity adjustment_02
Adjusting point   C
Rack position   6.2+-0.5
Pump speed r/min   225 225 225
Each cylinder's injection qty mm3/st.   17.5 14.9 20.1
Fixing the rack   *
Standard for adjustment of the maximum variation between cylinders   *
Injection quantity adjustment_03
Adjusting point   A
Rack position   R1(10.7)
Pump speed r/min   650 650 650
Average injection quantity mm3/st.   133.5 132.5 134.5
Basic   *
Fixing the lever   *
Injection quantity adjustment_04
Adjusting point   B
Rack position   R1-0.05
Pump speed r/min   1100 1100 1100
Average injection quantity mm3/st.   137.5 133.5 141.5
Fixing the lever   *
Injection quantity adjustment_05
Adjusting point   E
Rack position   -
Pump speed r/min   100 100 100
Average injection quantity mm3/st.   140 120 160
Fixing the lever   *
Remarks
After startup boost setting

Timer adjustment
Pump speed r/min   900--
Advance angle deg.   0 0 0
Remarks
Start

Timer adjustment_02
Pump speed r/min   850
Advance angle deg.   0.5
Timer adjustment_03
Pump speed r/min   1100
Advance angle deg.   4.5 4 5
Remarks
Finish


Test data Ex:

Governor adjustment

Test data 106873-2400

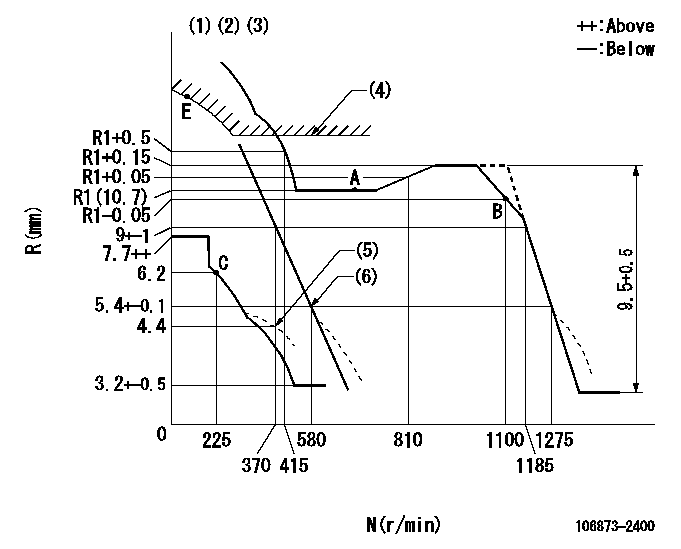

N:Pump speed R:Rack position (mm) (1)Lever ratio: RT (2)Target shim dimension: TH (3)Tolerance for racks not indicated: +-0.05mm. (4)Excess fuel setting for starting: SXL (5)Damper spring setting (6)When air cylinder is operating.
----------
RT=1 TH=2.7mm SXL=(R1+1.2)+-0.1mm
----------

Speed control lever angle

Test data 106873-2400
F:Full speed (1)Set the pump speed at aa (2)Set the pump speed at bb. (3)Stopper bolt setting (4)Stopper bolt setting
----------
aa=1275r/min bb=580r/min
----------
a=19.5deg+-5deg b=(10deg)+-5deg

0000000901

Test data 106873-2400
F:Full load I:Idle (1)Stopper bolt setting
----------

----------
a=10deg+-5deg b=28deg+-3deg

Stop lever angle

Test data 106873-2400
S:Stop the pump. (1)Rack position = aa (2)Stopper bolt setting (3)Free (at shipping)
----------
aa=4.1-0.5mm
----------
a=10.5deg+-5deg b=55.5deg+7deg-5deg

0000001501 MICRO SWITCH

Adjustment of the micro-switch Adjust the bolt to obtain the following lever position when the micro-switch is ON. (1)Speed N1 (2)Rack position Ra
----------
N1=325r/min Ra=5.7+-0.1mm
----------

Timing setting

Test data 106873-2400
(1)Pump vertical direction (2)Coupling's key groove position at No 1 cylinder's beginning of injection (3)B.T.D.C.: aa (4)-
----------
aa=12deg
----------
a=(40deg)




Information:

The Primary Engine Checks consist of quick and easy procedures that could identify the problem with a minimum loss of time. Always make these checks before starting the more involved troubleshooting procedures.Whenever a problem is found and corrected, always run the test again to that point to be sure there is not a combination of problems. When the problem has been corrected and the complaint resolved, stop the test. Do not continue through the complete procedure unless it is necessary.Possible Causes/Corrections
Prestart Checks
Make sure the air filter elements are in good condition and are not plugged. Also, make sure the engine oil and coolant are at the correct levels.Check Accelerator Linkage
To check the linkage adjustment, push the pedal down until it hits the stop. If the linkage adjustment is correct, the governor linkage will move to the break-over position when the pedal is against the stop. This is shown by clearance on both sides of the tang (see the illustration). When there is clearance on both sides of the tang, the governor linkage is adjusted correctly to permit the engine to operate at high idle. If clearance is not present on both sides of the tang, adjust the governor linkage to give the needed clearance.
Governor Control Linkage Adjustment
(1) Clearance on both sides of tang. (2) Governor control linkage. (3) Pedal (full travel). (4) Governor control. (5) Lever assembly.Check Vehicle Tachometer
Install the 6V3121 Multitach Group. Start the engine and make sure that the vehicle tachometer is accurately indicating engine rpm. Some electric vehicle tachometers can be adjusted. Correct the tachometer as required. A defective tachometer can cause operation at the wrong engine rpm, this can give the feel of low power.Check For Air In The Fuel
Disconnect the fuel return line. With the engine in operation, let the fuel from the injection pump housing flow into a container. Look for air bubbles in the fuel coming from the return line. Approximately 5 to 100 visible air bubbles in the fuel is normal. If there is excessive air in the fuel find the cause and correct it. Such as checking all fuel lines and connections for leaks and repair or replacement of parts as needed.Check Fuel API Gravity Rating
Caterpillar diesel engines are set in production to produce rated power with a fuel of 35 API gravity (0.85 specific gravity). This limit provides a grade of fuel that aids engine starting and avoids vapor lock. Fuel with higher API gravities (i.e., lower specific gravities), will produce less horsepower at the factory power setting and vice versa for lower than 35 API gravity fuels. The engine fuel setting should not be adjusted to compensate for a power loss with fuels lighter than 35 as fuel system component life may be decreased.For more information see Special Instruction Form No. SEHS7067, Fuel Recommendations For Caterpillar Diesel Engines. Also, Special Instruction, Form No. SEHS6947 has fuel correction factors and tables.Check For Proper Fuel Heater Application
Make sure that fuel heaters are correctly used. In some cold climates, fuel
