106871-5011 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1068715011

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

ZEXEL 106871-5011 1068715011

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 106871-5011 zexel genuine, new aftermarket engine parts with delivery

Cross reference number

ZEXEL 106871-5011 1068715011

Zexel num

Bosch num

Firm num

Name

106871-5011

INJECTION-PUMP ASSEMBLY

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 8-3-600

Overflow valve 132424-0620

Overflow valve opening pressure kPa 157 123 191

Overflow valve opening pressure kgf/cm2 1.6 1.25 1.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-8-7-5- 4-3-6-2

Pre-stroke mm 3.65 3.6 3.7

Beginning of injection position
Governor side NO.1

Difference between angles 1
Cal 1-8 deg. 45 44.5 45.5

Difference between angles 2
Cal 1-7 deg. 90 89.5 90.5

Difference between angles 3
Cal 1-5 deg. 135 134.5 135.5

Difference between angles 4
Cal 1-4 deg. 180 179.5 180.5

Difference between angles 5
Cal 1-3 deg. 225 224.5 225.5

Difference between angles 6
Cal 1-6 deg. 270 269.5 270.5

Difference between angles 7
Cyl.1-2 deg. 315 314.5 315.5

Injection quantity adjustment

Adjusting point A

Rack position 10

Pump speed r/min 700 700 700

Average injection quantity mm3/st. 129.3 128.3 130.3

Max. variation between cylinders % 0 -4 4

Basic *

Fixing the lever *

Injection quantity adjustment_02

Adjusting point C

Rack position 6.4+-0.5

Pump speed r/min 235 235 235

Average injection quantity mm3/st. 10.4 8.4 12.4

Max. variation between cylinders % 0 -10 10

Fixing the rack *

Injection quantity adjustment_03

Adjusting point D

Rack position -

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 155 155

Fixing the lever *

Remarks
After startup boost setting

Timer adjustment

Pump speed r/min 1000

Advance angle deg. 1.9 1.4 2.4

Timer adjustment_02

Pump speed r/min 1100

Advance angle deg. 5 4.5 5.5

Remarks
Finish

Test data Ex:

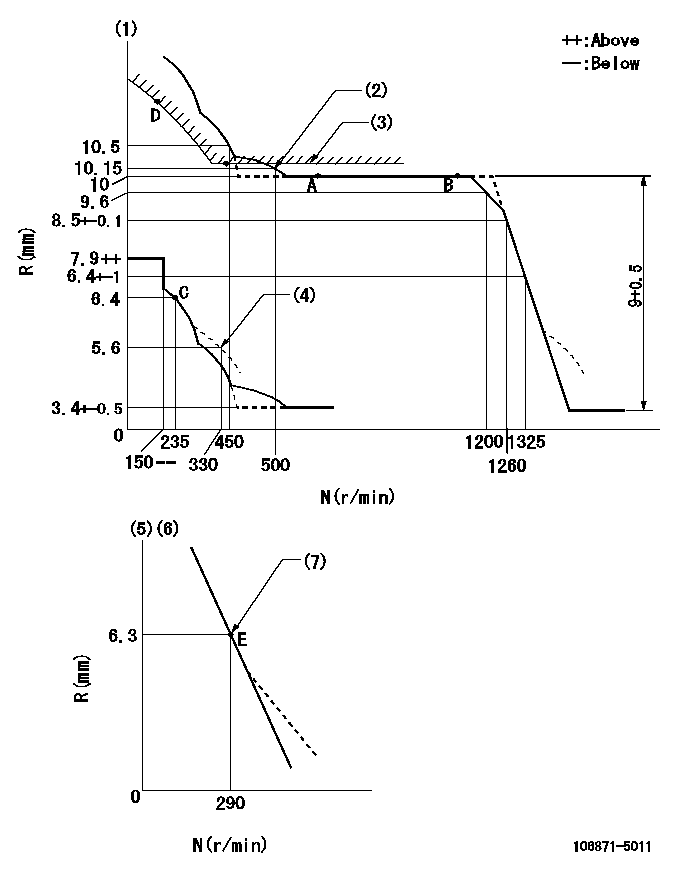

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Tolerance for racks not indicated: +-0.05mm. (2)Torque control spring setting (3)Excess fuel setting for starting: SXL (N = N1) (4)Damper spring setting (5)Variable speed specification: idling adjustment (6)Fix the lever at the full-load position at delivery. (7)Main spring setting
----------
SXL=10.1+-0.1mm N1=450r/min
----------

Speed control lever angle

F:Full speed I:Idle (1)Pump speed = aa (2)Set the stopper bolt (fixed at full-load position at delivery.)
----------
aa=290r/min
----------
a=(11deg)+-5deg b=5deg+-5deg

0000000901

F:Full load I:Idle (1)Stopper bolt setting (2)Use the hole at R = aa
----------
aa=64.3mm
----------
a=18.5deg+-5deg b=24.5deg+-3deg

Stop lever angle

N:Pump normal S:Stop the pump. (1)Drive side
----------

----------
a=12deg+-5deg b=64deg+-5deg

Timing setting

(1)Pump vertical direction (2)Position of the coupling's key groove at the beginning of injection of the No. 8 cylinder. (3)- (4)-
----------

----------
a=(90deg)
