106871-4123 ZEXEL F 019 Z20 233 BOSCH INJECTION-PUMP ASSEMBLY f019z20233 1068714123




Information injection-pump assembly

BOSCH F 019 Z20 233 f019z20233
ZEXEL 106871-4123 1068714123
106871-4123 INJECTION-PUMP ASSEMBLY
Rating:
57
Buy INJECTION-PUMP ASSEMBLY 106871-4123 zexel genuine, new aftermarket engine parts with delivery

Service parts 106871-4123 INJECTION-PUMP ASSEMBLY:

1. _
2. FUEL INJECTION PUMP 106080-5930
3. GOVERNOR 105489-4890
4. SUPPLY PUMP 105237-4400
5. AUTOM. ADVANCE MECHANIS 105636-2250
6. COUPLING PLATE 105662-1360
7. COUPLING PLATE
8. _
9. _
10. NOZZLE AND HOLDER ASSY
11. Nozzle and Holder
12. Open Pre:MPa(Kqf/cm2)
13. NOZZLE-HOLDER
14. NOZZLE
15. NOZZLE SET

Include in #1:

106871-4123 as INJECTION-PUMP ASSEMBLY

Cross reference number

BOSCH F 019 Z20 233 f019z20233
ZEXEL 106871-4123 1068714123


Zexel num
Bosch num
Firm num
Name
106871-4123
F 019 Z20 233
  DPICO
INJECTION-PUMP ASSEMBLY
EF750 Q

Calibration Data:

Adjustment conditions
Test oil
1404 Test oil
  ISO4113 or {SAEJ967d}
Test oil temperature degC   40 40 45
Nozzle and nozzle holder   105780-8140
Bosch type code   EF8511/9A
Nozzle   105780-0000
Bosch type code   DN12SD12T
Nozzle holder   105780-2080
Bosch type code   EF8511/9
Opening pressure MPa   17.2
Opening pressure kgf/cm2   175
Injection pipe
Outer diameter - inner diameter - length (mm)
mm   8-3-600
Overflow valve   134424-0820
Overflow valve opening pressure kPa   127 107 147
Overflow valve opening pressure kgf/cm2   1.3 1.1 1.5
Tester oil delivery pressure kPa   157 157 157
Tester oil delivery pressure kgf/cm2   1.6 1.6 1.6
Direction of rotation (viewed from drive side)
Right
  R
Injection timing adjustment
Direction of rotation (viewed from drive side)
Right
  R
Injection order   1-8-6-2- 7-5-4-3
Pre-stroke mm   4.4 4.34 4.4
Beginning of injection position
Drive side
  NO.1
Difference between angles 1
Cal 1-8
deg.   45 44.75 45.25
Difference between angles 2
Cal 1-6
deg.   90 89.75 90.25
Difference between angles 3
Cyl.1-2
deg.   135 134.75 135.25
Difference between angles 4
Cal 1-7
deg.   180 179.75 180.25
Difference between angles 5
Cal 1-5
deg.   225 224.75 225.25
Difference between angles 6
Cal 1-4
deg.   270 269.75 270.25
Difference between angles 7
Cal 1-3
deg.   315 314.75 315.25
Injection quantity adjustment
Adjusting point   A
Rack position   9.5
Pump speed r/min   500 500 500
Average injection quantity mm3/st.   120 117 123
Max. variation between cylinders %   0 -4 4
Fixing the lever   *
Injection quantity adjustment_02
Adjusting point   B
Rack position   9.6
Pump speed r/min   700 700 700
Average injection quantity mm3/st.   121.8 119.8 123.8
Max. variation between cylinders %   0 -2 2
Basic   *
Fixing the lever   *
Injection quantity adjustment_03
Adjusting point   C
Rack position   10.4
Pump speed r/min   1100 1100 1100
Average injection quantity mm3/st.   145 142 148
Max. variation between cylinders %   0 -4 4
Fixing the lever   *
Injection quantity adjustment_04
Adjusting point   D
Rack position   5.4+-0.5
Pump speed r/min   225 225 225
Average injection quantity mm3/st.   11.5 8.5 14.5
Max. variation between cylinders %   0 -15 15
Fixing the rack   *
Injection quantity adjustment_05
Adjusting point   E
Rack position   -
Pump speed r/min   100 100 100
Average injection quantity mm3/st.   140 140 160
Fixing the lever   *
Remarks
After startup boost setting

Injection quantity adjustment_06
Adjusting point   F
Rack position   9.4+-0.5
Pump speed r/min   1175 1175 1175
Average injection quantity mm3/st.   126 121 131
Max. variation between cylinders %   0 -4 4
Fixing the lever   *
Timer adjustment
Pump speed r/min   850
Advance angle deg.   0.5
Timer adjustment_02
Pump speed r/min   1000
Advance angle deg.   1.7 1.2 2.2
Timer adjustment_03
Pump speed r/min   1100
Advance angle deg.   3.5 3.2 3.8
Remarks
Finish


Test data Ex:

Governor adjustment

Test data 106871-4123

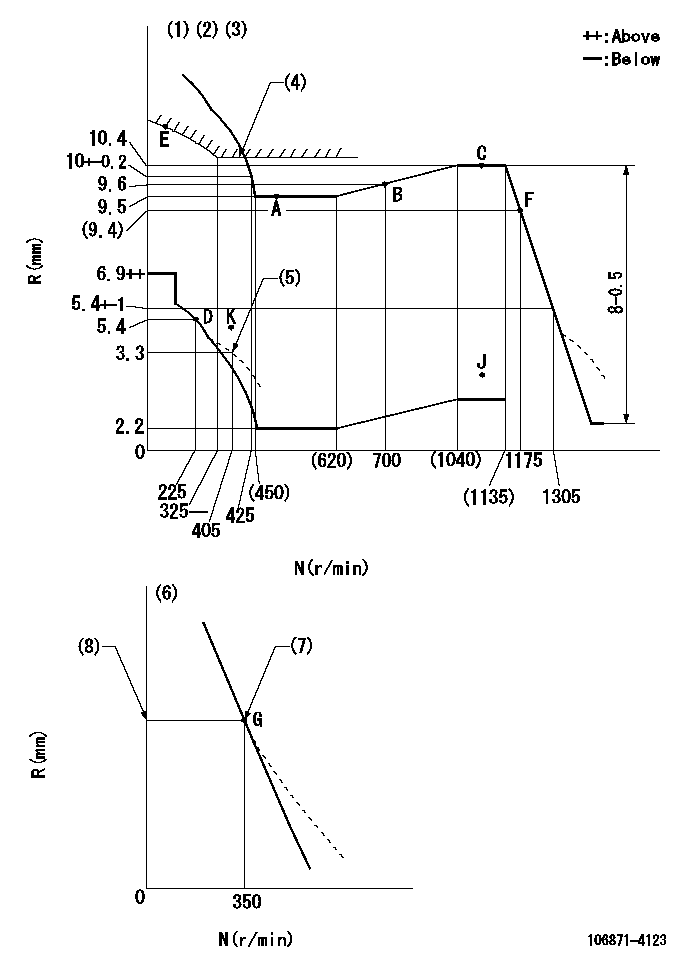

N:Pump speed R:Rack position (mm) (1)Lever ratio: RT (2)Target shim dimension: TH (3)Tolerance for racks not indicated: +-0.05mm. (4)Excess fuel setting for starting: SXL (N = N1) (5)Damper spring setting (6)Variable speed specification: idling adjustment (7)Main spring setting (8)Rack position = actual measurement
----------
RT=0.8 TH=2.1mm SXL=10.5+0.2mm N1=350r/min
----------

Speed control lever angle

Test data 106871-4123

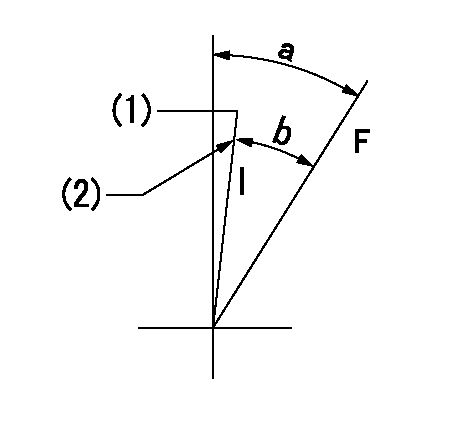

F:Full speed I:Idle (1)Pump speed = aa (2)Stopper bolt setting
----------
aa=350r/min
----------
a=(20.5deg)+-5deg b=(15deg)+-5deg

0000000901

Test data 106871-4123
F:Full load I:Idle (1)Use the hole at R = aa (2)Stopper bolt setting
----------
aa=42mm
----------
a=39deg+-5deg b=39deg+-3deg

Stop lever angle

Test data 106871-4123
N:Pump normal S:Stop the pump. (1)Drive side
----------

----------
a=30deg+-5deg b=64deg+-5deg

0000001201

Test data 106871-4123
(1)Minimum - maximum speed specification (2)Variable speed specification (3)(Actual measurement) (4)(Actual measurement)
----------

----------

0000001501 LEVER

Test data 106871-4123
2-stage changeover lever adjustment (A) Speed lever (B) Load lever (C) 2-stage changeover lever (D) Link (E) Bolt (G) Variable speed specifications (H) Minimum maximum speed specifications F:Full speed I:Idle 1. Minimum-maximum speed specification adjustment (when running) (1)After completing governor adjustment, hold the 2-stage changeover lever (C) so that the speed lever (A) contacts the full speed stopper. (2)In this condition, the load lever is held in the idle position. (3)Adjust bolt (E) so that the clearance between the pin underneath lever (C) and the end of the long groove in link (D) is L. (4)Lock using the nut. 2. Variable speed specification adjustment (at operation) (1)Hold the 2-stage changeover lever (C) so that the load lever (B) contacts the full load stopper. (When the load lever is equipped with a cancel mechanism, move it so that it contacts the stopper without canceling.) (2)In this condition, confirm that the speed lever (A) moves from idle to full speed.
----------
L=1~2mm
----------

Timing setting

Test data 106871-4123
(1)Pump vertical direction (2)Coupling's key groove position at No 1 cylinder's beginning of injection (3)- (4)-
----------

----------
a=(80deg)
