106871-0303 ZEXEL 9 400 618 016 BOSCH INJECTION-PUMP ASSEMBLY 9400618016 1068710303 1671397614

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH 9 400 618 016 9400618016

ZEXEL 106871-0303 1068710303

NISSAN-DIESEL 1671397614 1671397614

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 106871-0303 zexel genuine, new aftermarket engine parts with delivery

Cross reference number

BOSCH 9 400 618 016 9400618016

ZEXEL 106871-0303 1068710303

NISSAN-DIESEL 1671397614 1671397614

Zexel num

Bosch num

Firm num

Name

106871-0303

9 400 618 016

1671397614 NISSAN-DIESEL

INJECTION-PUMP ASSEMBLY
RE8 * K

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 8-3-600

Overflow valve opening pressure kPa 157 123 191

Overflow valve opening pressure kgf/cm2 1.6 1.25 1.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-8-7-5- 4-3-6-2

Pre-stroke mm 3.65 3.6 3.7

Beginning of injection position
Governor side NO.1

Difference between angles 1
Cal 1-8 deg. 45 44.5 45.5

Difference between angles 2
Cal 1-7 deg. 90 89.5 90.5

Difference between angles 3
Cal 1-5 deg. 135 134.5 135.5

Difference between angles 4
Cal 1-4 deg. 180 179.5 180.5

Difference between angles 5
Cal 1-3 deg. 225 224.5 225.5

Difference between angles 6
Cal 1-6 deg. 270 269.5 270.5

Difference between angles 7
Cyl.1-2 deg. 315 314.5 315.5

Injection quantity adjustment

Adjusting point A

Rack position 10

Pump speed r/min 700 700 700

Average injection quantity mm3/st. 105.2 104.2 106.2

Max. variation between cylinders % 0 -4 4

Basic *

Fixing the lever *

Injection quantity adjustment_02

Adjusting point B

Rack position 6.3+-0.5

Pump speed r/min 250 250 250

Average injection quantity mm3/st. 12.9 10.9 14.9

Max. variation between cylinders % 0 -10 10

Fixing the rack *

Timer adjustment

Pump speed r/min 750

Advance angle deg. 0.5

Timer adjustment_02

Pump speed r/min 900

Advance angle deg. 1.4 0.9 1.9

Timer adjustment_03

Pump speed r/min 1150

Advance angle deg. 5.5 5 6

Remarks
Finish

Test data Ex:

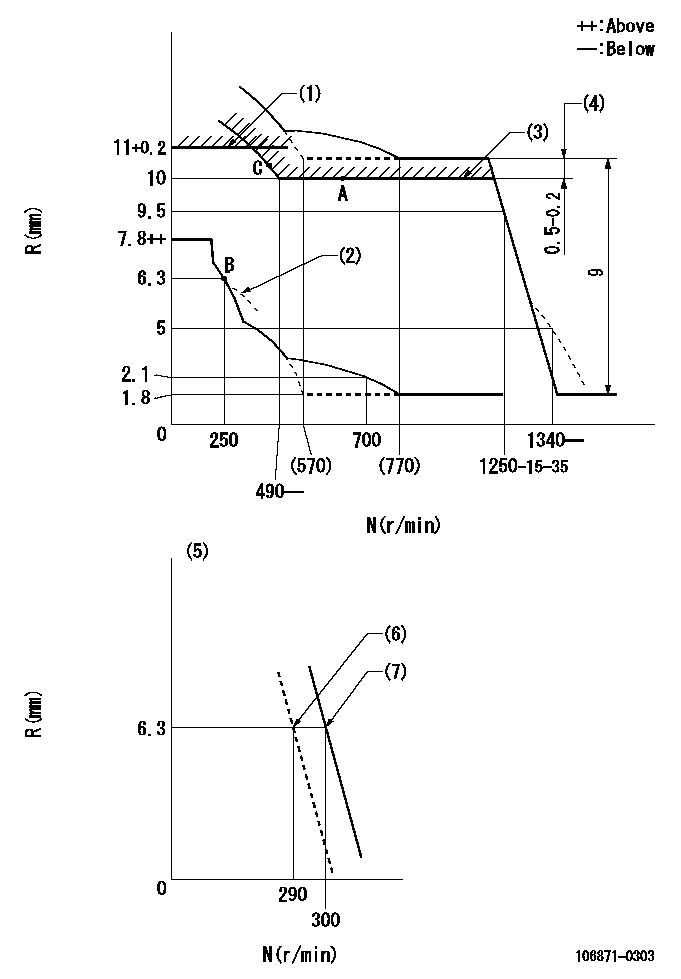

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Rack limit using stop lever (at N = N1 or less). (2)Damper spring setting: DL (3)Excess fuel setting for starting (4)At pump speed N2 (5)Variable speed specification: idling adjustment (6)Main spring setting (7)Set idle sub-spring
----------
N1=100r/min DL=6.3-0.2mm N2=1100r/min
----------

Speed control lever angle

F:Full speed I:Idle (1)Stopper bolt setting
----------

----------
a=(12deg)+-5deg b=(24deg)+-5deg

0000000901

F:Full load I:Idle (1)Stopper bolt setting
----------

----------
a=24.5deg+-5deg b=31deg+-3deg

Stop lever angle

N:Pump normal S:Stop the pump. (1)Rack position = aa (2)Use the hole at R = bb
----------
aa=11+0.2mm bb=32mm
----------
a=28.5deg+-5deg b=3deg+-5deg

Timing setting

(1)Pump vertical direction (2)Position of the coupling's key groove at the beginning of injection of the No. 8 cylinder. (3)- (4)-
----------

----------
a=(90deg)
