Cross reference number

ZEXEL 106871-0082 1068710082

Zexel num

Bosch num

Firm num

Name

106871-0082
106871-0551

NISSAN-DIESEL

INJECTION-PUMP ASSEMBLY
RD8T *

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 8-3-600

Overflow valve opening pressure kPa 157 123 191

Overflow valve opening pressure kgf/cm2 1.6 1.25 1.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-8-7-5- 4-3-6-2

Pre-stroke mm 3.65 3.6 3.7

Beginning of injection position
Governor side NO.1

Difference between angles 1
Cal 1-8 deg. 45 44.5 45.5

Difference between angles 2
Cal 1-7 deg. 90 89.5 90.5

Difference between angles 3
Cal 1-5 deg. 135 134.5 135.5

Difference between angles 4
Cal 1-4 deg. 180 179.5 180.5

Difference between angles 5
Cal 1-3 deg. 225 224.5 225.5

Difference between angles 6
Cal 1-6 deg. 270 269.5 270.5

Difference between angles 7
Cyl.1-2 deg. 315 314.5 315.5

Injection quantity adjustment

Adjusting point A

Rack position 11.3

Pump speed r/min 750 750 750

Average injection quantity mm3/st. 139.2 137.2 141.2

Max. variation between cylinders % 0 -4 4

Basic *

Fixing the lever *

Injection quantity adjustment_02

Adjusting point B

Rack position 10

Pump speed r/min 750 750 750

Average injection quantity mm3/st. 107.8 105.8 109.8

Max. variation between cylinders % 0 -4 4

Fixing the lever *

Injection quantity adjustment_03

Adjusting point C

Rack position 6+-0.5

Pump speed r/min 300 300 300

Average injection quantity mm3/st. 12.8 10.8 14.8

Max. variation between cylinders % 0 -10 10

Fixing the rack *

Timer adjustment

Pump speed r/min 300+100

Advance angle deg. 0 0 0

Remarks
Start

Timer adjustment_02

Pump speed r/min 600

Advance angle deg. 1.7 1.2 2.2

Timer adjustment_03

Pump speed r/min 900

Advance angle deg. 3.4 2.9 3.9

Timer adjustment_04

Pump speed r/min -

Advance angle deg. 5.5 5 6

Remarks
Measure the actual speed, stop

Test data Ex:

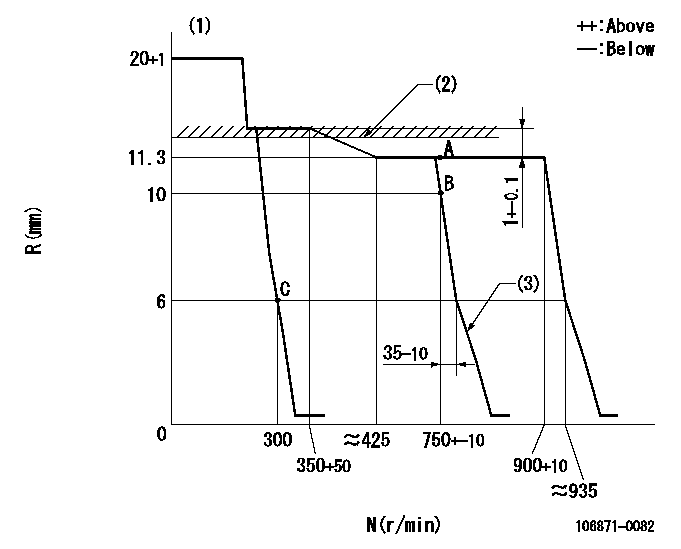

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Target notch: K (2)RACK LIMIT: RAL (3)Idle sub spring setting: L1.
----------
K=17 RAL=12+-0.1mm L1=6-0.5mm
----------

Speed control lever angle

F:Full speed I:Idle S:Stop (1)Set the pump speed at aa. (At delivery) (2)Pump speed = bb
----------
aa=900r/min bb=750r/min
----------
a=7deg+-5deg b=32deg+-3deg c=27deg+-5deg d=7deg+-5deg

Stop lever angle

N:Pump normal S:Stop the pump.
----------

----------
a=26deg+-5deg b=53deg+-5deg

0000001501 GOV FULL LOAD ADJUSTMENT

Title1:Full load stopper adjustment Title2:Governor set speed LABEL1:Distinguishing LABEL2:Pump speed (r/min) LABEL3:Ave. injection quantity (mm3/st) LABEL4:Max. var. bet. cyl. LABEL5:Remarks LABEL6:Distinguishing LABEL7:Governor set speed (r/min) LABEL8:Remarks (1)Adjustment conditions are the same as those for measuring injection quantity. (2)-
----------

----------
a1=B a2=- r1=750r/min r2=- Q1=139.2+-2mm3/st Q2=- c1=+-4% c2=- a3=18 a4=15 r3=900r/min r4=750r/min
