106861-1417 ZEXEL 9 400 613 338 BOSCH INJECTION-PUMP ASSEMBLY 9400613338 1068611417 1156020375




Information injection-pump assembly

BOSCH 9 400 613 338 9400613338
ZEXEL 106861-1417 1068611417
ISUZU 1156020375 1156020375
106861-1417 INJECTION-PUMP ASSEMBLY
Rating:
74
Buy INJECTION-PUMP ASSEMBLY 106861-1417 zexel genuine, new aftermarket engine parts with delivery

Service parts 106861-1417 INJECTION-PUMP ASSEMBLY:

1. _
2. FUEL INJECTION PUMP 106086-9122
3. GOVERNOR 105489-1003
4. SUPPLY PUMP 105237-1390
5. AUTOM. ADVANCE MECHANIS 105687-0711
6. COUPLING PLATE
7. COUPLING PLATE
8. _
9. _
10. NOZZLE AND HOLDER ASSY 105100-7192
11. Nozzle and Holder 1-15300-163-2
12. Open Pre:MPa(Kqf/cm2) 15.7{160}/22.1{225}
13. NOZZLE-HOLDER 105031-4831
14. NOZZLE 105015-6651
15. NOZZLE SET

Include in #1:

106861-1417 as INJECTION-PUMP ASSEMBLY

Cross reference number

BOSCH 9 400 613 338 9400613338
ZEXEL 106861-1417 1068611417
ISUZU 1156020375 1156020375


Zexel num
Bosch num
Firm num
Name
106861-1417
106861-1418
9 400 613 338
1156020375  ISUZU
INJECTION-PUMP ASSEMBLY
8PC1 * K 14CD PE8P PE

Calibration Data:

Adjustment conditions
Test oil
1404 Test oil
  ISO4113 or {SAEJ967d}
Test oil temperature degC   40 40 45
Nozzle and nozzle holder   105780-8140
Bosch type code   EF8511/9A
Nozzle   105780-0000
Bosch type code   DN12SD12T
Nozzle holder   105780-2080
Bosch type code   EF8511/9
Opening pressure MPa   17.2
Opening pressure kgf/cm2   175
Injection pipe
Outer diameter - inner diameter - length (mm)
mm   8-3-600
Overflow valve (drive side)   134424-3720
Overflow valve opening pressure (drive side) kPa   255 255 255
Overflow valve opening pressure (drive side) kgf/cm2   2.6 2.6 2.6
Overflow valve (governor side)   134424-2720
Overflow valve opening pressure (governor side) kPa   255 255 255
Overflow valve opening pressure (governor side) kgf/cm2   2.6 2.6 2.6
Tester oil delivery pressure kPa   157 157 157
Tester oil delivery pressure kgf/cm2   1.6 1.6 1.6
Direction of rotation (viewed from drive side)
Right
  R
Injection timing adjustment
Direction of rotation (viewed from drive side)
Right
  R
Injection order   1-8-7-3- 6-5-4-2
Pre-stroke mm   4 3.97 4.03
Beginning of injection position
Governor side
  NO.1
Difference between angles 1
Cal 1-8
deg.   45 44.75 45.25
Difference between angles 2
Cal 1-7
deg.   90 89.75 90.25
Difference between angles 3
Cal 1-3
deg.   135 134.75 135.25
Difference between angles 4
Cal 1-6
deg.   180 179.75 180.25
Difference between angles 5
Cal 1-5
deg.   225 224.75 225.25
Difference between angles 6
Cal 1-4
deg.   270 269.75 270.25
Difference between angles 7
Cyl.1-2
deg.   315 314.75 315.25
Injection quantity adjustment
Adjusting point   A
Rack position   7
Pump speed r/min   1250 1250 1250
Average injection quantity mm3/st.   89.1 87.1 91.1
Fixing the lever   *
Injection quantity adjustment_02
Adjusting point   B
Rack position   7.3
Pump speed r/min   700 700 700
Average injection quantity mm3/st.   78.8 77.3 80.3
Max. variation between cylinders %   0 -2 2
Basic   *
Fixing the lever   *
Injection quantity adjustment_03
Adjusting point   C
Rack position   5+-0.5
Pump speed r/min   225 225 225
Average injection quantity mm3/st.   8 6.6 9.4
Max. variation between cylinders %   0 -13 13
Fixing the rack   *
Timer adjustment
Pump speed r/min   900+50
Advance angle deg.   0 0 0
Remarks
Start

Timer adjustment_02
Pump speed r/min   1100
Advance angle deg.   4.1 3.6 4.6
Timer adjustment_03
Pump speed r/min   (1200)
Advance angle deg.   6.5 6.5 6.5
Remarks
Finish


Test data Ex:

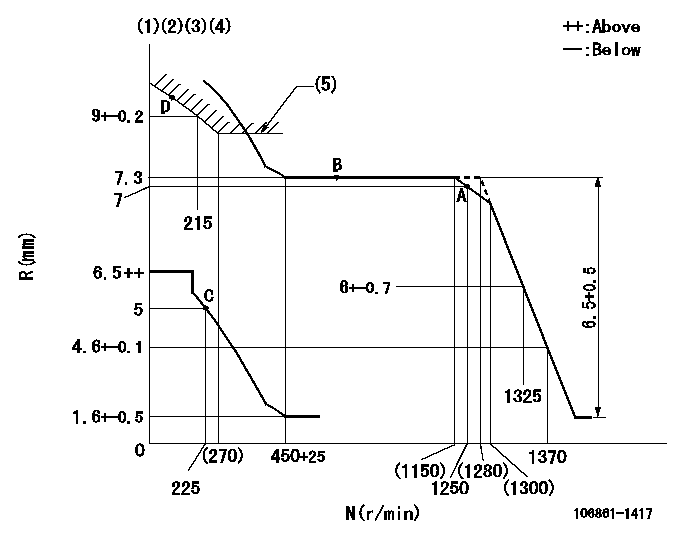

Governor adjustment

Test data 106861-1417
N:Pump speed R:Rack position (mm) (1)Lever ratio: RT (2)Target shim dimension: TH (3)Supplied with damper spring not set. (4)Deliver with positive torque control spring not operating (5)Excess fuel setting for starting: SXL (N = N1)
----------
RT=0.8 TH=2.1mm SXL=8.5+-0.1mm N1=300r/min
----------

Speed control lever angle

Test data 106861-1417
F:Full speed
----------

----------
a=6.5deg+-5deg

0000000901

Test data 106861-1417
F:Full load I:Idle (1)Stopper bolt setting (2)Use the hole at R = aa
----------
aa=35mm
----------
a=10deg+-5deg b=30deg+-3deg

Stop lever angle

Test data 106861-1417
N:Pump normal S:Stop the pump.
----------

----------
a=60deg+-5deg b=73deg+-5deg

Timing setting

Test data 106861-1417
(1)Pump vertical direction (2)Position of "Z" mark at the No 1 cylinder's beginning of injection (governor side) (3)B.T.D.C.: aa (4)-
----------
aa=12deg
----------
a=(170deg)




Information:

4. Install a new seal washer (6).Use 6V-4979 Carbon Stop Seal Tool (4) to install new carbon dam (5) on nozzle (2).7000 Series Nozzles
The part number for compression seal (3) is not the same for all nozzles. If the correct seal is not installed, the result will be high emissions. This is NOT acceptable.
Troubleshooting (Pencil-Type Fuel Nozzles Only)
A. To troubleshoot these nozzles, refer to the Troubleshooting Guide For Pencil-Type Fuel Nozzles located in this manual.B. Refer to Special Instruction SEHS8627 "Use of 8S-2245 Nozzle Cleaning Tool Group" for the correct procedure (according to the part number of the nozzle) in order to clean these nozzles. C. If VO is LESS than the specified value for a specific part number, DO NOT use the nozzle.Troubleshooting Guide For Pencil-Type Fuel Nozzles
Troubleshooting Guide For Caterpillar 7000 Series Direct Injection Fuel Nozzles
Engine Nozzle Test Record Form (Sample Copy)
Repair/Calibration Information For 5P-4150 Tester Group
For the repair and/or calibration of the 5P-4150 Tester Group, contact the manufacturer: U.S. Mail:OTC Division
SPX Corporation
655 Eisenhower Drive
Owatonna, Minnesota 55060, U.S.A.
Telephone:(507) 455-7000(800) 533-6127 Fax:(800) 955-8329Test Equipment Calibration
Caterpillar fuel nozzle and unit injector testers feature premium quality, liquid filled gauges for high accuracy and durability.Pressure gauges, in this application must be of high quality in order to provide accurate and consistent test results.To maintain this high degree of accuracy, gauge calibration should be checked at a MINIMUM of once a year. Additional information can be found in NEHS0631 "General Maintenance And Troubleshooting For Fuel Injection Equipment Test Stands (FIETS) And 5P-4150 Nozzle Tester". However, calibration should be checked at any time when the test results have become INCONSISTENT or if the gauge needle does NOT return to the 0 (zero) range when the test pressure is relieved.Calibration
Two methods are available for gauge calibration:* Method 1: Calibration by gauge manufacturer.* Method 2: 5P-8558 Pressure Gauge Calibrating Group. Additional information can be found in NEHS0631 "General Maintenance And Troubleshooting For Fuel Injection Equipment Test Stands (FIETS) And 5P-4150 Nozzle Tester".Calibration By Gauge Manufacturer (Method 1)
Certified calibration services are offered by Carrier - Oehler Company, a Caterpillar certified supplier of premium quality gauges.The Carrier - Oehler Company can promptly check and recalibrate gauges at a low cost.The Carrier - Oehler Company will also repair and recalibrate damaged gauges at a fraction of the cost of a new gauge.When sending gauges to Carrier - Oehler Company, include the following information:* Person or department that gauges and/or correspondence is to be directed to.* List the quantity and a brief description of the gauge(s) problem or the service requested.* Dealer name and address.* Telephone number.* Fax number. The Carrier - Oehler Company will advise you if repair costs exceed 50 percent of a new gauge. Questions on costs, service, and repair time should be directed to the Caterpillar Repair Desk:(800) 321-3241 Shipping:Carrier - Oehler Company
16965 Vincennes Avenue
South Holland, Illinois 60473
U.S. Mail:Carrier - Oehler Company
Post Office Box 40
16965 Vincennes Avenue
South Holland, Illinois 60473
Telephone:(708) 339-8200 Fax:(708) 339-98305P-8558 Pressure Gauge Calibrating Group (Method 2)
(1) 5P-0946 Box Assembly.(2) 1P-2375 Quick
