Service parts 106692-9390 INJECTION-PUMP ASSEMBLY:

1. _

2. FUEL INJECTION PUMP 106069-7430

3. GOVERNOR 105407-6290

4. SUPPLY PUMP 105217-1390

5. AUTOM. ADVANCE MECHANIS

6. COUPLING PLATE

7. COUPLING PLATE

8. _

9. _

10. NOZZLE AND HOLDER ASSY

11. Nozzle and Holder

12. Open Pre:MPa(Kqf/cm2)

13. NOZZLE-HOLDER

14. NOZZLE

15. NOZZLE SET

Include in #1:

106692-9390 as INJECTION-PUMP ASSEMBLY

Cross reference number

ZEXEL 106692-9390 1066929390

Zexel num

Bosch num

Firm num

Name

106692-9390

INJECTION-PUMP ASSEMBLY

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8130

Bosch type code EFEP215A

Nozzle 105780-0050

Bosch type code DN6TD119NP1T

Nozzle holder 105780-2090

Bosch type code EFEP215

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 8-3-600

Overflow valve 131424-1520

Overflow valve opening pressure kPa 157 123 191

Overflow valve opening pressure kgf/cm2 1.6 1.25 1.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-4-2-6- 3-5

Pre-stroke mm 2.9 2.85 2.95

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-4 deg. 60 59.5 60.5

Difference between angles 2
Cyl.1-2 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cal 1-3 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-5 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point A

Rack position 12.5

Pump speed r/min 900 900 900

Each cylinder's injection qty mm3/st. 402 394 410

Basic *

Fixing the rack *

Injection quantity adjustment_02

Adjusting point C

Rack position 4.6+-0.5

Pump speed r/min 350 350 350

Each cylinder's injection qty mm3/st. 31.5 27.4 35.6

Fixing the rack *

Injection quantity adjustment_03

Adjusting point D

Rack position -

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 450 440 460

Fixing the lever *

Rack limit *

Test data Ex:

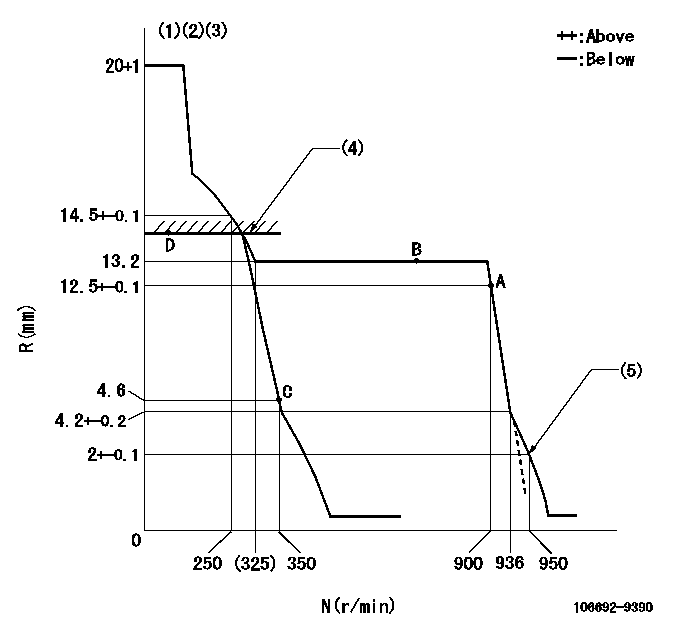

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Target notch: K (2)Tolerance for racks not indicated: +-0.05mm. (3)Confirm that the rack is pulled back to R = R1 or less at solenoid operation (N = 0). (4)RACK LIMIT (5)Set idle sub-spring
----------
K=9 R1=4.1mm
----------

Speed control lever angle

F:Full speed I:Idle (1)Stopper bolt setting
----------

----------
a=21deg+-5deg b=24deg+-5deg

Stop lever angle

N:Pump normal S:Stop the pump. (1)Rack position = aa or less, speed = bb (at stop lever stop N = cc[speed lever full] confirm non-injection)
----------
aa=4.1mm bb=0r/min cc=100r/min
----------
a=20deg+-5deg b=53deg+-5deg

Timing setting

(1)Pump vertical direction (2)Position of camshaft's key groove at No 1 cylinder's beginning of injection (3)- (4)-
----------

----------
a=(50deg)
