106692-4952 ZEXEL 9 400 617 866 BOSCH INJECTION-PUMP ASSEMBLY 9400617866 1066924952 6151711664

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH 9 400 617 866 9400617866

ZEXEL 106692-4952 1066924952

KOMATSU 6151711664 6151711664

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 106692-4952 zexel genuine, new aftermarket engine parts with delivery

Cross reference number

BOSCH 9 400 617 866 9400617866

ZEXEL 106692-4952 1066924952

KOMATSU 6151711664 6151711664

Zexel num

Bosch num

Firm num

Name

106692-4952

9 400 617 866

6151711664 KOMATSU

INJECTION-PUMP ASSEMBLY
S6D125 K

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 8-3-600

Overflow valve 131425-2120

Overflow valve opening pressure kPa 157 123 191

Overflow valve opening pressure kgf/cm2 1.6 1.25 1.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Left L

Injection timing adjustment

Direction of rotation (viewed from drive side)
Left L

Injection order 1-5-3-6- 2-4

Pre-stroke mm 3.75 3.7 3.8

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-5 deg. 60 59.5 60.5

Difference between angles 2
Cal 1-3 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cyl.1-2 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-4 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point A

Rack position 9.8

Pump speed r/min 1100 1100 1100

Average injection quantity mm3/st. 151 149 153

Max. variation between cylinders % 0 -3 3

Basic *

Fixing the lever *

Injection quantity adjustment_02

Adjusting point D

Rack position 6.4+-0.5

Pump speed r/min 550 550 550

Average injection quantity mm3/st. 30.6 29.1 32.1

Max. variation between cylinders % 0 -15 15

Fixing the rack *

Test data Ex:

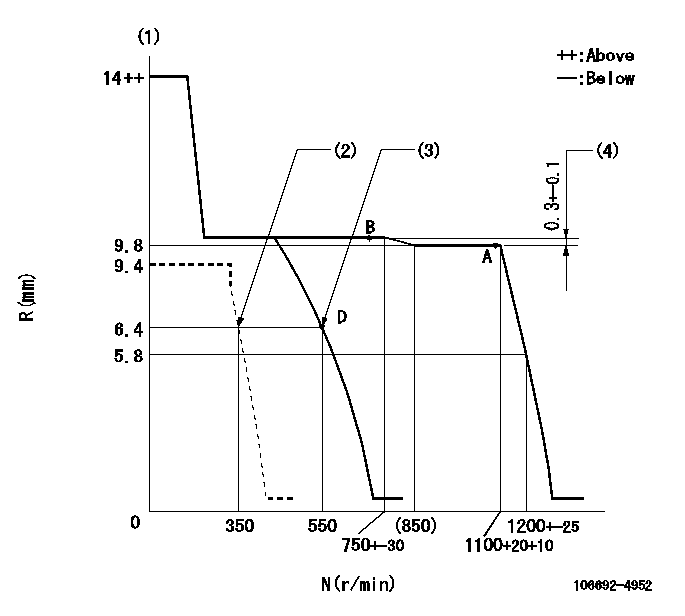

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Target notch: K (2)Set idle sub-spring (3)Main spring setting (4)Rack difference between N = N1 and N = N2
----------
K=11 N1=1100r/min N2=700r/min
----------

Speed control lever angle

F:Full speed I:Idle (1)Stopper bolt setting
----------

----------
a=8deg+-5deg b=22deg+-5deg

Stop lever angle

N:Pump normal S:Stop the pump. (1)No return spring (2)Use hole at R = aa (left hand side)
----------
aa=27mm
----------
a=26.5deg+-5deg b=53deg+-5deg

Timing setting

(1)Pump vertical direction (2)Coupling's key groove position at No 1 cylinder's beginning of injection (3)- (4)-
----------

----------
a=(150deg)
