106691-0211 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1066910211




Information injection-pump assembly

ZEXEL 106691-0211 1066910211
106691-0211 INJECTION-PUMP ASSEMBLY
Rating:
21
Buy INJECTION-PUMP ASSEMBLY 106691-0211 zexel genuine, new aftermarket engine parts with delivery

Cross reference number

ZEXEL 106691-0211 1066910211


Zexel num
Bosch num
Firm num
Name
106691-0211


INJECTION-PUMP ASSEMBLY

Calibration Data:

Adjustment conditions
Test oil
1404 Test oil
  ISO4113 or {SAEJ967d}
Test oil temperature degC   40 40 45
Nozzle and nozzle holder   105780-8140
Bosch type code   EF8511/9A
Nozzle   105780-0000
Bosch type code   DN12SD12T
Nozzle holder   105780-2080
Bosch type code   EF8511/9
Opening pressure MPa   17.2
Opening pressure kgf/cm2   175
Injection pipe
Outer diameter - inner diameter - length (mm)
mm   8-3-600
Overflow valve opening pressure kPa   157 123 191
Overflow valve opening pressure kgf/cm2   1.6 1.25 1.95
Tester oil delivery pressure kPa   157 157 157
Tester oil delivery pressure kgf/cm2   1.6 1.6 1.6
Direction of rotation (viewed from drive side)
Right
  R
Injection timing adjustment
Direction of rotation (viewed from drive side)
Right
  R
Injection order   1-4-2-6- 3-5
Pre-stroke mm   3.2 3.15 3.25
Beginning of injection position
Drive side
  NO.1
Difference between angles 1
Cal 1-4
deg.   60 59.5 60.5
Difference between angles 2
Cyl.1-2
deg.   120 119.5 120.5
Difference between angles 3
Cal 1-6
deg.   180 179.5 180.5
Difference between angles 4
Cal 1-3
deg.   240 239.5 240.5
Difference between angles 5
Cal 1-5
deg.   300 299.5 300.5
Injection quantity adjustment
Adjusting point   A
Rack position   10.2
Pump speed r/min   650 650 650
Average injection quantity mm3/st.   191.6 189.6 193.6
Max. variation between cylinders %   0 -3 3
Basic   *
Fixing the lever   *
Injection quantity adjustment_02
Adjusting point   B
Rack position   9.7+-0.5
Pump speed r/min   1050 1050 1050
Average injection quantity mm3/st.   189 186 192
Max. variation between cylinders %   0 -4 4
Fixing the lever   *
Injection quantity adjustment_03
Adjusting point   C
Rack position   4.8+-0.5
Pump speed r/min   225 225 225
Average injection quantity mm3/st.   22.7 20.3 25.1
Max. variation between cylinders %   0 -15 15
Fixing the rack   *
Timer adjustment
Pump speed r/min   1150
Advance angle deg.   0.5
Timer adjustment_02
Pump speed r/min   -
Advance angle deg.   1 1 1
Remarks
Measure the actual speed, stop


Test data Ex:

Governor adjustment

Test data 106691-0211

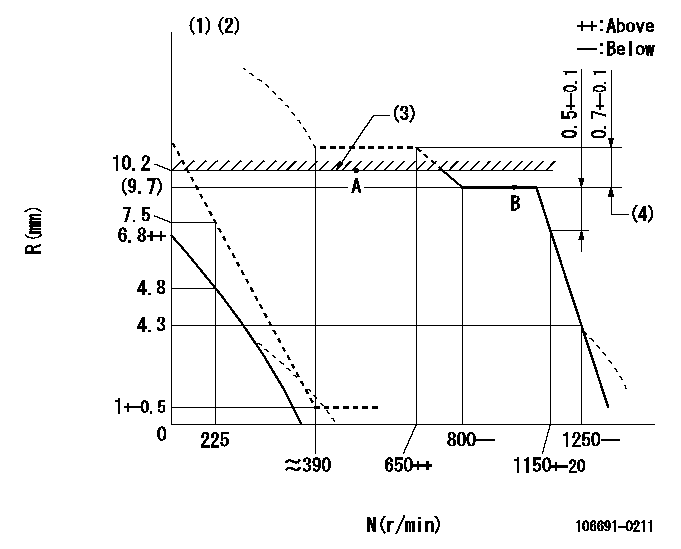

N:Pump speed R:Rack position (mm) (1)Damper spring setting: DL (2)After completing adjustment of the broken line, set the lever at the unbroken line position. (3)Stop lever setting (4)Torque control stroke
----------
DL=4.2-0.2mm
----------

0000000901

Test data 106691-0211
F:Full load I:Idle (1)Stopper bolt setting
----------

----------
a=16deg+-5deg b=21deg+-3deg

Stop lever angle

Test data 106691-0211
N:Pump normal S:Stop the pump. (1)Rack position = aa
----------
aa=10.2mm
----------
a=4deg+-5deg b=31deg+-5deg

Timing setting

Test data 106691-0211
(1)Pump vertical direction (2)Coupling's key groove position at No 1 cylinder's beginning of injection (3)- (4)-
----------

----------
a=(10deg)
