106682-9861 ZEXEL 9 400 619 961 BOSCH INJECTION-PUMP ASSEMBLY 9400619961 1066829861 6152751280




Information injection-pump assembly

BOSCH 9 400 619 961 9400619961
ZEXEL 106682-9861 1066829861
KOMATSU 6152751280 6152751280
106682-9861 INJECTION-PUMP ASSEMBLY
Rating:
82
Buy INJECTION-PUMP ASSEMBLY 106682-9861 zexel genuine, new aftermarket engine parts with delivery

Service parts 106682-9861 INJECTION-PUMP ASSEMBLY:

1. _
2. FUEL INJECTION PUMP 106068-3360
3. GOVERNOR 105447-2021
4. SUPPLY PUMP 105237-4910
5. AUTOM. ADVANCE MECHANIS
6. COUPLING PLATE 105664-2391
7. COUPLING PLATE 156639-4420
8. _
9. _
10. NOZZLE AND HOLDER ASSY
11. Nozzle and Holder
12. Open Pre:MPa(Kqf/cm2)
13. NOZZLE-HOLDER
14. NOZZLE
15. NOZZLE SET

Include in #1:

106682-9861 as INJECTION-PUMP ASSEMBLY

Cross reference number

BOSCH 9 400 619 961 9400619961
ZEXEL 106682-9861 1066829861
KOMATSU 6152751280 6152751280


Zexel num
Bosch num
Firm num
Name
106682-9861
106682-9862
9 400 619 961
6152751280  KOMATSU
INJECTION-PUMP ASSEMBLY
6M117A-3 * K

Calibration Data:

Adjustment conditions
Test oil
1404 Test oil
  ISO4113 or {SAEJ967d}
Test oil temperature degC   40 40 45
Nozzle and nozzle holder   105780-8130
Bosch type code   EFEP215A
Nozzle   105780-0050
Bosch type code   DN6TD119NP1T
Nozzle holder   105780-2090
Bosch type code   EFEP215
Opening pressure MPa   17.2
Opening pressure kgf/cm2   175
Injection pipe
Outer diameter - inner diameter - length (mm)
mm   8-4-1000
Overflow valve   131425-1620
Overflow valve opening pressure kPa   255 255 255
Overflow valve opening pressure kgf/cm2   2.6 2.6 2.6
Tester oil delivery pressure kPa   255 255 255
Tester oil delivery pressure kgf/cm2   2.6 2.6 2.6
Direction of rotation (viewed from drive side)
Left
  L
Injection timing adjustment
Direction of rotation (viewed from drive side)
Left
  L
Injection order   1-5-3-6- 2-4
Pre-stroke mm   3.5 3.45 3.55
Beginning of injection position
Drive side
  NO.1
Difference between angles 1
Cal 1-5
deg.   60 59.5 60.5
Difference between angles 2
Cal 1-3
deg.   120 119.5 120.5
Difference between angles 3
Cal 1-6
deg.   180 179.5 180.5
Difference between angles 4
Cyl.1-2
deg.   240 239.5 240.5
Difference between angles 5
Cal 1-4
deg.   300 299.5 300.5
Injection quantity adjustment
Adjusting point   A
Rack position   15.5
Pump speed r/min   1100 1100 1100
Average injection quantity mm3/st.   411 408 414
Max. variation between cylinders %   0 -3 3
Basic   *
Fixing the lever   *
Boost pressure kPa   131 131
Boost pressure mmHg   980 980
Injection quantity adjustment_02
Adjusting point   C
Rack position   8+-0.5
Pump speed r/min   275 275 275
Average injection quantity mm3/st.   19 17 21
Max. variation between cylinders %   0 -15 15
Fixing the rack   *
Boost pressure kPa   0 0 0
Boost pressure mmHg   0 0 0
Boost compensator adjustment
Pump speed r/min   600 600 600
Rack position   R1-3.9
Boost pressure kPa   30.7 28 33.4
Boost pressure mmHg   230 210 250
Boost compensator adjustment_02
Pump speed r/min   600 600 600
Rack position   R1(15.5)
Boost pressure kPa   117 110.3 123.7
Boost pressure mmHg   880 830 930

Test data Ex:

Governor adjustment

Test data 106682-9861

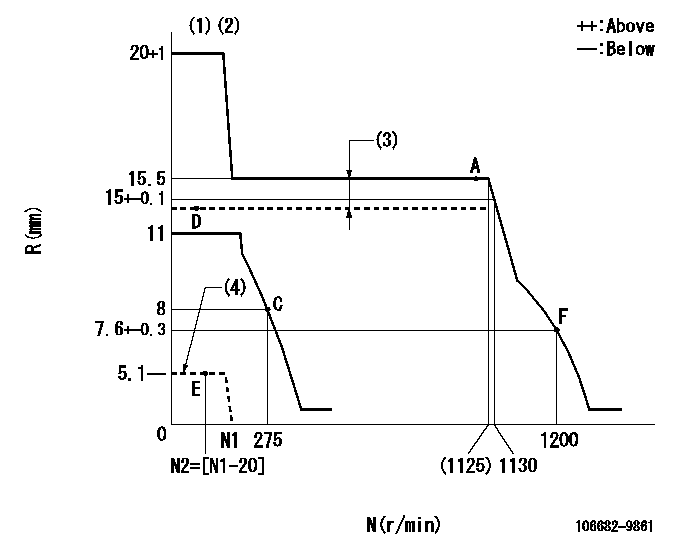

N:Pump speed R:Rack position (mm) (1)Target notch: K (2)Tolerance for racks not indicated: +-0.05mm. (3)Boost compensator stroke: BCL (4)Stop lever at stopping (with the stop lever at full)
----------
K=10 BCL=3.9+-0.1mm
----------

Speed control lever angle

Test data 106682-9861
F:Full speed I:Idle (1)Use the hole at R = aa (2)Stopper bolt setting
----------
aa=90mm
----------
a=4deg+-5deg b=36deg+-5deg

Stop lever angle

Test data 106682-9861
N:Pump normal S:Stop the pump.
----------

----------
a=19deg+-5deg b=53deg+-5deg

Timing setting

Test data 106682-9861
(1)Pump vertical direction (2)Coupling's key groove position at No 1 cylinder's beginning of injection (3)- (4)-
----------

----------
a=(150deg)
