106682-9501 ZEXEL 9 400 617 622 BOSCH INJECTION-PUMP ASSEMBLY 9400617622 1066829501 12666451020




Information injection-pump assembly

BOSCH 9 400 617 622 9400617622
ZEXEL 106682-9501 1066829501
YANMAR 12666451020 12666451020
106682-9501 INJECTION-PUMP ASSEMBLY
Rating:
62
Buy INJECTION-PUMP ASSEMBLY 106682-9501 zexel genuine, new aftermarket engine parts with delivery

Cross reference number

BOSCH 9 400 617 622 9400617622
ZEXEL 106682-9501 1066829501
YANMAR 12666451020 12666451020


Zexel num
Bosch num
Firm num
Name
106682-9501
9 400 617 622
12666451020  YANMAR
INJECTION-PUMP ASSEMBLY
6HAL2 K

Calibration Data:

Adjustment conditions
Test oil
1404 Test oil
  ISO4113 or {SAEJ967d}
Test oil temperature degC   40 40 45
Nozzle and nozzle holder   105780-8130
Bosch type code   EFEP215A
Nozzle   105780-0050
Bosch type code   DN6TD119NP1T
Nozzle holder   105780-2090
Bosch type code   EFEP215
Opening pressure MPa   17.2
Opening pressure kgf/cm2   175
Injection pipe
Outer diameter - inner diameter - length (mm)
mm   8-4-1000
Overflow valve   131425-1620
Overflow valve opening pressure kPa   255 221 289
Overflow valve opening pressure kgf/cm2   2.6 2.25 2.95
Tester oil delivery pressure kPa   157 157 157
Tester oil delivery pressure kgf/cm2   1.6 1.6 1.6
Direction of rotation (viewed from drive side)
Right
  R
Injection timing adjustment
Direction of rotation (viewed from drive side)
Right
  R
Injection order   1-4-2-6- 3-5
Pre-stroke mm   4.1 4.05 4.15
Beginning of injection position
Drive side
  NO.1
Difference between angles 1
Cal 1-4
deg.   60 59.5 60.5
Difference between angles 2
Cyl.1-2
deg.   120 119.5 120.5
Difference between angles 3
Cal 1-6
deg.   180 179.5 180.5
Difference between angles 4
Cal 1-3
deg.   240 239.5 240.5
Difference between angles 5
Cal 1-5
deg.   300 299.5 300.5
Injection quantity adjustment
Adjusting point   A
Rack position   13.2
Pump speed r/min   850 850 850
Each cylinder's injection qty mm3/st.   363 352.1 373.9
Basic   *
Fixing the lever   *
Injection quantity adjustment_02
Adjusting point   B
Rack position   5.3+-0.5
Pump speed r/min   350 350 350
Each cylinder's injection qty mm3/st.   25.5 22.9 28.1
Fixing the rack   *
Injection quantity adjustment_03
Adjusting point   C
Rack position   -
Pump speed r/min   100 100 100
Average injection quantity mm3/st.   345 345 375
Fixing the lever   *
Rack limit   *

Test data Ex:

Governor adjustment

Test data 106682-9501

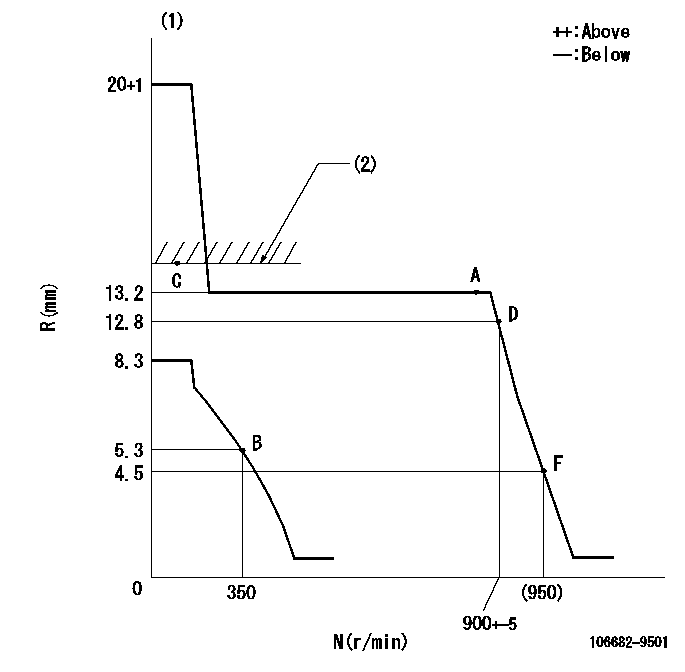

N:Pump speed R:Rack position (mm) (1)Notch fixed: K (2)RACK LIMIT
----------
K=20
----------

Speed control lever angle

Test data 106682-9501
F:Full speed I:Idle S:Stop
----------

----------
a=(25deg)+-5deg b=(43deg)+-5deg c=32deg+-3deg

Stop lever angle

Test data 106682-9501
N:Pump normal S:Stop the pump.
----------

----------
a=20deg+-5deg b=53deg+-5deg

Timing setting

Test data 106682-9501
(1)Pump vertical direction (2)Coupling's key groove position at No 1 cylinder's beginning of injection (3)- (4)-
----------

----------
a=(60deg)
