106682-9330 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1066829330




Information injection-pump assembly

ZEXEL 106682-9330 1066829330
106682-9330 INJECTION-PUMP ASSEMBLY
Rating:
23
Buy INJECTION-PUMP ASSEMBLY 106682-9330 zexel genuine, new aftermarket engine parts with delivery

Service parts 106682-9330 INJECTION-PUMP ASSEMBLY:

1. _
2. FUEL INJECTION PUMP 106068-2820
3. GOVERNOR 105447-1670
4. SUPPLY PUMP 105237-4310
5. AUTOM. ADVANCE MECHANIS
6. COUPLING PLATE 105664-0340
7. COUPLING PLATE
8. _
9. _
10. NOZZLE AND HOLDER ASSY 105111-4630
11. Nozzle and Holder 6212-11-3800
12. Open Pre:MPa(Kqf/cm2) 24.5{250}
13. NOZZLE-HOLDER 105041-7122
14. NOZZLE 105025-0790
15. NOZZLE SET

Include in #1:

106682-9330 as INJECTION-PUMP ASSEMBLY

Cross reference number

ZEXEL 106682-9330 1066829330


Zexel num
Bosch num
Firm num
Name
106682-9330


INJECTION-PUMP ASSEMBLY

Calibration Data:

Adjustment conditions
Test oil
1404 Test oil
  ISO4113 or {SAEJ967d}
Test oil temperature degC   40 40 45
Nozzle and nozzle holder   105780-8130
Bosch type code   EF8511/9A
Nozzle   105780-0050
Bosch type code   DN6TD119NP1T
Nozzle holder   105780-2090
Bosch type code   EFEP215
Opening pressure MPa   17.2
Opening pressure kgf/cm2   175
Injection pipe
Outer diameter - inner diameter - length (mm)
mm   8-4-1000
Overflow valve   131424-3420
Overflow valve opening pressure kPa   255 221 289
Overflow valve opening pressure kgf/cm2   2.6 2.25 2.95
Tester oil delivery pressure kPa   157 157 157
Tester oil delivery pressure kgf/cm2   1.6 1.6 1.6
Direction of rotation (viewed from drive side)
Right
  R
Injection timing adjustment
Direction of rotation (viewed from drive side)
Right
  R
Injection order   1-5-3-6- 2-4
Pre-stroke mm   3 2.95 3.05
Beginning of injection position
Drive side
  NO.1
Difference between angles 1
Cal 1-5
deg.   60 59.5 60.5
Difference between angles 2
Cal 1-3
deg.   120 119.5 120.5
Difference between angles 3
Cal 1-6
deg.   180 179.5 180.5
Difference between angles 4
Cyl.1-2
deg.   240 239.5 240.5
Difference between angles 5
Cal 1-4
deg.   300 299.5 300.5
Injection quantity adjustment
Adjusting point   A
Rack position   13.8
Pump speed r/min   900 900 900
Average injection quantity mm3/st.   418 413 423
Max. variation between cylinders %   0 -3 3
Basic   *
Fixing the rack   *
Injection quantity adjustment_02
Adjusting point   C
Rack position   7.2+-0.5
Pump speed r/min   400 400 400
Average injection quantity mm3/st.   20 18.5 21.5
Max. variation between cylinders %   0 -15 15
Fixing the rack   *
Injection quantity adjustment_03
Adjusting point   E
Rack position   -
Pump speed r/min   100 100 100
Average injection quantity mm3/st.   420 420 440
Fixing the lever   *
Rack limit   *

Test data Ex:

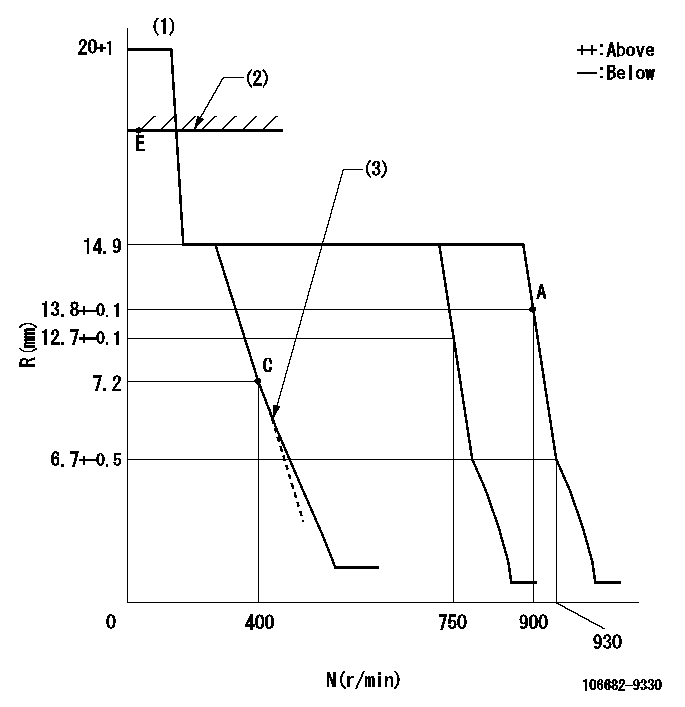

Governor adjustment

Test data 106682-9330
N:Pump speed R:Rack position (mm) (1)Target notch: K (2)RACK LIMIT (3)Idle sub-spring setting: L1
----------
K=7 L1=7.2-0.5mm
----------

Speed control lever angle

Test data 106682-9330
F:Full speed I:Idle (1)Set the pump speed at aa (2)Set the pump speed at bb (at delivery) (3)Stopper bolt setting
----------
aa=750r/min bb=900r/min
----------
a=8deg+-5deg b=8deg+-5deg c=25deg+-5deg

Stop lever angle

Test data 106682-9330
N:Pump normal S:Stop the pump. (1)No return spring (2)At the hole (right hand side) above R = aa.
----------
aa=27mm
----------
a=26.5deg+-5deg b=53deg+-5deg

Timing setting

Test data 106682-9330
(1)Pump vertical direction (2)Coupling's key groove position at No 1 cylinder's beginning of injection (3)- (4)-
----------

----------
a=(260deg)




Information:

Low power and engine response complaints can be caused by very different reasons and require different repairs, but are often the same complaint from the operator. A discussion with the operator is needed to help correctly diagnose whether to repair for low power or slow response. At times, full engine horsepower is available, but the operator still complains of low power. Repairs for low power would not provide a satisfactory result, and may consume many hours with expensive repairs. The actual complaint may be the engines ability to respond to a changing load or shifting gears.Normally, engine power can be measured to determine if it is within specifications. When troubleshooting a "low horsepower" complaint, if fuel consumption, timing, speeds, and manifold pressure are within specification, do not spend additional time looking for "low engine horsepower". If it is still believed that performance of the vehicle is below that expected, look for horsepower losses in the transmission, differential, clutches, parasitic loads (fan, air compressor, air conditioner, etc.), tires, low fuel density or high temperatures, but not the engine.Owner/Operator Input
The following are some of the questions which should be asked before beginning any diagnosis or repair for an engine performance complaint. There Are No Hard And Fast Answers For These Questions. There are many different truck engine specifications and truck vehicle specifications which will provide acceptable results. There are also a variety of customer expectations which are acceptable. The answers to these questions will give you a better understanding and perspective on the complaint and may identify characteristics which will help pinpoint the cause of the complaint quickly.1. Is there a particular operating condition when the complaint occurs? Low power and response complaints require different repairs. Complaints during shifting will be different from complaints of low power in certain speed ranges or in certain terrains.2. What are the customer's expectations for fuel mileage and power and why does he have those expectations? Comparisons to other trucks on the road often have many unseen variables. If comparison to others is the basis for the complaint, you must insure that the comparison is valid.3. What are the normal upshift and downshift rpm's? If the shift points are too high, find out why. If the driver is operating this way out of habit or because he is taught to drive that way, arrange for him to receive the Caterpillar driver training information. If his shift points are too high because of poor performance, you may be able to correct this in the engine.4. What are the normal routes and loads for the truck? You should be looking for the amount of city versus highway driving, versus mountainous, heavy versus light loads, and cold climate versus warm climate.5. Can the operator detect a misfire? This can lead you to a diagnosis of just one cylinder rather than an entire engine system.6. Does the engine smoke excessively, and if so, under what conditions? Excessive smoke can give indications about engine settings and engine internal conditions.7.
