106676-2840 ZEXEL 9 400 619 434 BOSCH INJECTION-PUMP ASSEMBLY 9400619434 1066762840 me442417

Information Cross number Calibration Data Calibration Data Ex

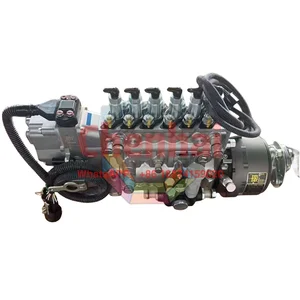

Information injection-pump assembly

BOSCH 9 400 619 434 9400619434

ZEXEL 106676-2840 1066762840

MITSUBISHI ME442417 me442417

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 106676-2840 zexel genuine, new aftermarket engine parts with delivery

Service parts 106676-2840 INJECTION-PUMP ASSEMBLY:

1. _

2. FUEL INJECTION PUMP 106067-6920

3. GOVERNOR 105960-0530

4. SUPPLY PUMP

105237-4790

5. AUTOM. ADVANCE MECHANIS 105691-4210

6. COUPLING PLATE 105663-0800

7. COUPLING PLATE

8. _

9. _

10. NOZZLE AND HOLDER ASSY

105110-8122

11. Nozzle and Holder ME440089

12. Open Pre:MPa(Kqf/cm2) 15.7{160}/21.6{220}

13. NOZZLE-HOLDER 105041-4111

14. NOZZLE 105025-3290

15. NOZZLE SET

Include in #1:

106676-2840 as INJECTION-PUMP ASSEMBLY

Cross reference number

BOSCH 9 400 619 434 9400619434

ZEXEL 106676-2840 1066762840

MITSUBISHI ME442417 me442417

Zexel num

Bosch num

Firm num

Name

106676-2840

9 400 619 434

ME442417 MITSUBISHI

INJECTION-PUMP ASSEMBLY
6D24TL K 14CA INJECTION PUMP ASSY PE6P,6PD PE

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 8-3-600

Overflow valve 131424-8020

Overflow valve opening pressure kPa 255 221 289

Overflow valve opening pressure kgf/cm2 2.6 2.25 2.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

RED4 control unit part number 407915-0 590

RED4 rack sensor specifications mm 19

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-5-3-6- 2-4

Pre-stroke mm 3.9 3.85 3.95

Beginning of injection position
Governor side NO.1

Difference between angles 1
Cal 1-5 deg. 60 59.5 60.5

Difference between angles 2
Cal 1-3 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cyl.1-2 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-4 deg. 300 299.5 300.5

Injection quantity adjustment

Rack position (13.4)

PWM % 63.5

Pump speed r/min 700 700 700

Average injection quantity mm3/st. 178 175 181

Max. variation between cylinders % 0 -2.5 2.5

Basic *

Injection quantity adjustment_02

Rack position (7.3)

PWM % 29+-2.8

Pump speed r/min 225 225 225

Average injection quantity mm3/st. 8.5 7 10

Max. variation between cylinders % 0 -15 15

Test data Ex:

Governor adjustment

(1)Adjusting range (2)Step response time (N): Speed of the pump (L): Load (theta) Advance angle (Srd1) Step response time 1 (Srd2) Step response time 2 1. Adjusting conditions for the variable timer (1)Adjust the clearance between the pickup and the protrusion to L.
----------
L=1.5-0.2mm N2=800r/min C2=(10deg) t1=2.5--sec. t2=2.5--sec.
----------
N1=750++r/min P1=0kPa(0kgf/cm2) P2=392kPa(4kgf/cm2) C1=10+-0.3deg R01=0/4load R02=4/4load

Speed control lever angle

N:Pump normal S:Stop the pump. (1)Rack position = aa (2)Rack position bb
----------
aa=20mm bb=1mm
----------
a=5deg+-5deg b=37deg+-5deg

0000000901

(1)Pump vertical direction (2)Coupling's key groove position at No 1 cylinder's beginning of injection (3)B.T.D.C.: aa (4)-
----------
aa=10deg
----------
a=(2deg)

Stop lever angle

(PWM) Pulse width modulation (%) (R) Rack position (mm) Rack sensor output characteristics 1. Rack limit adjustment (1)Measure the rack position R2 for PWM a2%. (2)Confirm that it is within the range R2 = 15+-1 mm. (3)Measure the rack position R1 at PWM a %. (4)Confirm that it is within the range R2 - R1 = 10+-0.1 mm. 2. Check the limp home operation. (1)Move the switch box's limp home switch to the limp home side. (2)Confirm rack position L1 (mm ) and L2 (mm) for PWM in the above table. 3. Check the pull down operation. (1)Confirm that the rack position is 19 mm at PWM B%. (2)In the conditions described in the above table, move the switch box's pull down switch to the pull down side and confirm that the rack position momentarily becomes 1 mm or less.
----------
a1=16.25% a2=72.5% L1=1--mm L2=19++mm A=5 % B=95%
----------
