106676-2451 ZEXEL 9 400 617 448 BOSCH INJECTION-PUMP ASSEMBLY 9400617448 1066762451 me159026

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH 9 400 617 448 9400617448

ZEXEL 106676-2451 1066762451

MITSUBISHI ME159026 me159026

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 106676-2451 zexel genuine, new aftermarket engine parts with delivery

Service parts 106676-2451 INJECTION-PUMP ASSEMBLY:

1. _

2. FUEL INJECTION PUMP 106067-6540

3. GOVERNOR 105407-7640

4. SUPPLY PUMP 105207-1200

5. AUTOM. ADVANCE MECHANIS 105681-2300

6. COUPLING PLATE 105663-0550

7. COUPLING PLATE

8. _

9. _

10. NOZZLE AND HOLDER ASSY 105100-7110

11. Nozzle and Holder ME056473

12. Open Pre:MPa(Kqf/cm2) 17.7{180}/21.6{220}

13. NOZZLE-HOLDER 105031-4530

14. NOZZLE

105015-6150

15. NOZZLE SET

Include in #1:

106676-2451 as INJECTION-PUMP ASSEMBLY

Cross reference number

BOSCH 9 400 617 448 9400617448

ZEXEL 106676-2451 1066762451

MITSUBISHI ME159026 me159026

Zexel num

Bosch num

Firm num

Name

106676-2451

9 400 617 448

ME159026 MITSUBISHI

INJECTION-PUMP ASSEMBLY
6D24T K 14CA INJECTION PUMP ASSY PE6P,6PD PE

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 8-3-600

Overflow valve 131424-4620

Overflow valve opening pressure kPa 255 255 255

Overflow valve opening pressure kgf/cm2 2.6 2.6 2.6

Tester oil delivery pressure kPa 255 255 255

Tester oil delivery pressure kgf/cm2 2.6 2.6 2.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-5-3-6- 2-4

Pre-stroke mm 4.8 4.75 4.85

Beginning of injection position
Governor side NO.1

Difference between angles 1
Cal 1-5 deg. 60 59.5 60.5

Difference between angles 2
Cal 1-3 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cyl.1-2 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-4 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point A

Rack position 10.5

Pump speed r/min 900 900 900

Average injection quantity mm3/st. 134 131 137

Max. variation between cylinders % 0 -3 3

Basic *

Fixing the lever *

Injection quantity adjustment_02

Adjusting point B

Rack position 6.5+-0.5

Pump speed r/min 425 425 425

Average injection quantity mm3/st. 12.5 9.9 15.1

Max. variation between cylinders % 0 -15 15

Fixing the rack *

Injection quantity adjustment_03

Adjusting point C

Rack position 10.7++

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 145 145 155

Fixing the lever *

Rack limit *

Timer adjustment

Pump speed r/min 0

Advance angle deg. 2.5 2 3

Timer adjustment_02

Pump speed r/min 300

Advance angle deg. 2.5 2 3

Remarks
Start

Timer adjustment_03

Pump speed r/min -

Advance angle deg. 0 0 0

Remarks
Measure the actual speed, stop

Test data Ex:

Governor adjustment

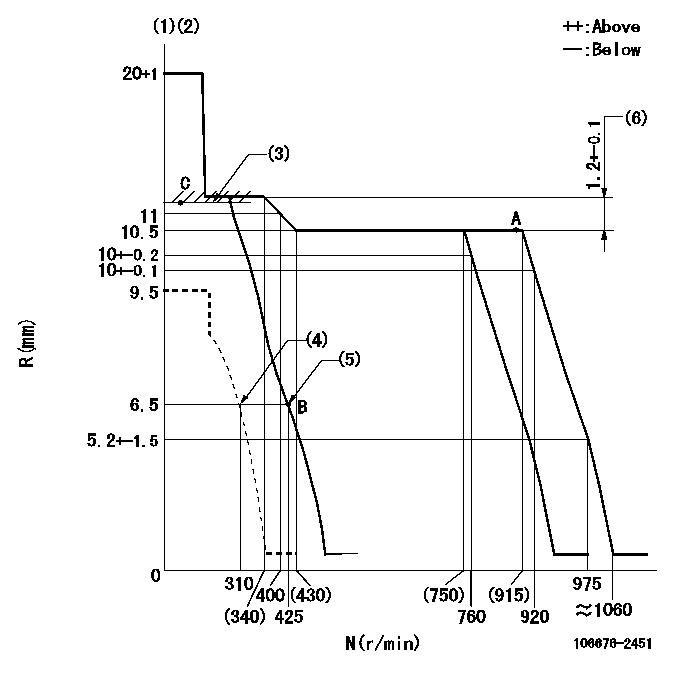

N:Pump speed R:Rack position (mm) (1)Notch fixed: K (2)Tolerance for racks not indicated: +-0.05mm. (3)RACK LIMIT (4)Set idle sub-spring (5)Main spring setting (6)Rack difference between N = N1 and N = N2
----------
K=8 N1=900r/min N2=300r/min
----------

Speed control lever angle

F:Full speed I:Idle (1)Stopper bolt setting (2)Set the pump speed at aa (3)Set the pump speed at bb.
----------
aa=760r/min bb=920r/min
----------
a=(1deg)+-5deg b=(19deg)+-5deg c=(6deg)+-5deg

Stop lever angle

N:Pump normal S:Stop the pump. (1)Normal
----------

----------
a=43.5deg+-5deg b=53deg+-5deg

Timing setting

(1)Pump vertical direction (2)Coupling's key groove position at No 1 cylinder's beginning of injection (3)B.T.D.C.: aa (4)-
----------
aa=12deg
----------
a=(6deg)
