106676-2191 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1066762191

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

ZEXEL 106676-2191 1066762191

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 106676-2191 zexel genuine, new aftermarket engine parts with delivery

Cross reference number

ZEXEL 106676-2191 1066762191

Zexel num

Bosch num

Firm num

Name

106676-2191

INJECTION-PUMP ASSEMBLY

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 8-3-600

Overflow valve 131424-4620

Overflow valve opening pressure kPa 255 221 289

Overflow valve opening pressure kgf/cm2 2.6 2.25 2.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-5-3-6- 2-4

Pre-stroke mm 4.8 4.75 4.85

Beginning of injection position
Governor side NO.1

Difference between angles 1
Cal 1-5 deg. 60 59.5 60.5

Difference between angles 2
Cal 1-3 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cyl.1-2 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-4 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point A

Rack position 8.9

Pump speed r/min 1000 1000 1000

Average injection quantity mm3/st. 123 120 126

Max. variation between cylinders % 0 -3 3

Basic *

Fixing the lever *

Boost pressure kPa 30.7 30.7

Boost pressure mmHg 230 230

Injection quantity adjustment_02

Adjusting point B

Rack position 4.4+-0.5

Pump speed r/min 425 425 425

Average injection quantity mm3/st. 9.5 6.9 12.1

Max. variation between cylinders % 0 -15 15

Fixing the rack *

Boost pressure kPa 0 0 0

Boost pressure mmHg 0 0 0

Injection quantity adjustment_03

Adjusting point D

Rack position -

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 145 125 165

Fixing the lever *

Boost pressure kPa 0 0 0

Boost pressure mmHg 0 0 0

Rack limit *

Boost compensator adjustment

Pump speed r/min 700 700 700

Rack position R1-1.25

Boost pressure kPa 4 2.7 5.3

Boost pressure mmHg 30 20 40

Boost compensator adjustment_02

Pump speed r/min 700 700 700

Rack position R1(8.9)

Boost pressure kPa 17.3 10.6 24

Boost pressure mmHg 130 80 180

Timer adjustment

Pump speed r/min 0

Advance angle deg. 2.5 2 3

Timer adjustment_02

Pump speed r/min 300

Advance angle deg. 2.5 2 3

Remarks
Start

Timer adjustment_03

Pump speed r/min -

Advance angle deg. 0 0 0

Remarks
Measure the actual speed, stop

Test data Ex:

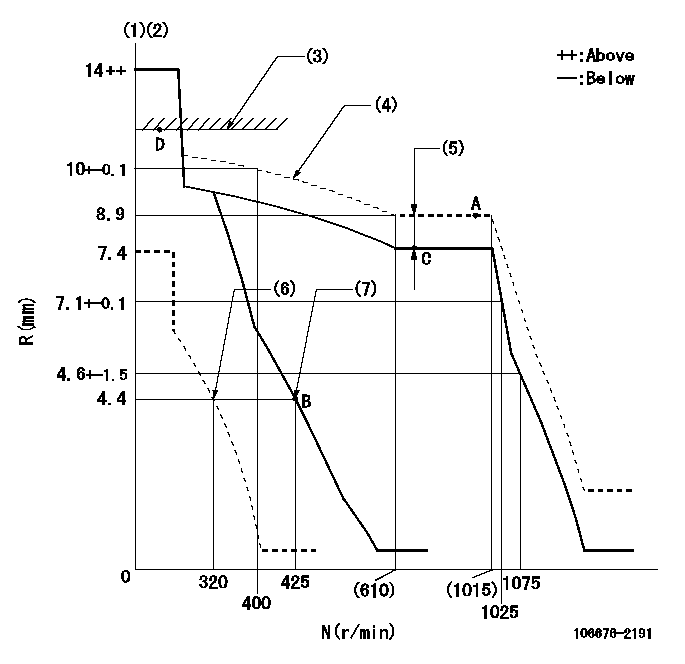

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Notch fixed: K (2)Tolerance for racks not indicated: +-0.05mm. (3)RACK LIMIT (4)The torque control spring must does not have a set force. (5)Boost compensator stroke: BCL (6)Set idle sub-spring (7)Main spring setting
----------
K=8 BCL=1.25+-0.1mm
----------

Speed control lever angle

F:Full speed I:Idle (1)Stopper bolt setting
----------

----------
a=(21deg)+-5deg b=(0deg)+-5deg

Stop lever angle

N:Pump normal S:Stop the pump. (1)Pump speed aa and rack position bb (to be sealed at delivery) (2)Stopper bolt setting (3)Normal
----------
aa=0r/min bb=1-0.5mm
----------
a=35deg+-5deg b=70deg+5deg

Timing setting

(1)Pump vertical direction (2)Coupling's key groove position at No 1 cylinder's beginning of injection (3)B.T.D.C.: aa (4)-
----------
aa=12deg
----------
a=(6deg)
