106676-2041 ZEXEL 9 400 617 425 BOSCH INJECTION-PUMP ASSEMBLY 9400617425 1066762041 me158512

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH 9 400 617 425 9400617425

ZEXEL 106676-2041 1066762041

MITSUBISHI ME158512 me158512

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 106676-2041 zexel genuine, new aftermarket engine parts with delivery

Cross reference number

BOSCH 9 400 617 425 9400617425

ZEXEL 106676-2041 1066762041

MITSUBISHI ME158512 me158512

Zexel num

Bosch num

Firm num

Name

106676-2041

9 400 617 425

ME158512 MITSUBISHI

INJECTION-PUMP ASSEMBLY
6D24TC K

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 8-3-600

Overflow valve 131424-4620

Overflow valve opening pressure kPa 255 221 289

Overflow valve opening pressure kgf/cm2 2.6 2.25 2.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-5-3-6- 2-4

Pre-stroke mm 4.8 4.75 4.85

Beginning of injection position
Governor side NO.1

Difference between angles 1
Cal 1-5 deg. 60 59.5 60.5

Difference between angles 2
Cal 1-3 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cyl.1-2 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-4 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point A

Rack position 9.7

Pump speed r/min 1100 1100 1100

Average injection quantity mm3/st. 140.5 137.5 143.5

Max. variation between cylinders % 0 -3 3

Basic *

Fixing the lever *

Injection quantity adjustment_02

Adjusting point B

Rack position 6+-0.5

Pump speed r/min 350 350 350

Average injection quantity mm3/st. 8.5 5.9 11.1

Max. variation between cylinders % 0 -15 15

Fixing the rack *

Injection quantity adjustment_03

Adjusting point C

Rack position -

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 125 105 145

Fixing the lever *

Rack limit *

Timer adjustment

Pump speed r/min 950--

Advance angle deg. 0 0 0

Remarks
Start

Timer adjustment_02

Pump speed r/min 900

Advance angle deg. 0.5

Timer adjustment_03

Pump speed r/min 1100

Advance angle deg. 2 1.5 2.5

Remarks
Finish

Test data Ex:

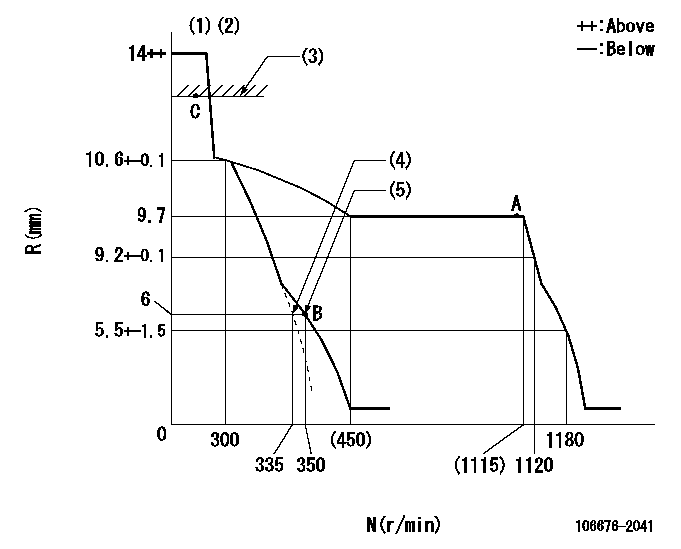

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Notch fixed: K (2)Tolerance for racks not indicated: +-0.05mm. (3)RACK LIMIT (4)Main spring setting (5)Set idle sub-spring
----------
K=8
----------

Speed control lever angle

F:Full speed I:Idle (1)Stopper bolt setting
----------

----------
a=(25deg)+-5deg b=(4deg)+-5deg

Stop lever angle

N:Pump normal S:Stop the pump. (1)Use the hole at R = aa (2)Normal
----------
aa=22mm
----------
a=43.5deg+-5deg b=53deg+-5deg

Timing setting

(1)Pump vertical direction (2)Coupling's key groove position at No 1 cylinder's beginning of injection (3)B.T.D.C.: aa (4)-
----------
aa=13deg
----------
a=(7deg)
