106675-4570 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1066754570

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

ZEXEL 106675-4570 1066754570

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 106675-4570 zexel genuine, new aftermarket engine parts with delivery

Cross reference number

ZEXEL 106675-4570 1066754570

Zexel num

Bosch num

Firm num

Name

106675-4570

INJECTION-PUMP ASSEMBLY

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 8-3-600

Overflow valve 131424-3420

Overflow valve opening pressure kPa 255 221 289

Overflow valve opening pressure kgf/cm2 2.6 2.25 2.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-5-3-6- 2-4

Pre-stroke mm 3.9 3.85 3.95

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-5 deg. 60 59.5 60.5

Difference between angles 2
Cal 1-3 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cyl.1-2 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-4 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point A

Rack position 10.4

Pump speed r/min 1000 1000 1000

Average injection quantity mm3/st. 151 149 153

Max. variation between cylinders % 0 -3 3

Basic *

Fixing the lever *

Boost pressure kPa 54.7 54.7

Boost pressure mmHg 410 410

Injection quantity adjustment_02

Adjusting point C

Rack position 7.2+-0.5

Pump speed r/min 300 300 300

Average injection quantity mm3/st. 11 9.5 12.5

Max. variation between cylinders % 0 -15 15

Fixing the rack *

Boost pressure kPa 0 0 0

Boost pressure mmHg 0 0 0

Injection quantity adjustment_03

Adjusting point E

Rack position -

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 165 155 175

Fixing the lever *

Boost pressure kPa 0 0 0

Boost pressure mmHg 0 0 0

Rack limit *

Boost compensator adjustment

Pump speed r/min 600 600 600

Rack position R1-0.95

Boost pressure kPa 21.3 18.6 24

Boost pressure mmHg 160 140 180

Boost compensator adjustment_02

Pump speed r/min 600 600 600

Rack position R1(10.4)

Boost pressure kPa 41.3 34.6 48

Boost pressure mmHg 310 260 360

Test data Ex:

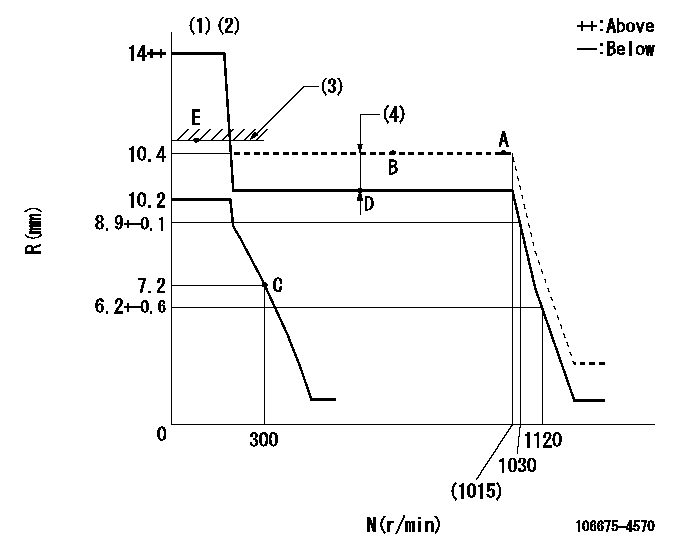

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Target notch: K (2)Tolerance for racks not indicated: +-0.05mm. (3)RACK LIMIT (4)Boost compensator stroke: BCL
----------
K=17 BCL=0.95+-0.1mm
----------

Speed control lever angle

F:Full speed I:Idle S:Stop
----------

----------
a=50deg+-5deg b=25deg+-5deg c=2deg+-3deg

Timing setting

(1)Pump vertical direction (2)Coupling's key groove position at No 1 cylinder's beginning of injection (3)- (4)-
----------

----------
a=(10deg)
