106673-7780 ZEXEL 9 400 617 355 BOSCH INJECTION-PUMP ASSEMBLY 9400617355 1066737780 me152450

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH 9 400 617 355 9400617355

ZEXEL 106673-7780 1066737780

MITSUBISHI ME152450 me152450

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 106673-7780 zexel genuine, new aftermarket engine parts with delivery

Cross reference number

BOSCH 9 400 617 355 9400617355

ZEXEL 106673-7780 1066737780

MITSUBISHI ME152450 me152450

Zexel num

Bosch num

Firm num

Name

106673-7780

9 400 617 355

ME152450 MITSUBISHI

INJECTION-PUMP ASSEMBLY
6D24T1 K 14CA INJECTION PUMP ASSY PE6P,6PD PE

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8250

Bosch type code 1 688 901 101

Nozzle 105780-0120

Bosch type code 1 688 901 990

Nozzle holder 105780-2090

Opening pressure MPa 20.7

Opening pressure kgf/cm2 211

Injection pipe
Outer diameter - inner diameter - length (mm) mm 8-3-600

Overflow valve 131425-0220

Overflow valve opening pressure kPa 157 123 191

Overflow valve opening pressure kgf/cm2 1.6 1.25 1.95

Tester oil delivery pressure kPa 255 255 255

Tester oil delivery pressure kgf/cm2 2.6 2.6 2.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-5-3-6- 2-4

Pre-stroke mm 3.9 3.85 3.95

Beginning of injection position
Governor side NO.1

Difference between angles 1
Cal 1-5 deg. 60 59.5 60.5

Difference between angles 2
Cal 1-3 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cyl.1-2 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-4 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point -

Rack position 12.7

Pump speed r/min 700 700 700

Each cylinder's injection qty mm3/st. 147 143.3 150.7

Basic *

Fixing the rack *

Standard for adjustment of the maximum variation between cylinders *

Injection quantity adjustment_02

Adjusting point Z

Rack position 8+-0.5

Pump speed r/min 410 410 410

Each cylinder's injection qty mm3/st. 21 17.8 24.2

Fixing the rack *

Standard for adjustment of the maximum variation between cylinders *

Injection quantity adjustment_03

Adjusting point A

Rack position R1(12.7)

Pump speed r/min 700 700 700

Average injection quantity mm3/st. 147 146 148

Basic *

Fixing the lever *

Boost pressure kPa 24 24

Boost pressure mmHg 180 180

Injection quantity adjustment_04

Adjusting point B

Rack position R1+1.35

Pump speed r/min 1100 1100 1100

Average injection quantity mm3/st. 146 142 150

Fixing the lever *

Boost pressure kPa 24 24

Boost pressure mmHg 180 180

Injection quantity adjustment_05

Adjusting point D

Rack position (R1-0.75 )

Pump speed r/min 500 500 500

Average injection quantity mm3/st. 144.5 138.5 150.5

Fixing the lever *

Boost pressure kPa 24 24

Boost pressure mmHg 180 180

Boost compensator adjustment

Pump speed r/min 300 300 300

Rack position R2-1.65

Boost pressure kPa 4 2.7 5.3

Boost pressure mmHg 30 20 40

Boost compensator adjustment_02

Pump speed r/min 300 300 300

Rack position R2(R1-1. 1)

Boost pressure kPa 10 10 10

Boost pressure mmHg 80 80 80

Timer adjustment

Pump speed r/min 750--

Advance angle deg. 0 0 0

Remarks
Start

Timer adjustment_02

Pump speed r/min 700

Advance angle deg. 0.5

Timer adjustment_03

Pump speed r/min 1100

Advance angle deg. 2 1.5 2.5

Remarks
Finish

Test data Ex:

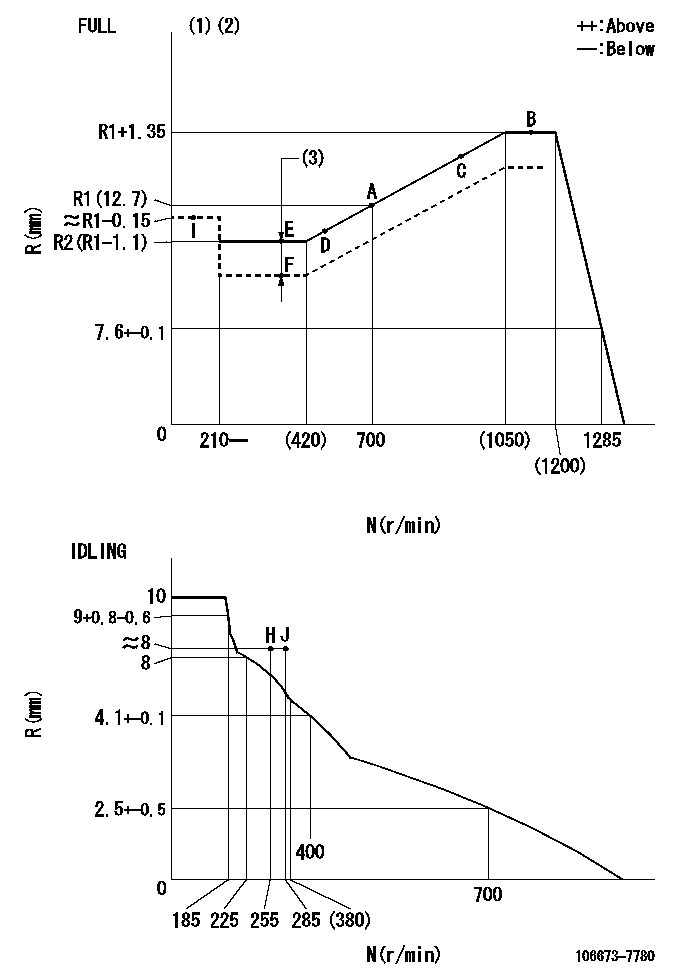

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Torque cam stamping: T1 (2)Tolerance for racks not indicated: +-0.05mm. (3)Boost compensator stroke: BCL
----------
T1=AE16 BCL=1.65+-0.1mm
----------

Speed control lever angle

F:Full speed I:Idle (1)Use the pin at R = aa (2)Stopper bolt set position 'H' (3)Viewed from feed pump side.
----------
aa=45mm
----------
a=30deg+-5deg b=39deg+-3deg

Stop lever angle

N:Pump normal S:Stop the pump. (1)At pump speed aa and rack position bb, set the stopper bolt. (Confirm non-injection.) (2)Normal engine position (Rack position corresponding to cc) (3)Use the hole above R = dd
----------
aa=1100r/min bb=3.5+-0.3mm cc=18mm dd=33.5mm
----------
a=40deg+-5deg b=25.5deg+-5deg c=(31deg)+-5deg

0000001501 MICRO SWITCH

Adjustment of the micro-switch Adjust the bolt to obtain the following lever position when the micro-switch is ON. (1)Speed N1 (2)Rack position Ra
----------
N1=325r/min Ra=7.6+-0.1mm
----------

Timing setting

(1)Pump vertical direction (2)Coupling's key groove position at No 1 cylinder's beginning of injection (3)B.T.D.C.: aa (4)-
----------
aa=11deg
----------
a=(8deg)
