106673-5040 ZEXEL 9 400 613 388 BOSCH INJECTION-PUMP ASSEMBLY 9400613388 1066735040

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH 9 400 613 388 9400613388

ZEXEL 106673-5040 1066735040

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 106673-5040 zexel genuine, new aftermarket engine parts with delivery

Service parts 106673-5040 INJECTION-PUMP ASSEMBLY:

1. _

2. FUEL INJECTION PUMP 106067-6840

3. GOVERNOR 105407-8420

4. SUPPLY PUMP 105237-4210

5. AUTOM. ADVANCE MECHANIS 105681-2830

6. COUPLING PLATE 105663-0650

7. COUPLING PLATE

8. _

9. _

10. NOZZLE AND HOLDER ASSY 105110-6160

11. Nozzle and Holder 16600NB001

12. Open Pre:MPa(Kqf/cm2) 22.6{230}

13. NOZZLE-HOLDER 105041-4210

14. NOZZLE 105025-4110

15. NOZZLE SET

Include in #1:

106673-5040 as INJECTION-PUMP ASSEMBLY

Cross reference number

BOSCH 9 400 613 388 9400613388

ZEXEL 106673-5040 1066735040

Zexel num

Bosch num

Firm num

Name

106673-5040
106673-5041

9 400 613 388

INJECTION-PUMP ASSEMBLY
* K 14CA PE6P,6PD PE

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 8-3-600

Overflow valve 134424-4120

Overflow valve opening pressure kPa 255 221 289

Overflow valve opening pressure kgf/cm2 2.6 2.25 2.95

Tester oil delivery pressure kPa 255 255 255

Tester oil delivery pressure kgf/cm2 2.6 2.6 2.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-4-2-6- 3-5

Pre-stroke mm 4.2 4.15 4.25

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-4 deg. 60 59.5 60.5

Difference between angles 2
Cyl.1-2 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cal 1-3 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-5 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point A

Rack position 13.5

Pump speed r/min 700 700 700

Average injection quantity mm3/st. 212 210 214

Max. variation between cylinders % 0 -4 4

Basic *

Fixing the lever *

Boost pressure kPa 140 140

Boost pressure mmHg 1050 1050

Injection quantity adjustment_02

Adjusting point C

Rack position 7.8+-0.5

Pump speed r/min 375 375 375

Average injection quantity mm3/st. 12 11 13

Max. variation between cylinders % 0 -10 10

Fixing the rack *

Boost pressure kPa 0 0 0

Boost pressure mmHg 0 0 0

Boost compensator adjustment

Pump speed r/min 500 500 500

Rack position R1-3.2

Boost pressure kPa 16 13.3 18.7

Boost pressure mmHg 120 100 140

Boost compensator adjustment_02

Pump speed r/min 500 500 500

Rack position R1(13.5)

Boost pressure kPa 127 127 127

Boost pressure mmHg 950 950 950

Timer adjustment

Pump speed r/min 700-50

Advance angle deg. 0.3

Timer adjustment_02

Pump speed r/min 1000-50

Advance angle deg. 1 0.5 1.5

Timer adjustment_03

Pump speed r/min -

Advance angle deg. 2 2 2

Remarks
Measure the actual speed, stop

Test data Ex:

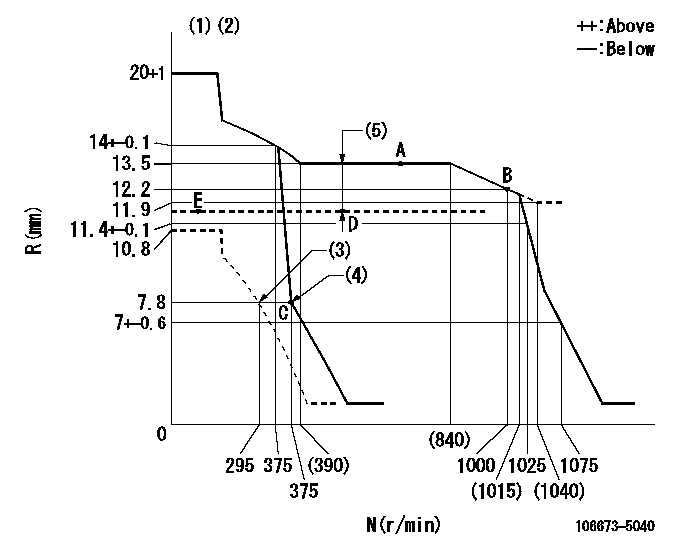

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Target notch: K (2)Tolerance for racks not indicated: +-0.05mm. (3)Set idle sub-spring (4)Main spring setting (5)Boost compensator stroke: BCL
----------
K=14 BCL=3.2+-0.1mm
----------

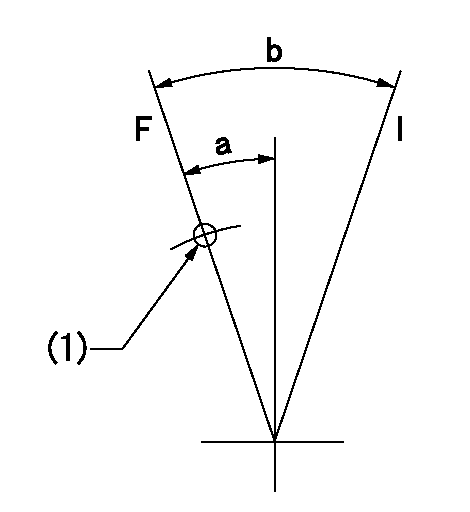

Speed control lever angle

F:Full speed I:Idle (1)Use the hole at R = aa
----------
aa=100mm
----------
a=11deg+-5deg b=25deg+-5deg

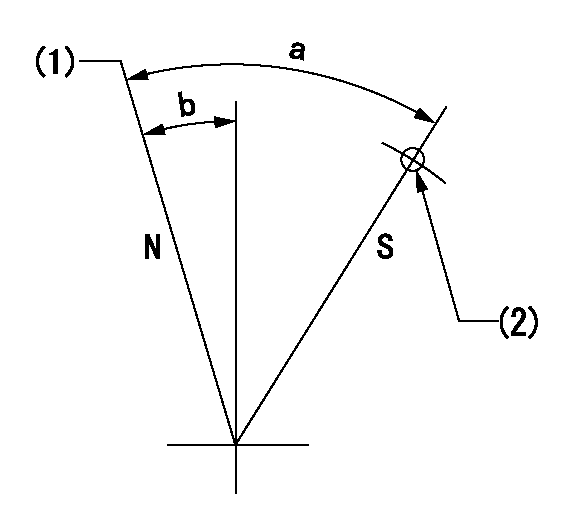

Stop lever angle

N:Pump normal S:Stop the pump. (1)Normal (2)Use the hole at R = aa
----------
aa=55mm
----------
a=53deg+-5deg b=26.5deg+-5deg

Timing setting

(1)Pump vertical direction (2)Coupling's key groove position at No 1 cylinder's beginning of injection (3)- (4)-
----------

----------
a=(30deg)

Information:

Start By:a. remove oil pumpb. remove oil pan plate 1. Turn the crankshaft until two pistons are at the bottom center. Remove connecting rod caps (1) from the two connecting rods. Remove the lower half of the rod bearing from the rod bearing cap.2. Push the connecting rods away from the crankshaft. Remove the upper half of the rod bearing from the connecting rod. Install the connecting rod bearings dry when the clearance checks are made. Put clean engine oil on the connecting rod bearings for final assembly.3. Install the upper half of the rod bearing in the connecting rod.4. Install the lower half of the rod bearing in the connecting rod cap. Be sure the tabs in the back of the connecting rod bearings are in the tab grooves of the connecting rod and cap. 5. Use Plastigage (A) to check the connecting rod bearing clearance.6. Put Plastigage (A) on the connecting rod bearing.7. Put 2P2506 Thread Lubricant on the threads of the rod bolts and seat surfaces of the nuts.
When connecting rod caps are installed, make sure the number on the side of the cap is next to and respective with the number on the side of the connecting rod.
Do not turn the crankshaft when Plastigage (A) is in position.
Do not use an impact wrench to tighten the nuts the additional 90°.
8. Install connecting rod cap (1). Install the nuts. Tighten the nuts to a torque of 40 4 N m (30 3 lb ft). Put a mark on each nut and the end of each bolt. Tighten the nuts 90° more. Remove the connecting rod caps. Remove Plastigage (A) and measure the width of the Plastigage. The connecting rod clearance must be 0.076 to 0.168 mm (.0030 to .0066 in) for new bearings. The maximum clearance with used bearings is 0.25 mm (.010 in).9. Install the connecting rod caps and tighten the nuts as in Step 8.10. Do Steps 1 through 9 for the remainder of the connecting rod bearings.End By:a. install oil pan plateb. install oil pump
