106672-9720 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1066729720

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

ZEXEL 106672-9720 1066729720

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 106672-9720 zexel genuine, new aftermarket engine parts with delivery

Service parts 106672-9720 INJECTION-PUMP ASSEMBLY:

1. _

2. FUEL INJECTION PUMP 106061-5390

3. GOVERNOR 105407-2470

4. SUPPLY PUMP 105217-1390

5. AUTOM. ADVANCE MECHANIS

6. COUPLING PLATE

7. COUPLING PLATE

8. _

9. _

10. NOZZLE AND HOLDER ASSY 105101-4750

11. Nozzle and Holder

12. Open Pre:MPa(Kqf/cm2) 22.6{230}

13. NOZZLE-HOLDER 105031-4220

14. NOZZLE

105015-3250

15. NOZZLE SET

Include in #1:

106672-9720 as INJECTION-PUMP ASSEMBLY

Cross reference number

ZEXEL 106672-9720 1066729720

Zexel num

Bosch num

Firm num

Name

106672-9720

INJECTION-PUMP ASSEMBLY
14CA PE6P,6PD PE

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 8-3-600

Overflow valve 132424-0620

Overflow valve opening pressure kPa 157 123 191

Overflow valve opening pressure kgf/cm2 1.6 1.25 1.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-4-2-6- 3-5

Pre-stroke mm 3.3 3.25 3.35

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-4 deg. 60 59.5 60.5

Difference between angles 2
Cyl.1-2 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cal 1-3 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-5 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point A

Rack position 10.5

Pump speed r/min 900 900 900

Each cylinder's injection qty mm3/st. 151.2 148.6 153.8

Basic *

Fixing the rack *

Injection quantity adjustment_02

Adjusting point -

Rack position 6.3+-0.5

Pump speed r/min 250 250 250

Each cylinder's injection qty mm3/st. 15 13.5 16.5

Fixing the rack *

Remarks
Adjust only variation between cylinders; adjust governor according to governor specifications.

Test data Ex:

Governor adjustment

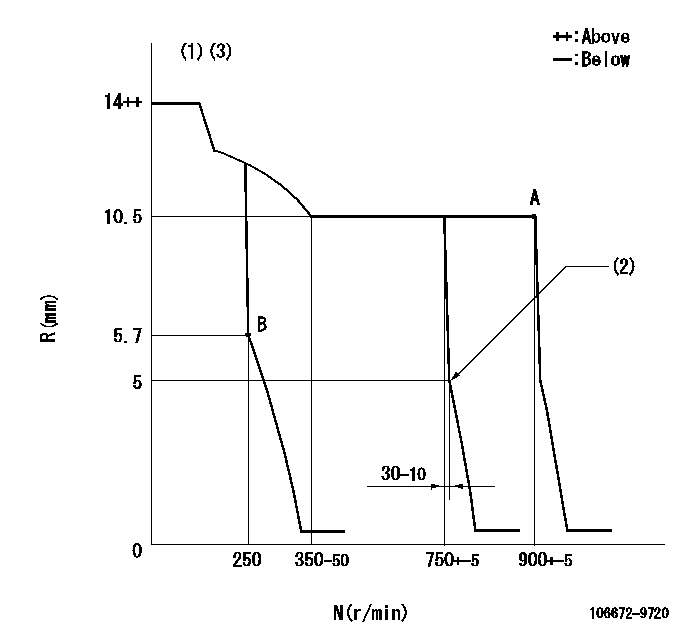

N:Pump speed R:Rack position (mm) (1)Target notch: K (2)Idle sub spring setting: L1. (3)Confirm that the rack is pulled back to R = R1 or less at solenoid operation (N = 0).
----------
K=15 L1=5-0.5mm R1=5.2mm
----------

Speed control lever angle

F:Full speed I:Idle (1)Set the pump speed at aa (2)Set the pump speed at bb. (3)Stopper bolt setting
----------
aa=900r/min bb=750r/min
----------
a=19deg+-5deg b=28deg+-5deg c=7deg+-5deg

Stop lever angle

N:Pump normal S:Stop the pump.
----------

----------
a=20deg+-5deg b=53deg+-5deg

Timing setting

(1)Pump vertical direction (2)Position of camshaft's key groove at No 1 cylinder's beginning of injection (3)- (4)-
----------

----------
a=(50deg)
