106672-4820 ZEXEL 9 400 617 136 BOSCH INJECTION-PUMP ASSEMBLY 9400617136 1066724820 1212606200

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH 9 400 617 136 9400617136

ZEXEL 106672-4820 1066724820

KUBOTA 1212606200 1212606200

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 106672-4820 zexel genuine, new aftermarket engine parts with delivery

Cross reference number

BOSCH 9 400 617 136 9400617136

ZEXEL 106672-4820 1066724820

KUBOTA 1212606200 1212606200

Zexel num

Bosch num

Firm num

Name

106672-4820

9 400 617 136

1212606200 KUBOTA

INJECTION-PUMP ASSEMBLY
LH50 * K

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 8-3-600

Overflow valve 132424-0620

Overflow valve opening pressure kPa 157 123 191

Overflow valve opening pressure kgf/cm2 1.6 1.25 1.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-5-3-6- 2-4

Pre-stroke mm 3 2.95 3.05

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-5 deg. 60 59.5 60.5

Difference between angles 2
Cal 1-3 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cyl.1-2 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-4 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point A

Rack position R(11.3)

Pump speed r/min 750 750 750

Each cylinder's injection qty mm3/st. 180 175.5 184.5

Basic *

Fixing the lever *

Injection quantity adjustment_02

Adjusting point B

Rack position 6.3+-0.5

Pump speed r/min 300 300 300

Each cylinder's injection qty mm3/st. 27 24 30

Fixing the lever *

Test data Ex:

Governor adjustment

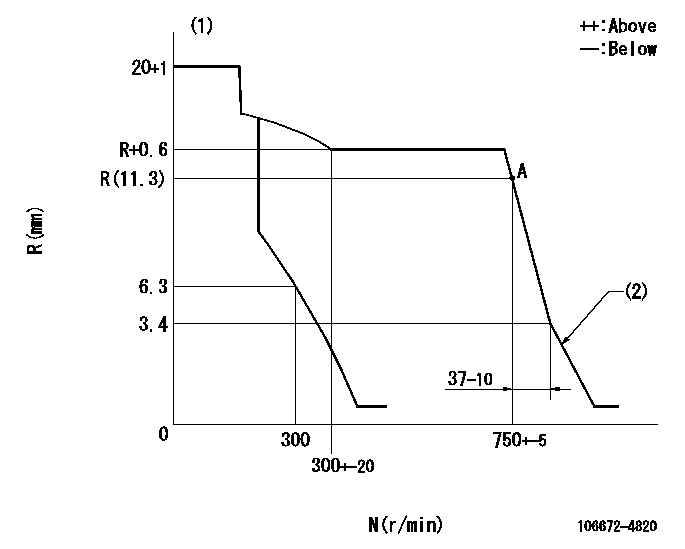

N:Pump speed R:Rack position (mm) (1)Target notch: K (2)Idle sub spring setting: L1.
----------
K=5 L1=3.4-0.5mm
----------

Speed control lever angle

F:Full speed I:Idle (1)Stopper bolt setting
----------

----------
a=6deg+-5deg b=18deg+-5deg

Stop lever angle

N:Pump normal S:Stop the pump.
----------

----------
a=0deg+-5deg b=53deg+-5deg
