106671-9450 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1066719450 3626550150

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

ZEXEL 106671-9450 1066719450

MITSUBISHI-HEAV 3626550150 3626550150

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 106671-9450 zexel genuine, new aftermarket engine parts with delivery

Service parts 106671-9450 INJECTION-PUMP ASSEMBLY:

1. _

2. FUEL INJECTION PUMP 106067-0870

3. GOVERNOR 105447-1780

4. SUPPLY PUMP 105217-1331

5. AUTOM. ADVANCE MECHANIS 105636-1920

6. COUPLING PLATE 105662-0710

7. COUPLING PLATE

8. _

9. _

10. NOZZLE AND HOLDER ASSY 105101-5481

11. Nozzle and Holder 36261-33010

12. Open Pre:MPa(Kqf/cm2) 21.6{220}

13. NOZZLE-HOLDER 105030-4051

14. NOZZLE 105015-7160

15. NOZZLE SET

Include in #1:

106671-9450 as INJECTION-PUMP ASSEMBLY

Cross reference number

ZEXEL 106671-9450 1066719450

MITSUBISHI-HEAV 3626550150 3626550150

Zexel num

Bosch num

Firm num

Name

106671-9450
106671-9451

3626550150 MITSUBISHI-HEAV

INJECTION-PUMP ASSEMBLY
S6B-TA * K

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 8-3-600

Overflow valve 131424-3720

Overflow valve opening pressure kPa 255 221 289

Overflow valve opening pressure kgf/cm2 2.6 2.25 2.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-5-3-6- 2-4

Pre-stroke mm 3.7 3.65 3.75

Beginning of injection position
Governor side NO.1

Difference between angles 1
Cal 1-5 deg. 60 59.5 60.5

Difference between angles 2
Cal 1-3 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cyl.1-2 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-4 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point A

Rack position 14.5

Pump speed r/min 900 900 900

Average injection quantity mm3/st. 201 194 208

Max. variation between cylinders % 0 -3 3

Basic *

Fixing the rack *

Injection quantity adjustment_02

Adjusting point B

Rack position 6.1+-0.5

Pump speed r/min 300 300 300

Average injection quantity mm3/st. 18 15.5 20.5

Max. variation between cylinders % 0 -10 10

Fixing the rack *

Injection quantity adjustment_03

Adjusting point D

Rack position -

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 225 225 235

Fixing the lever *

Rack limit *

Timer adjustment

Pump speed r/min -

Advance angle deg. 0 0 0

Remarks
Measure speed (beginning of operation).

Timer adjustment_02

Pump speed r/min -

Advance angle deg. 4 4 4

Remarks
Measure the actual speed, stop

Test data Ex:

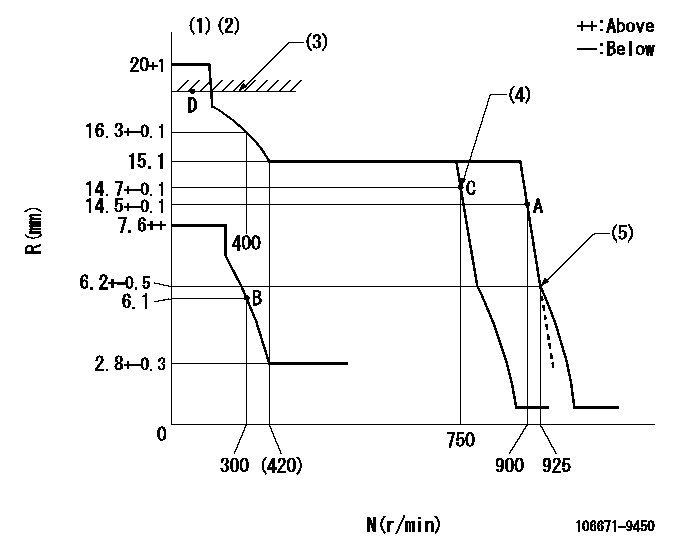

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Target notch: K (2)Tolerance for racks not indicated: +-0.05mm. (3)RACK LIMIT (4)Set at delivery (5)Idle sub spring setting: L1.
----------
K=7 L1=6.2-0.5mm
----------

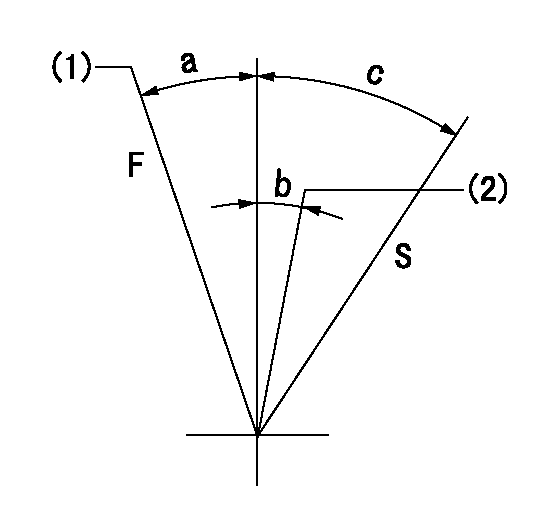

Speed control lever angle

F:Full speed S:Stop (1)Pump speed = aa (2)Pump speed = bb (at delivery)
----------
aa=900r/min bb=750r/min
----------
a=5deg+-5deg b=3deg+-5deg c=32deg+-3deg

0000000901

F:Full load I:Idle S:Stop (1)Use the hole at R = aa
----------
aa=25mm
----------
a=27deg+-5deg b=33deg+-5deg c=53deg+-5deg

Timing setting

(1)Pump vertical direction (2)Coupling's key groove position at No 1 cylinder's beginning of injection (3)- (4)-
----------

----------
a=(100deg)
