106671-9131 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1066719131

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

ZEXEL 106671-9131 1066719131

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 106671-9131 zexel genuine, new aftermarket engine parts with delivery

Cross reference number

ZEXEL 106671-9131 1066719131

Zexel num

Bosch num

Firm num

Name

106671-9131
106671-9133

DPICO

INJECTION-PUMP ASSEMBLY
Q * Q

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 8-3-600

Overflow valve 131424-4420

Overflow valve opening pressure kPa 157 123 191

Overflow valve opening pressure kgf/cm2 1.6 1.25 1.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-5-3-6- 2-4

Pre-stroke mm 4.4 4.35 4.45

Beginning of injection position
Governor side NO.1

Difference between angles 1
Cal 1-5 deg. 60 59.5 60.5

Difference between angles 2
Cal 1-3 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cyl.1-2 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-4 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point -

Rack position 12.2

Pump speed r/min 700 700 700

Average injection quantity mm3/st. 156.5 152.6 160.4

Basic *

Fixing the rack *

Standard for adjustment of the maximum variation between cylinders *

Injection quantity adjustment_02

Adjusting point C

Rack position 7.1+-0.5

Pump speed r/min 225 225 225

Each cylinder's injection qty mm3/st. 30 25.6 34.4

Fixing the rack *

Standard for adjustment of the maximum variation between cylinders *

Injection quantity adjustment_03

Adjusting point A

Rack position R1(12.2)

Pump speed r/min 700 700 700

Average injection quantity mm3/st. 156.5 155.5 157.5

Basic *

Fixing the lever *

Boost pressure kPa 89.3 89.3

Boost pressure mmHg 670 670

Injection quantity adjustment_04

Adjusting point B

Rack position R1(12.2)

Pump speed r/min 1100 1100 1100

Average injection quantity mm3/st. 132 126 138

Fixing the lever *

Boost pressure kPa 89.3 89.3

Boost pressure mmHg 670 670

Injection quantity adjustment_05

Adjusting point E

Rack position -

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 105 65 145

Fixing the lever *

Boost pressure kPa 0 0 0

Boost pressure mmHg 0 0 0

Boost compensator adjustment

Pump speed r/min 600 600 600

Rack position R2(R1-2. 6)

Boost pressure kPa 3.3 3.3 6.6

Boost pressure mmHg 25 25 50

Boost compensator adjustment_02

Pump speed r/min 600 600 600

Rack position R1(12.2)

Boost pressure kPa 76 76 76

Boost pressure mmHg 570 570 570

Timer adjustment

Pump speed r/min -

Advance angle deg. 1.5 1 2

Load 0/4

Remarks
Measure speed (beginning of operation).

Timer adjustment_02

Pump speed r/min -

Advance angle deg. 0 0 0

Load 4/4

Remarks
Measure the actual speed.

Timer adjustment_03

Pump speed r/min -

Advance angle deg. 0.5

Load 4/4

Remarks
Measure the actual speed.

Timer adjustment_04

Pump speed r/min -

Advance angle deg. 2.5 2 3

Load 4/4

Remarks
Measure the actual speed, stop

Test data Ex:

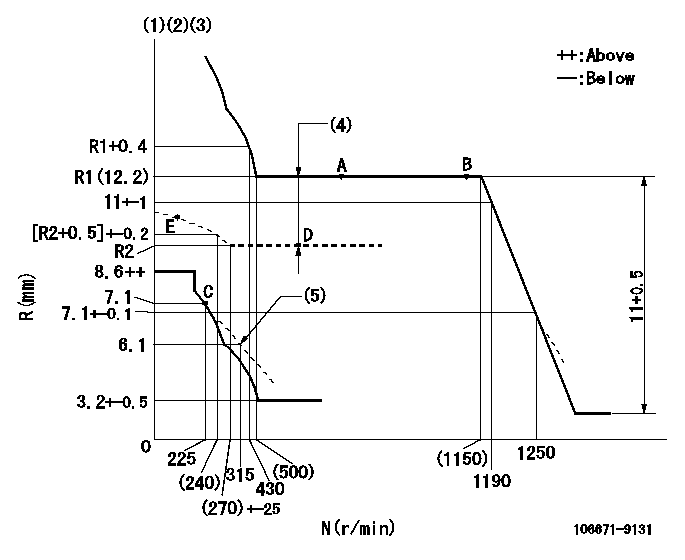

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Lever ratio: RT (2)Target shim dimension: TH (3)Tolerance for racks not indicated: +-0.05mm. (4)Boost compensator stroke: BCL (5)Damper spring setting
----------
RT=1 TH=2.1mm BCL=2.6+-0.1mm
----------

Speed control lever angle

F:Full speed
----------

----------
a=(18deg)+-5deg

0000000901

F:Full load I:Idle (1)Stopper bolt setting
----------

----------
a=31deg+-5deg b=33.5deg+-3deg

Stop lever angle

S:Stop the pump. (1)Rack position = aa (2)Lever free and normal position (3)Stopper bolt setting
----------
aa=3.5-0.5mm
----------
a=38deg+-5deg b=38deg+7deg-5deg

0000001501 MICRO SWITCH

Adjustment of the micro-switch Adjust the bolt to obtain the following lever position when the micro-switch is ON. (1)Speed N1 (2)Rack position Ra
----------
N1=325r/min Ra=6.8+-0.1mm
----------

Timing setting

(1)Pump vertical direction (2)Coupling's key groove position at No 1 cylinder's beginning of injection (3)B.T.D.C.: aa (4)-
----------
aa=14deg
----------
a=(6deg)
