106671-8290 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1066718290 220006550a

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

ZEXEL 106671-8290 1066718290

HINO 220006550A 220006550a

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 106671-8290 zexel genuine, new aftermarket engine parts with delivery

Cross reference number

ZEXEL 106671-8290 1066718290

HINO 220006550A 220006550a

Zexel num

Bosch num

Firm num

Name

106671-8290
106671-8294

220006550A HINO

INJECTION-PUMP ASSEMBLY
K13D *

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 8-3-600

Overflow valve 134424-1420

Overflow valve opening pressure kPa 162 147 177

Overflow valve opening pressure kgf/cm2 1.65 1.5 1.8

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Left L

Injection timing adjustment

Direction of rotation (viewed from drive side)
Left L

Injection order 1-4-2-6- 3-5

Pre-stroke mm 4.6 4.54 4.66

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-4 deg. 60 59.75 60.25

Difference between angles 2
Cyl.1-2 deg. 120 119.75 120.25

Difference between angles 3
Cal 1-6 deg. 180 179.75 180.25

Difference between angles 4
Cal 1-3 deg. 240 239.75 240.25

Difference between angles 5
Cal 1-5 deg. 300 299.75 300.25

Injection quantity adjustment

Adjusting point A

Rack position 7.2

Pump speed r/min 500 500 500

Average injection quantity mm3/st. 145.1 142.1 148.1

Fixing the lever *

Injection quantity adjustment_02

Adjusting point B

Rack position 7.7

Pump speed r/min 700 700 700

Average injection quantity mm3/st. 158.4 156.4 160.4

Max. variation between cylinders % 0 -2 2

Basic *

Fixing the lever *

Injection quantity adjustment_03

Adjusting point C

Rack position 7.8

Pump speed r/min 1075 1075 1075

Average injection quantity mm3/st. 162.8 159.8 165.8

Fixing the lever *

Injection quantity adjustment_04

Adjusting point D

Rack position 3.7+-0.5

Pump speed r/min 225 225 225

Average injection quantity mm3/st. 8.7 5.7 11.7

Max. variation between cylinders % 0 -15 15

Fixing the rack *

Injection quantity adjustment_05

Adjusting point F

Rack position -

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 160 160 180

Fixing the lever *

Remarks
After startup boost setting

Timer adjustment

Pump speed r/min 695--

Advance angle deg. 0 0 0

Load 1/4

Remarks
Start

Timer adjustment_02

Pump speed r/min 645

Advance angle deg. 0.3

Load 1/4

Timer adjustment_03

Pump speed r/min 800

Advance angle deg. 1 0.7 1.3

Load 4/4

Timer adjustment_04

Pump speed r/min 860

Advance angle deg. 1 0.7 1.3

Load 3/4

Timer adjustment_05

Pump speed r/min 1075

Advance angle deg. 5.5 5.2 5.8

Load 4/4

Remarks
Finish

Test data Ex:

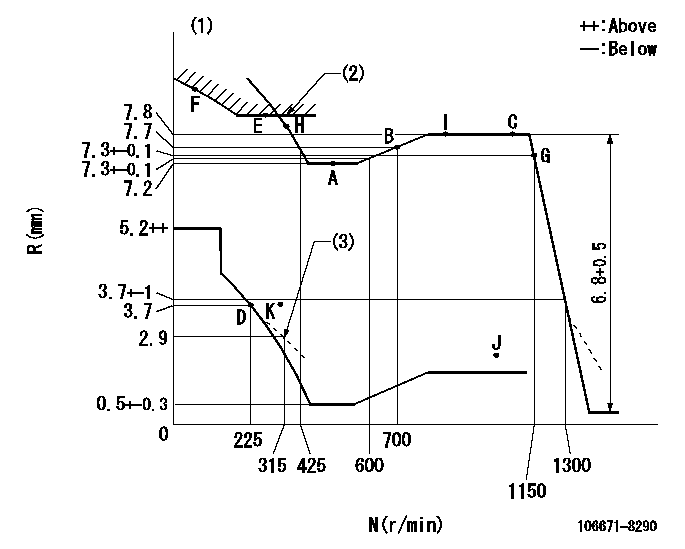

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Tolerance for racks not indicated: +-0.05mm. (2)Excess fuel setting for starting: SXL (N = N1) (3)Damper spring setting
----------
SXL=8.2+-0.1mm N1=300r/min
----------

Speed control lever angle

F:Full speed
----------

----------
a=(12deg)+-5deg

0000000901

F:Full load I:Idle (1)Use the hole at R = aa (2)Stopper bolt setting
----------
aa=50mm
----------
a=16deg+-5deg b=36deg+-3deg

Stop lever angle

N:Pump normal S:Stop the pump.
----------

----------
a=15deg+-5deg b=64deg+-5deg

0000001501 RACK SENSOR

(VR) measurement voltage (I) Part number of the control unit (G) Apply red paint. (H): End surface of the pump 1. Rack limit adjustment (1)Mount the joint (B). (2)Select the shim (D) so that the rack limit's rack position is obtained at that time. (3)Install the rod (E) to the block (C). The distance between the pump end face and the rod (E) at rack limit must be L. 2. Rack sensor adjustment (-0020) (1)Screw in the bobbin (A) until it contacts the joint (B). (2)Fix the speed control lever at the full side. (3)Set at speed N. (4)Adjust the depth that the bobbin (A) is screwed in so that the control unit's rack sensor output voltage is VR+-0.01 (V), then tighten the nut (F). (If equipped with a boost compensator, perform with boost pressure applied.) (5)Adjust the bobbin (A) so that the rack sensor's output voltage is VR+-0.01. (6)Apply G at two places. Connecting part between the joint (B) and the nut (F) Connecting part between the joint (B) and the end surface of the pump (H)
----------
L=38-0.2mm N=900r/min Ra=7.8mm
----------

Timing setting

(1)Pump vertical direction (2)Coupling's key groove position at No 1 cylinder's beginning of injection (3)- (4)-
----------

----------
a=(3deg)
